Receiver interface for centralized expansion up to 1.5 m

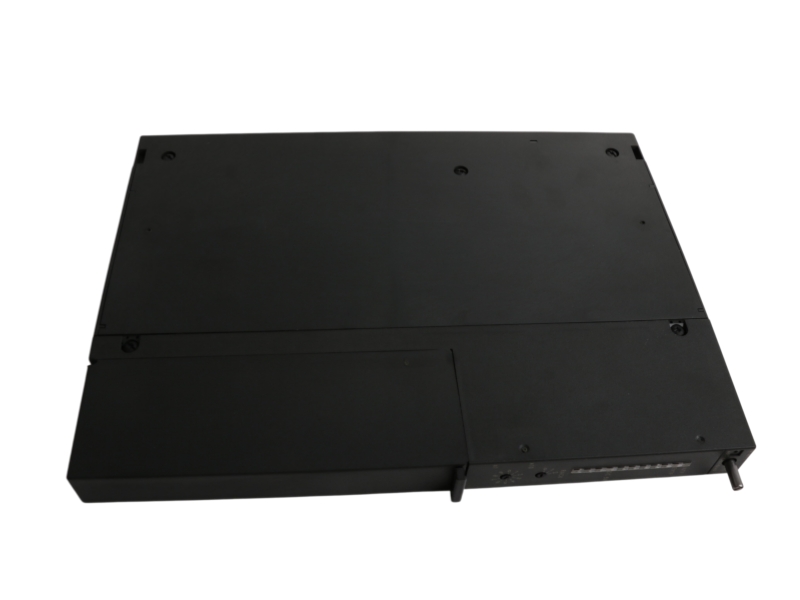

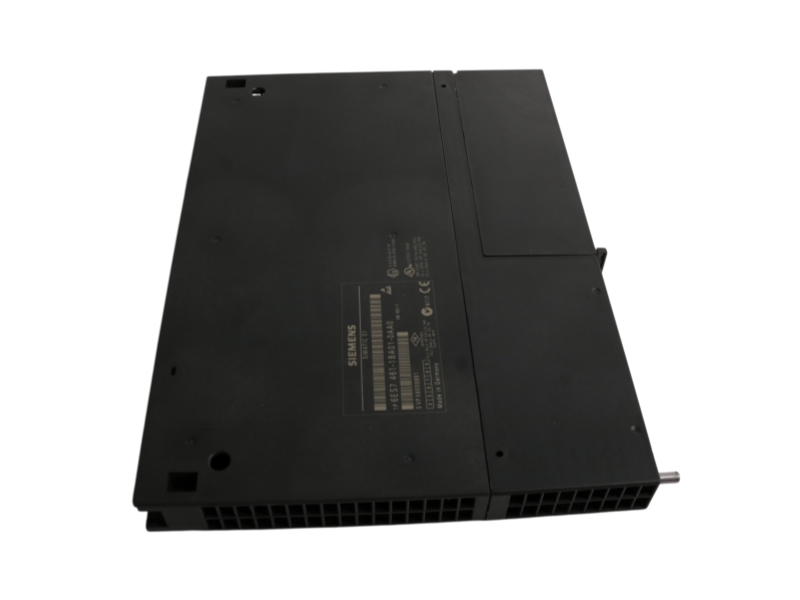

The Siemens 6ES7461-1BA01-0AA0 is a SIMATIC S7-400 IM 461-1 receiver interface module for centralized expansion over short distances. It receives P-bus data, supplies 5 V power to modules in the expansion rack, and is used only with an IM 460-1 sender module. The complete rack, cable, load and bus requirements must be checked before replacement.
| Manufacturer | Siemens |
| Complete Part Number | 6ES7461-1BA01-0AA0 |
| Product Type | SIMATIC S7-400 IM 461-1 Interface Module |
| Commercial Status | Lifecycle wording is not stated on the current Siemens product page |
| Series | SIMATIC S7-400 |
| Module designation | IM 461-1 receiver interface module |
| Order number | 6ES7461-1BA01-0AA0 |
| Expansion link | Centralized expansion, up to 1.5 m total |
| Bus transmission | P-bus only; no communication bus transfer |
| Required partner | IM 460-1 sender interface module |
| Expansion-rack supply | 5 V DC, maximum 5 A |
| Input current | 120 mA maximum from 5 V DC backplane bus |
| Power loss | 600 mW maximum |
| Compatible racks | UR1, UR2, ER1 and ER2 expansion racks |
| Connection | One input for a 468-3 connecting cable |
| Indicators | Three LEDs for fault indication |
| Dimensions | 25 x 290 x 280 mm (W x H x D), current Siemens SiePortal listing |
| Approximate weight | 610 g |
| System context | SIMATIC S7-400 centralized expansion racks |
| Functional role | Receives P-bus data from an IM 460-1 and supplies the expansion unit |
| Distance limit | Maximum 1.5 m total between the first and last interface module |
| Rack use | Plugs into UR1, UR2, ER1 or ER2 expansion racks |
| Power planning | Total 5 V load in the expansion rack must not exceed 5 A |
| Maintenance use | Exact-model replacement or strategic spare for installed IM 461-1 links |
Compatibility must be confirmed against the installed hardware, wiring, accessories and engineering configuration. A similar family designation does not establish direct interchangeability.
The current Siemens SiePortal product page confirms the exact article number and technical data but does not display a lifecycle label for 6ES7461-1BA01-0AA0. No Active, PM300, phase-out or discontinued status is inferred. Procurement teams should request current lifecycle confirmation for this exact suffix when status is contractually important.
