Eight isolated 16-bit input channels for voltage, current and thermocouple signal acquisition in SIMATIC S7-400 systems.

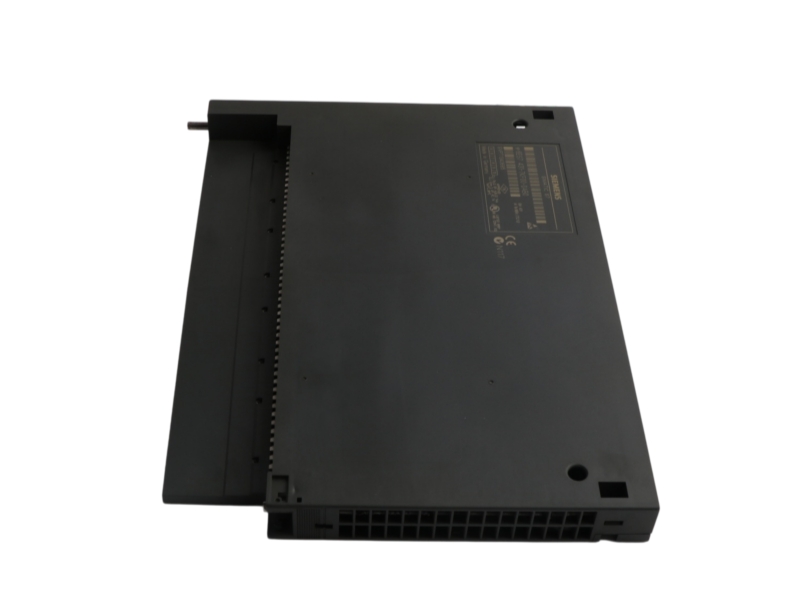

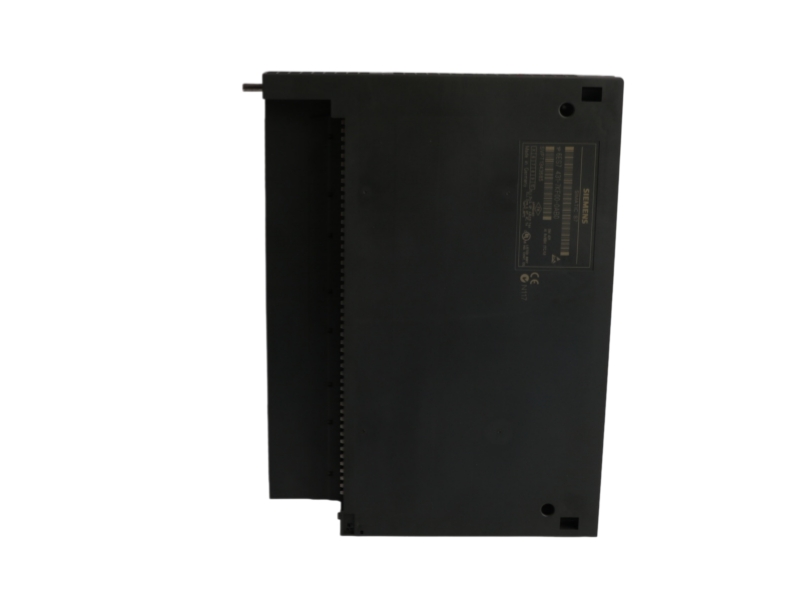

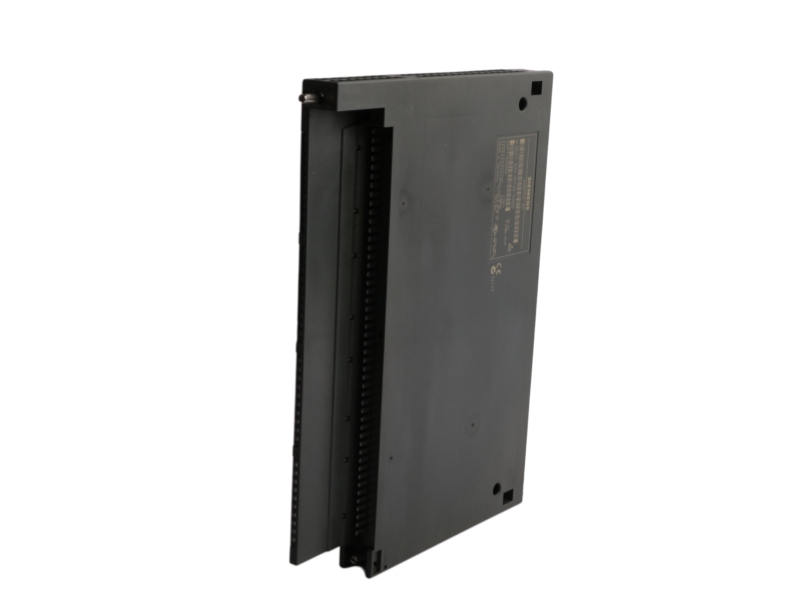

Siemens 6ES7431-7KF00-0AB0 is the SIMATIC S7-400 SM 431 analog input module for eight voltage, current or thermocouple signals. Siemens specifies 16-bit resolution, galvanic isolation with individual channel rooting, diagnostics, hardware alarms and a 20 ms conversion time. The module draws up to 1,200 mA from the 5 V DC backplane bus and has typical power loss of 4.6 W. Procurement should verify the complete order number, measurement type and range, thermocouple compensation method, front connector, wiring, channel parameters, rack assignment and STEP 7 hardware configuration before replacement. Similar SM 431 variants support different sensor types and must not be substituted by appearance alone.
| Commercial Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM300: Active Product; product phase-out since 2025-10-01 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7431-7KF00-0AB0 |
| Product Type | SIMATIC S7-400 SM 431 analog input module |
| Analog Inputs | 8 voltage/current inputs |
| Resolution | 16 bit |
| Supported Signals | Voltage, current and thermocouple |
| Electrical Isolation | Isolated with single rooting |
| Diagnostics / Hardware Alarm | Supported / supported |
| Conversion Time | 20 ms |
| Backplane Current | 5 V DC, max. 1,200 mA |
| Power Loss | Typically 4.6 W |
| Front Connector | 6ES7431-7KF00-6AA0, 48-pole screw contacts |
| Net Weight | 1.006 kg |
| Country of Origin | GERMANY |
| Application Context | Required Review |
|---|---|
| Process signal acquisition | Confirm the selected voltage or current range and transmitter loop design. |
| Thermocouple temperature measurement | Verify thermocouple type and thermocouple compensation arrangement. |
| S7-400 rack maintenance | Match rack position, module parameters, diagnostics and interrupt assignment. |
| Legacy spare planning | Retain STEP 7 configuration, wiring records, label photos and front connector evidence. |
Siemens lists 6ES7431-7KF00-0AB0 as PM300: Active Product and states product phase-out since 2025-10-01. This wording is retained without relabelling the module Discontinued.
It is a SIMATIC S7-400 SM 431 analog input module for eight voltage, current or thermocouple signals.
Siemens specifies eight analog inputs with 16-bit resolution.
The module supports voltage, current and thermocouple measurement. RTD and resistance measurement are not specified for this order code.
Siemens lists PM300: Active Product and states product phase-out since 2025-10-01; this page does not convert that wording into Discontinued.
Siemens identifies 6ES7431-7KF00-6AA0, a 48-pole screw-contact connector.
Verify the exact suffix, signal type and range, thermocouple compensation, connector and wiring, rack position, channel parameters, alarms and STEP 7 configuration.
