SIMATIC S7-400 SM 431 | Isolated universal analog input module with 14-bit resolution

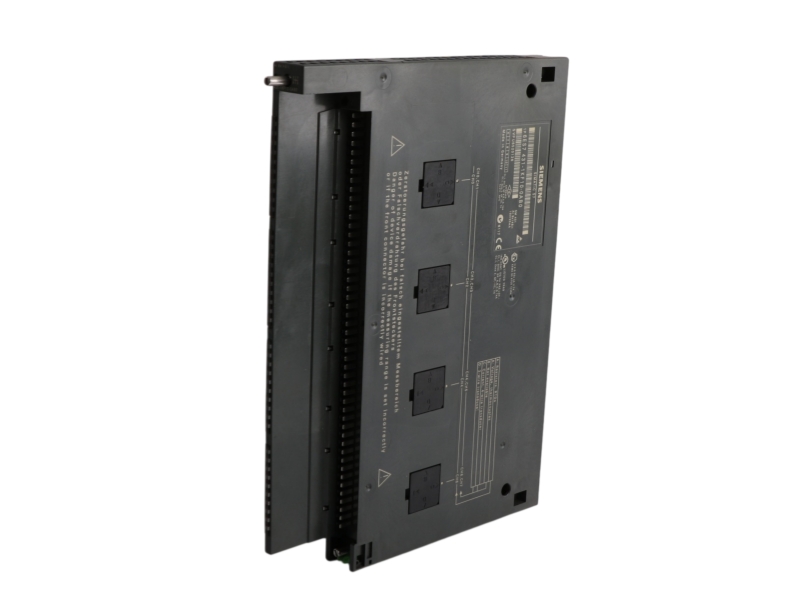

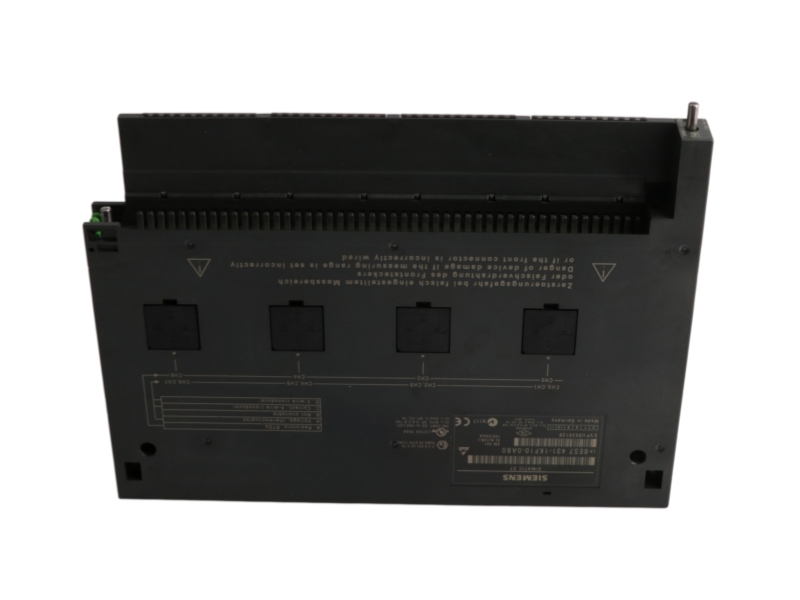

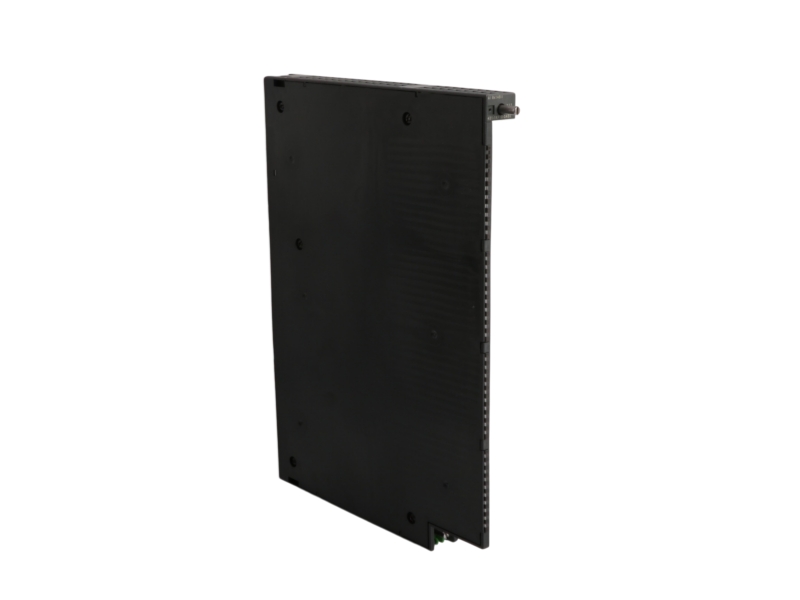

The Siemens 6ES7431-1KF10-0AB0 is a SIMATIC S7-400 SM 431 universal analog input module designed for mixed industrial measurement tasks. Siemens documents eight isolated voltage or current inputs and four resistance-measurement channels, with 14-bit resolution and support for voltage, current, resistance, thermocouple and Pt100 signals. A 24 V DC load supply is required when two-wire transmitters are used. The module is intended for centralized process measurement in an S7-400 rack. Before procurement, verify the complete suffix, sensor type, measuring range, cold-junction method, two-wire transmitter load, channel wiring, front connector, rack power budget and STEP 7 parameter assignment.
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM300: Active Product; product phase-out starts 01.10.2025 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Notice: Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
| Complete Part Number | 6ES7431-1KF10-0AB0 |
| Product Type | SM 431 universal analog input module |
| Product Family | SIMATIC S7-400 SM 431 |
| Voltage or Current Inputs | 8 |
| Resistance Measurement Inputs | 4 |
| Channel Isolation | Isolated inputs |
| Resolution | 14 bit |
| Supported Measurements | Voltage, current, resistance, thermocouple and Pt100 |
| Load Voltage | 24 V DC when two-wire transmitters are used |
| Load Current | Maximum 200 mA with eight fully controlled two-wire transmitters |
| Backplane Current | Maximum 600 mA at 5 V DC |
| Power Loss | Typical 3.5 W |
| Net Weight | 0.788 kg |
| EAN | 4025515128984 |
| Country of Origin | Germany |
| System Fit | SIMATIC S7-400 central racks with compatible hardware catalog, front connector and parameter assignment |
| System Role | Acquires universal analog process signals including thermocouple and Pt100 measurements |
| Typical Applications | Temperature acquisition, process instrumentation, machine monitoring, utility measurement and maintenance replacement |
| Critical Checks | Complete suffix, 14-bit variant, sensor type, range, cold-junction method, two-wire transmitter supply, channel wiring, front connector, rack current and STEP 7 parameters |
Confirm the exact 6ES7431-1KF10-0AB0 order code and its 14-bit universal input configuration. Review sensor types, measuring ranges, thermocouple compensation, Pt100 wiring, two-wire transmitter load, rack current, front connector and STEP 7 hardware parameters. The 1KF00 variant has different resolution and measurement capabilities and must not be treated as a direct replacement without engineering review.
Siemens lists the exact 6ES7431-1KF10-0AB0 as PM300: Active Product and states that product phase-out starts 01.10.2025. This is not a Discontinued classification. Maintenance planning should separately verify signal types, wiring, supply requirements and project parameters for the installed S7-400 station.
