20-pole spring-loaded front connector for wiring compatible SIMATIC S7-300 signal modules.

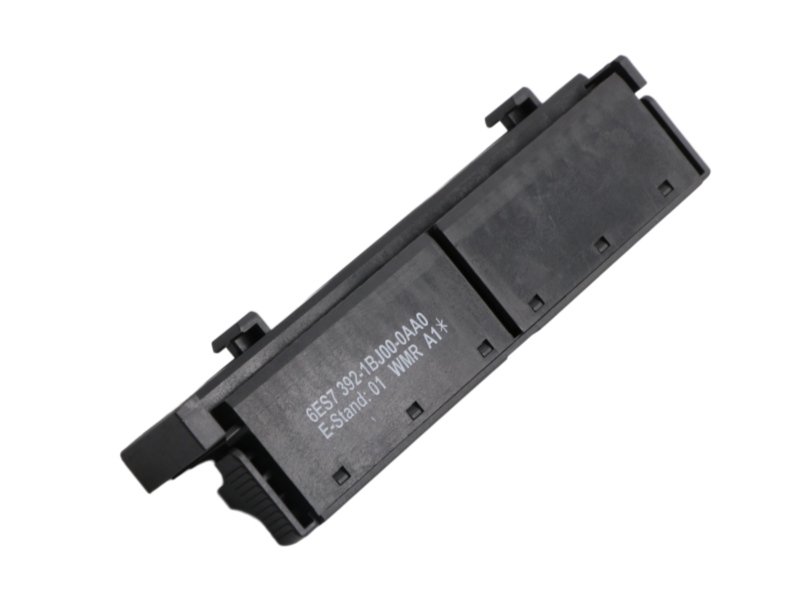

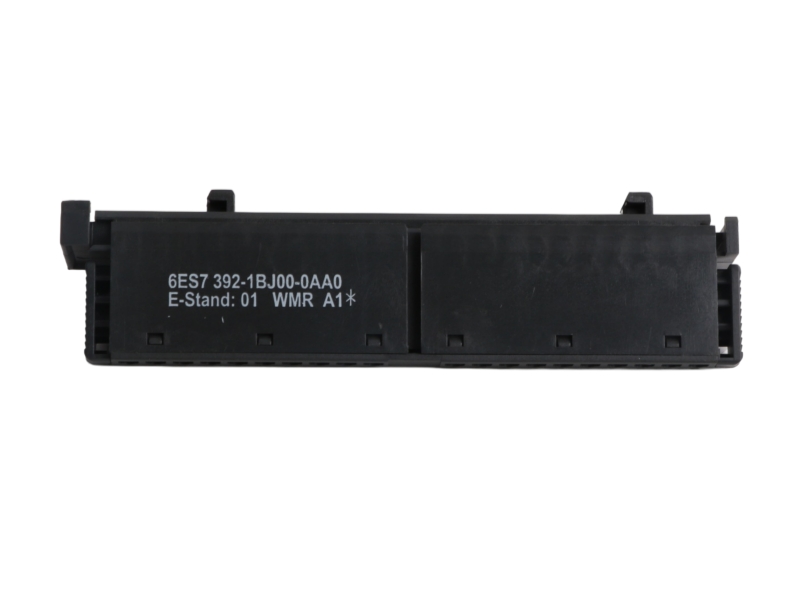

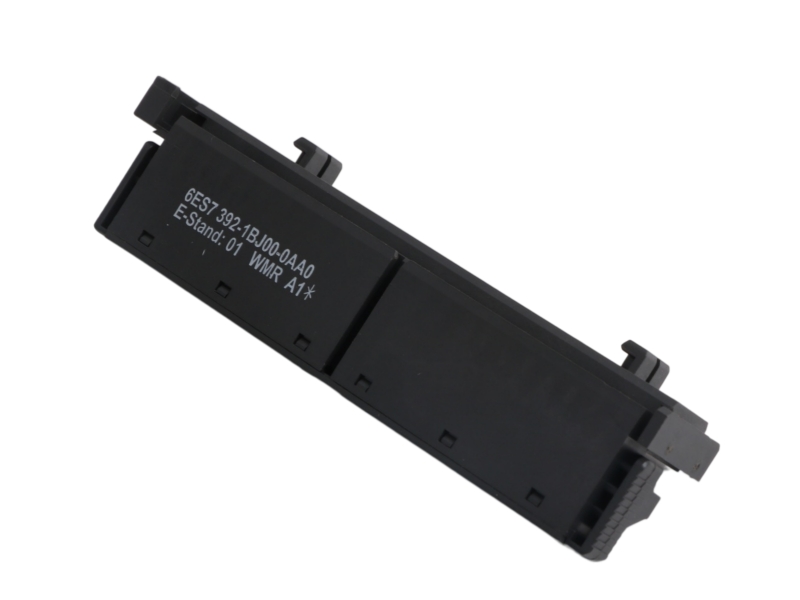

Siemens 6ES7392-1BJ00-0AA0 is a front connector for compatible SIMATIC S7-300 signal modules. The connector provides 20 spring-loaded contacts for field wiring and accepts one conductor per terminal, or a permitted combination of two conductors in a shared ferrule. Siemens specifies a conductor range of 0.25 to 1.5 mm² and a 6 mm stripping length. Its compact housing measures 23 mm wide, 131 mm high and 36 mm deep. Procurement teams should verify the complete order code, 20-pole arrangement, spring-terminal design and installed signal module before ordering.
| Item | Status |
|---|---|
| Product condition | Original new |
| Availability | In stock |
| Official lifecycle | PM400: Announcement of product phase-out; product phase-out since 2023-10-01 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping available |
Condition, availability and warranty are Stockoems commercial information and are not manufacturer commitments.
| Parameter | Verified value |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6ES7392-1BJ00-0AA0 |
| Product type | SIMATIC S7-300 front connector |
| Contact arrangement | 20-pole |
| Connection method | Spring-loaded terminals |
| Conductor cross section | 0.25–1.5 mm²; AWG 24–16 |
| Stripped length | 6 mm |
| Dimensions (W × H × D) | 23 × 131 × 36 mm |
| Approximate weight | 61 g |
For receiving inspection, compare the complete order code, 20-pole contact arrangement, spring-terminal openings, housing condition and connector profile with the purchase requirement. Request clear overall and label photographs before shipment when traceability is required.
Match the full part number 6ES7392-1BJ00-0AA0, 20-pole layout and spring-terminal technology. Confirm the installed S7-300 signal module, conductor size and cabinet wiring diagram. Similar-looking front connectors may use a different pole count or terminal technology and must not be treated as direct replacements.
Siemens identifies 6ES7392-1BJ00-0AA0 as PM400: Announcement of product phase-out, with product phase-out since 2023-10-01. This official wording is retained and is not presented as “Discontinued.”
It is a Siemens SIMATIC S7-300 20-pole front connector for compatible signal modules.
The connector uses spring-loaded terminals for field wiring.
Siemens specifies 0.25 to 1.5 mm² conductors, corresponding to AWG 24 to 16.
Confirm the complete order code, 20-pole arrangement, terminal technology and installed signal module.
Siemens states “PM400: Announcement of product phase-out” with product phase-out since 2023-10-01; it is not labeled here as discontinued.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Structured verification, documentation, packaging and after-sales communication for 6ES7392-1BJ00-0AA0 procurement.
| Checkpoint | What we review |
|---|---|
| 1. Model and suffix verification | The complete Siemens order code and all suffix characters are checked against the purchase request. |
| 2. Condition confirmation | Commercial condition is documented before shipment. |
| 3. Technical compatibility review | Complete part number, electrical or mechanical configuration and installed hardware are compared with the application. |
| 4. Product and label photo confirmation | Overall and label photographs can be reviewed for traceability when required. |
A qualified supplier should verify the full manufacturer part number, provide clear condition and label evidence, separate commercial claims from manufacturer facts, explain warranty and return terms in writing, and review compatibility before accepting an order. Buyers should also check whether the quotation identifies the exact suffix, packing unit, destination requirements and documentation responsibilities.
Request clear overall photos, readable product-label photos, package information, a written condition statement, the complete order code, warranty terms and the planned shipping documents. For installed-system work, provide the current module and wiring details for comparison.
Risk signals include a shortened or altered part number, copied specifications from a similar model, unclear condition wording, refusal to provide label evidence, unsupported lifecycle claims, unexplained stock quantities, vague warranty language, payment pressure and no documented return process.
Front connectors with similar appearances can differ in pole count, terminal technology and module fit. The complete suffix must match the installed S7-300 signal module and wiring design.
