Four independent continuous control loops for documented SIMATIC S7-300 temperature-control applications.
Siemens identifies the complete order number 6ES7355-2CH00-0AE0 as the FM 355-2 C temperature controller module with four channels. The C version is the continuous-action controller with analog outputs; the separately ordered S version uses step and pulse digital outputs.
The module is intended for closed-loop temperature control in SIMATIC S7-300 systems. Exact suffix, sensor type, signal ranges, front connectors and original STEP 7 project must be checked before replacement.
| Complete Siemens order number | 6ES7355-2CH00-0AE0 |
| Official device designation | FM 355-2 C temperature controller module, 4 channels |
| Official exact-model evidence | Siemens FM 355-2 operating instructions and Catalog ST 70 |
| Lifecycle statement | PM300: Active Product; product phase-out since 01.10.2023 |
| Manufacturer | Siemens |
| Product family | SIMATIC S7-300 / FM 355-2 |
| Controller version | FM 355-2 C; continuous-action controller |
| Closed-loop controllers | 4 |
| Integrated I/O | 4 AI, 8 DI and 4 AO |
| Temperature sensors | Thermocouples B, E, J, K, R, S; Pt100 |
| Substitute values | Parameterizable |
| Required front connectors | 2 × 20-pin |
| Dimensions | 80 × 125 × 120 mm |
| Approximate weight | 470 g |

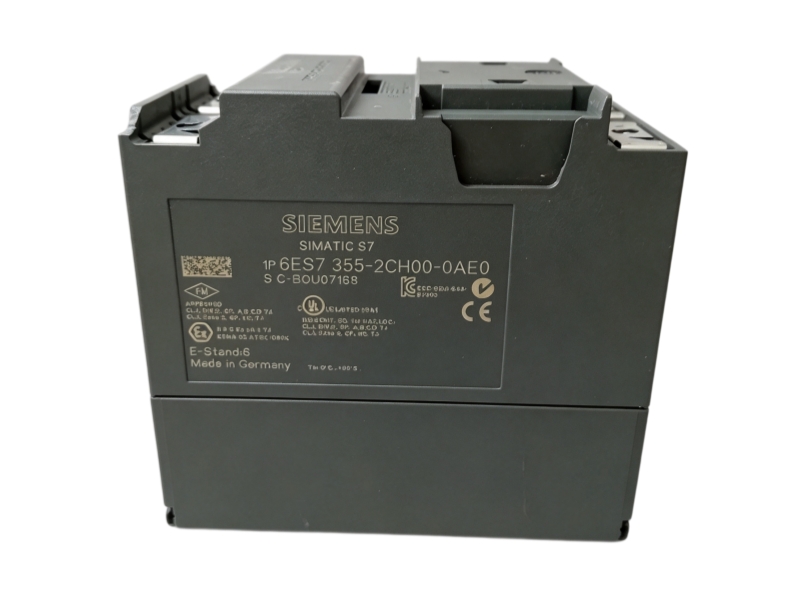

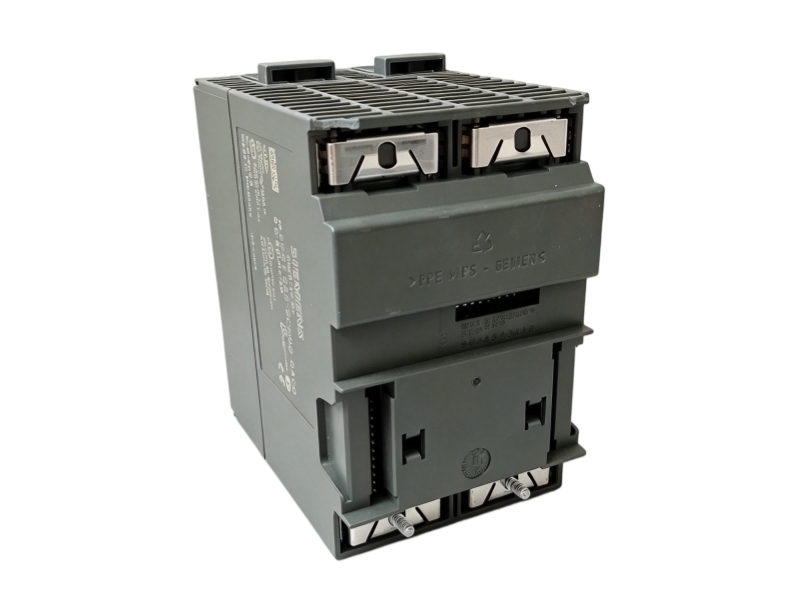

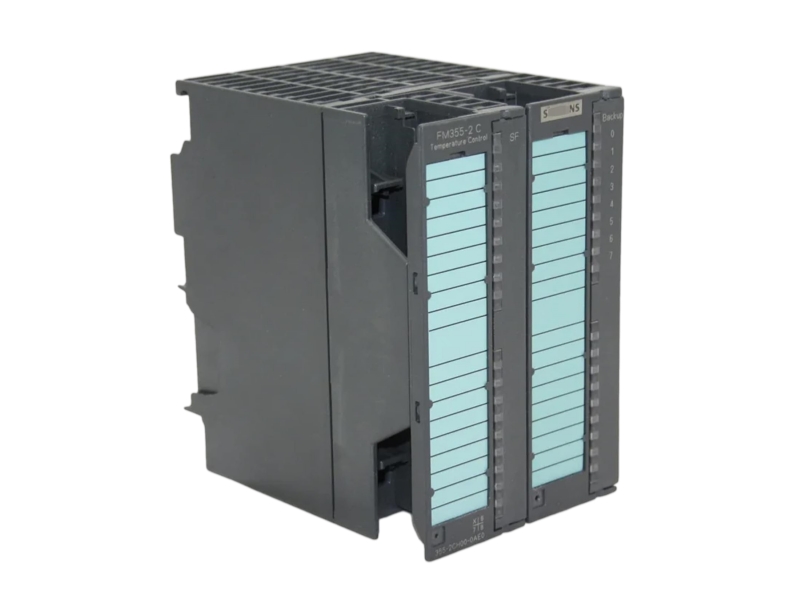

Place three current photographs below to verify the complete order number, connection area and physical condition.
 |
 |
 |
| Application | Engineering Relevance |
|---|---|
| Multi-zone temperature regulation | Controls four independent continuous process loops from one S7-300 function module. |
| Heater and thermal process control | Accepts documented thermocouple or Pt100 measurement arrangements and drives analog final-control elements. |
| Installed-base maintenance | Supports exact-model replacement when connectors, project parameters and field signals match. |
| Obsolescence planning | Provides the installed reference needed to plan validated migration or strategic spares. |
Siemens identifies 6ES7355-2CH00-0AE0 as PM300: Active Product and records product phase-out since 01.10.2023. Use this wording as a lifecycle reference; it does not establish interchangeability with any other FM 355-2 order number.
It is the FM 355-2 C four-channel continuous temperature controller module for SIMATIC S7-300.
Siemens specifies four closed-loop controllers.
The official data covers thermocouples B, E, J, K, R and S plus Pt100 resistance thermometers.
No. The S version uses step and pulse digital outputs, while this C version has analog outputs.
Check the exact suffix, front connectors, sensor types, signal ranges, parameters and STEP 7 project.
Provide quantity, condition, destination and clear photos of the label, connectors and complete module.
Send the exact part number, quantity, destination and required condition for availability, compatibility and warranty review.
A structured review for controller identity, sensor configuration, connector evidence, commercial terms and protected delivery.
Exact Identity AuditWe compare the complete 6ES7355-2CH00-0AE0 marking, device designation and visible hardware evidence. |
Condition EvidenceReadable label, connector, enclosure and packaging photographs support purchasing approval. |
Protected DispatchPacking, shipment documents and trackable delivery are coordinated for industrial hardware. |
| 01 Identify | 02 Compare | 03 Document | 04 Dispatch |
|---|---|---|---|
| Order number and label | Project, interface and wiring fit | Offer, photos and terms | Packing and tracking |
| Review Point | What We Check | Purchasing Value |
|---|---|---|
| Exact identity | Complete 6ES7355-2CH00-0AE0 label and FM 355-2 C version | Separates the continuous C module from the S version |
| Control configuration | Four loops, sensor types and configured ranges | Keeps procurement aligned with the process design |
| Connection evidence | Both 20-pin connectors and terminal wiring | Highlights physical and wiring compatibility |
| Condition | Housing, contacts, label and packaging | Provides evidence before purchasing approval |
| Commercial terms | Quantity, condition, lead time and destination | Produces a clearer written offer |
| Shipment | Protective packing, documents and tracking | Supports traceable international delivery |
Our commercial review can compare visible identity and supplied project information, while final engineering approval remains with the plant, machine builder or system integrator.
Before installation, confirm the exact suffix, electrical connections, project configuration and commissioning procedure against official Siemens documentation and the installed system records.
| Pre-shipment evidence | Available label, condition and packaging photographs can be supplied for review. |
| Protective packing | Components are protected against movement, impact and contamination in transit. |
| Worldwide shipping | Carrier and routing options are reviewed for the destination and applicable restrictions. |
| Warranty | Eligible products carry a 12-month limited warranty unless different written terms are agreed. |
| After-sales reference | Keep the order reference, label photographs and fault description for support communication. |
Send the exact part number, quantity, destination and required condition for availability, compatibility and warranty review.
