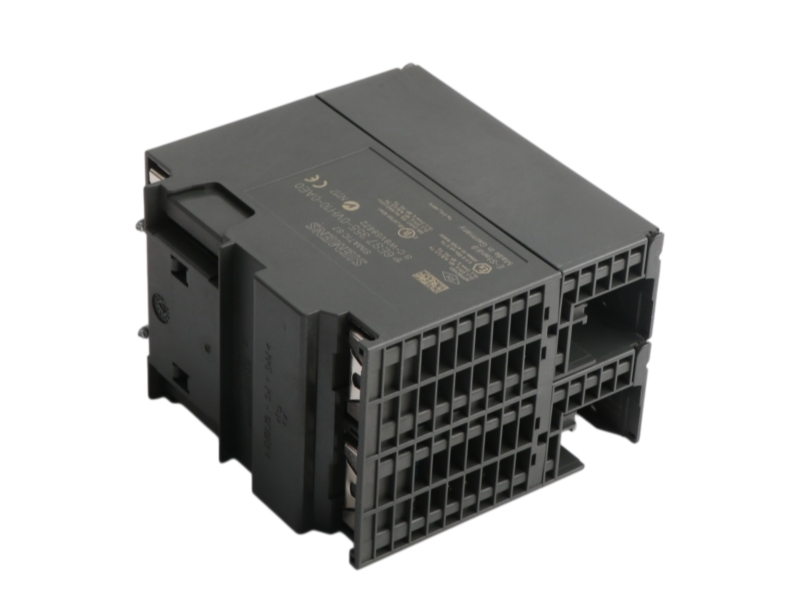

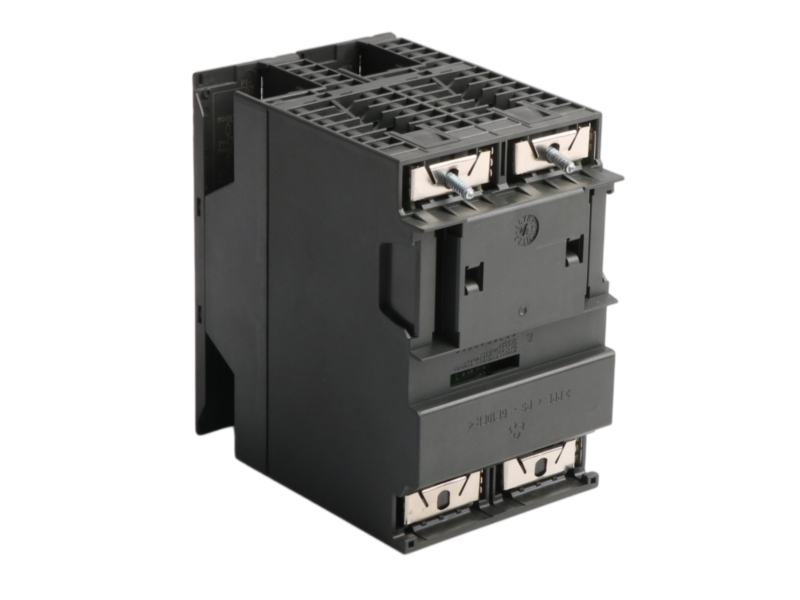

The Siemens 6ES7355-0VH10-0AE0 is a SIMATIC S7-300 FM 355 C continuous closed-loop control module with four controller channels. The official Siemens data identifies four analog inputs, eight digital inputs and four analog outputs, powered from 24 V DC. It accepts voltage, current, thermocouple and resistance-thermometer input ranges and is configured with the FM 355 parameterization package in a STEP 7 environment. Siemens places the product in phase-out. Procurement and replacement work should verify the exact suffix, module version, front connector, sensor types, signal ranges, analog-output wiring, STEP 7 project, parameter data and installed firmware.
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM400: Phase Out Started; product phase-out since 01.10.2023 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Parameter | Official Specification |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7355-0VH10-0AE0 |
| Product Type | SIMATIC S7-300 FM 355 C continuous control module |
| Controller Channels | 4 |
| Analog Inputs | 4 |
| Digital Inputs | 8 |
| Analog Outputs | 4 |
| Load Supply | 24 V DC |
| Permissible DC Supply Range | 20.4 to 28.8 V |
| Digital Input Standard | IEC 61131 Type 2 |
| Analog Input Types | Voltage, current, thermocouple and resistance thermometer |
| Typical Power Loss | 6.5 W |
| Maximum Power Loss | 7.8 W |
| Country of Origin | Germany |
| Application | Engineering Relevance |
|---|---|
| Continuous process control | Four closed-loop channels regulate analog process variables in S7-300 systems |
| Temperature and process loops | Supports officially documented voltage, current, thermocouple and resistance-sensor inputs |
| Machine automation | Combines digital status inputs with continuous analog outputs |
| Installed FM 355 C maintenance | Requires restoration of parameter data, project settings and verified wiring |
Siemens lists 6ES7355-0VH10-0AE0 as PM400: Phase Out Started and gives the product phase-out date as 01.10.2023. This status must not be rewritten as Discontinued. Installed-system replacements should retain verified parameter data and should be checked against the exact module version and project configuration.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Verification, inspection, documentation and logistics support for SIMATIC S7-300 FM controller modules.
| Step | Service Item | What We Check |
|---|---|---|
| 1 | Model verification | Complete order number, FM 355 C designation and readable module label |
| 2 | Connector inspection | Front connector area, analog and digital terminals and enclosure condition |
| 3 | Compatibility review | Signal ranges, sensors, STEP 7 project, parameter data and firmware |
| 4 | Photo documentation | Front, connector, side label, version, seals and packaging photographs |
| 5 | Protective packing | Connector protection, anti-static handling and impact-resistant packing |
| 6 | Worldwide logistics | Carrier options, tracking and commercial shipping documents |
Request clear evidence of enclosure, interfaces, order-code label and package condition.
Commercial condition, agreed warranty terms and shipping information are recorded for review.
Our service team coordinates evidence review and post-shipment questions under agreed terms.
Provide the complete part number, required quantity, destination country, installed-system details and clear product-label photos.
