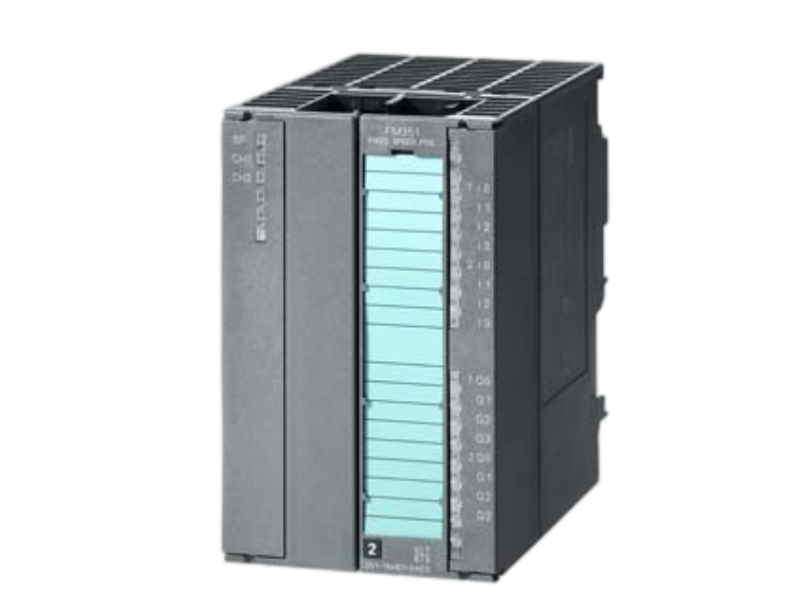

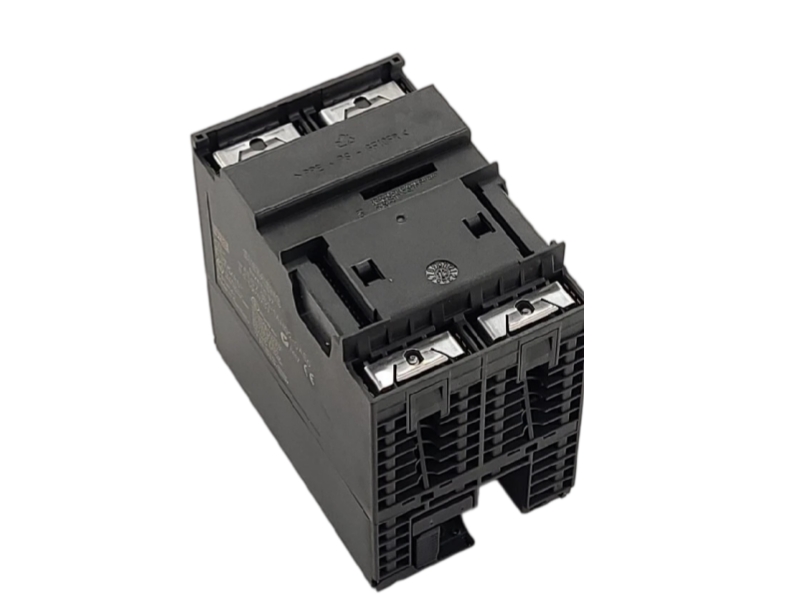

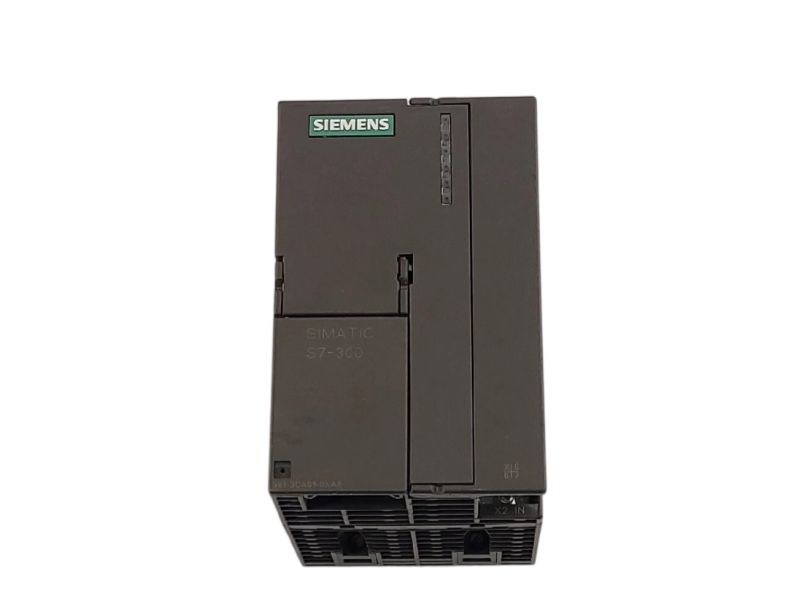

FM 351 module for rapid and creep traverse drives with incremental or SSI encoder feedback
Siemens 6ES7351-1AH02-0AE0 is the SIMATIC S7-300 FM 351 positioning module for rapid and creep traverse drives. Siemens specifies eight 24 V DC digital inputs, eight 24 V DC digital outputs and encoder interfaces for symmetrical or asymmetrical incremental encoders and SSI absolute encoders. The module supports reference cams, reversing cams, actual-value setting and positioning start or stop functions. It fits controlled positioning tasks in machinery using S7-300 hardware. Before replacement, verify the full suffix, front connector, encoder type, signal levels, axis mechanics, output loads, STEP 7 configuration, parameter data, firmware and commissioning backup.
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM400:Announcement of product phase-out |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
| Complete Part Number | 6ES7351-1AH02-0AE0 |
| Product Type | FM 351 positioning module |
| Series | SIMATIC S7-300 |
| Drive Method | Rapid and creep traverse |
| Supply Voltage | 24 V DC; permissible range 20.4 to 28.8 V |
| Maximum Current Consumption | 350 mA |
| Backplane Bus Current | Maximum 150 mA at 5 V DC |
| Digital Inputs | 8 |
| Digital Outputs | 8 |
| Incremental Encoder Input | 5 V differential RS 422 up to 0.5 MHz; 24 V asymmetrical up to 50 kHz |
| Absolute Encoder Input | SSI, 13 or 25 bit, up to 1.5 MHz |
| Potential Separation | Digital inputs and digital outputs |
| Required Front Connector | 1 x 20-pin |
| Dimensions | 80 x 125 x 120 mm |
| Operating Temperature | 0 to 60 C |
| Approximate Weight | 550 g |
| Country of Origin | Germany |
| Official Lifecycle | PM400:Announcement of product phase-out |
| PLM Effective Date | Product phase-out since 2023-10-01 |
| System Fit | SIMATIC S7-300 installations requiring FM 351 positioning control. |
| Motion Role | Rapid and creep positioning for suitable bidirectional drive arrangements. |
| Encoder Use | Incremental encoders or SSI absolute encoders within documented signal limits. |
| Maintenance Use | Exact-model replacement after hardware, parameter and axis review. |
| Project Use | Requires verified STEP 7 hardware configuration, parameter DB and commissioning data. |
Siemens Industry Mall lists 6ES7351-1AH02-0AE0 as PM400:Announcement of product phase-out, effective from 2023-10-01. This wording is retained exactly and is not changed to Discontinued. Continued use or replacement requires the exact module suffix, encoder interface, front connector, parameter data and S7-300 project configuration to be verified.
It identifies the SIMATIC S7-300 FM 351 positioning module for rapid and creep traverse drives.
Siemens specifies eight digital inputs and eight digital outputs, all based on 24 V DC circuits.
The module supports symmetrical and asymmetrical incremental encoders plus SSI absolute encoders.
The official data sheet specifies one 20-pin front connector.
Siemens lists PM400:Announcement of product phase-out, effective from 2023-10-01.
No. Encoder functions, hardware revision, parameter data and documented differences must be checked.
Yes. Request full-module, label, connector, indicator and packaging photographs.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
Documentation, axis configuration, condition evidence and order coordination for 6ES7351-1AH02-0AE0.
The complete order code, Siemens data, encoder selection, digital I/O and axis parameters are reviewed before a replacement decision.
Full-module, nameplate, front-connector, indicator and packaging photographs support identity and visible-condition checks.
Protective packaging, connector safeguards, included media, shipping documents and tracking are coordinated after order review.
| Model Verification | Check 6ES7351-1AH02-0AE0, revision, label and 20-pin connector photos. |
| Axis Review | Record drive direction, rapid and creep logic, travel limits and mechanical transmission data. |
| Encoder Review | Confirm incremental or SSI encoder type, signal level, telegram length and cable requirements. |
| I/O Review | Compare all eight inputs, eight outputs, supply wiring and output loads. |
| Commissioning Records | Preserve STEP 7 hardware data, parameter DB, machine data and commissioning backups. |
Provide the full suffix, quantity, destination and label photos.
Compare encoder, connector, I/O, axis mechanics and parameter backups.
Review visible condition, connector protection, packaging and delivery records.
