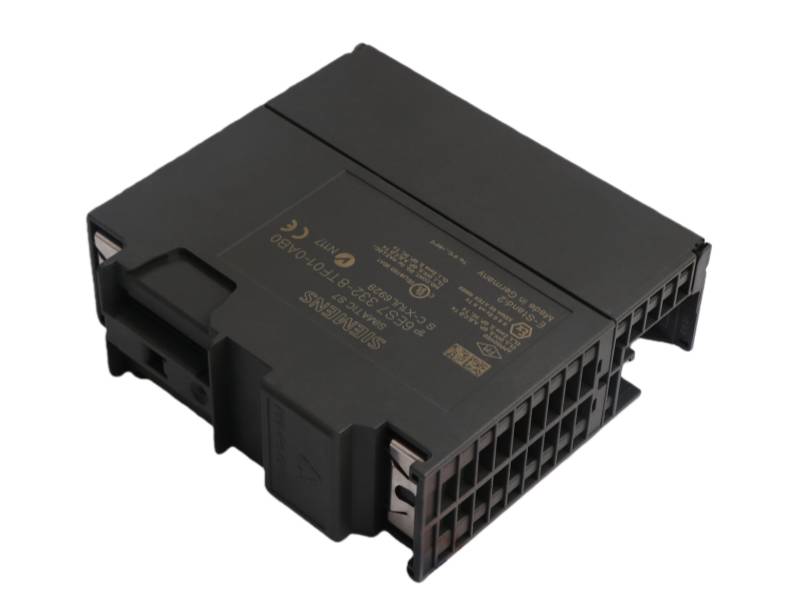

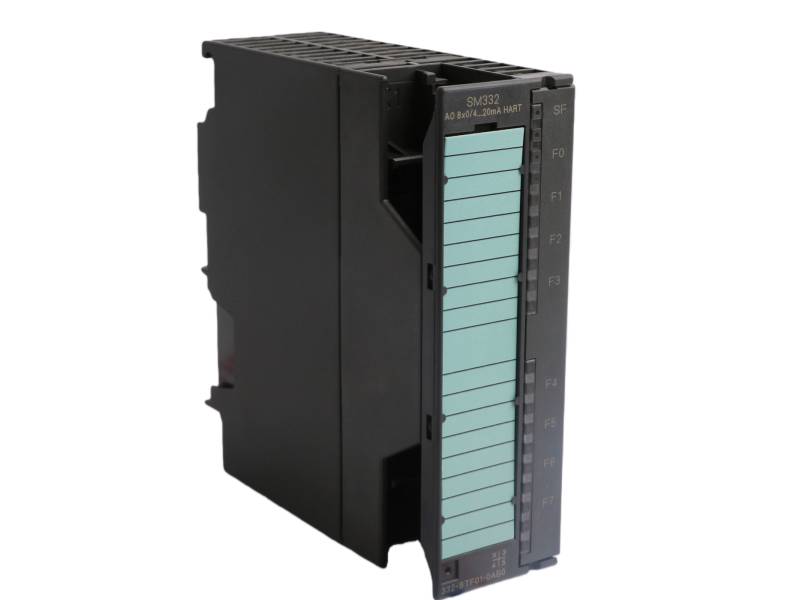

6ES7332-8TF01-0AB0 Overview

The Siemens 6ES7332-8TF01-0AB0 is an advanced 8-channel analog output module for ET200M distributed I/O systems. It provides high-precision 0/4-20 mA HART output signals and supports redundancy, local diagnostic buffering, and firmware updates. This module is essential for precise process control in demanding industrial automation environments.

Features and benefits

 Function: It is a specialized HART analog output module for ET200M distributed I/O stations.

Channels & Signal: Provides 8 high-precision analog output channels supporting standard 0/4-20 mA HART signals.

Advanced Diagnostics: Features a local diagnostic buffer with time-stamping for troubleshooting and monitoring.

System Reliability: Supports system redundancy and allows online firmware updates for enhanced uptime.

Technical Performance: Offers 16-bit resolution, fast settling times, and high accuracy for precise process control.

Industrial Design: Compact, 24V DC powered, with a 20-pin front connector and built-in diagnostic alarms.

FAQ

Q1: What is the function of the Siemens 6ES7332-8TF01-0AB0 module?

A1: It is an 8-channel HART analog output module designed for the ET200M distributed I/O system.

Q2: What type of output signals does this module support?

A2: It supports standard industrial analog signals, specifically 0-20 mA and 4-20 mA HART current outputs.

Q3: What are its key features for advanced diagnostics?

A3: It features a local diagnostic buffer with time-stamping for detailed fault analysis and system monitoring.

Q4: Does this module support system reliability features?

A4: Yes, it supports system redundancy and allows for online firmware updates to enhance operational uptime.

Q5: What is the module's power supply and physical connection?

A5: It operates on a 24V DC supply and uses a standard 20-pin front connector for wiring and installation.
