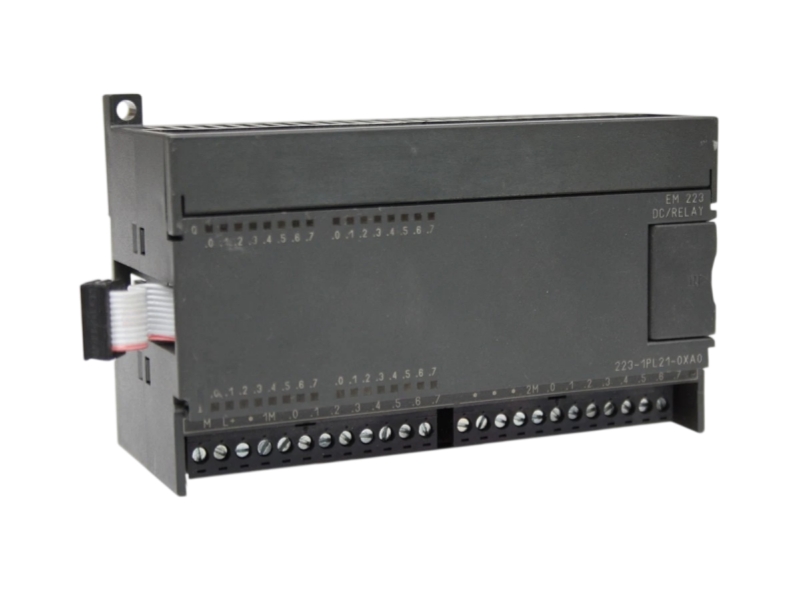

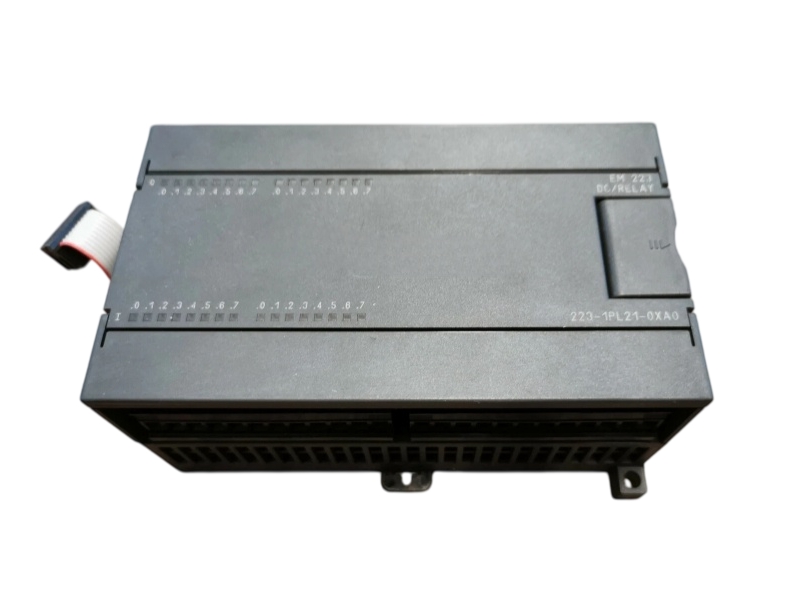

SIMATIC S7-200 EM 223 module provides 16 digital inputs and 16 relay outputs for distributed machine control.

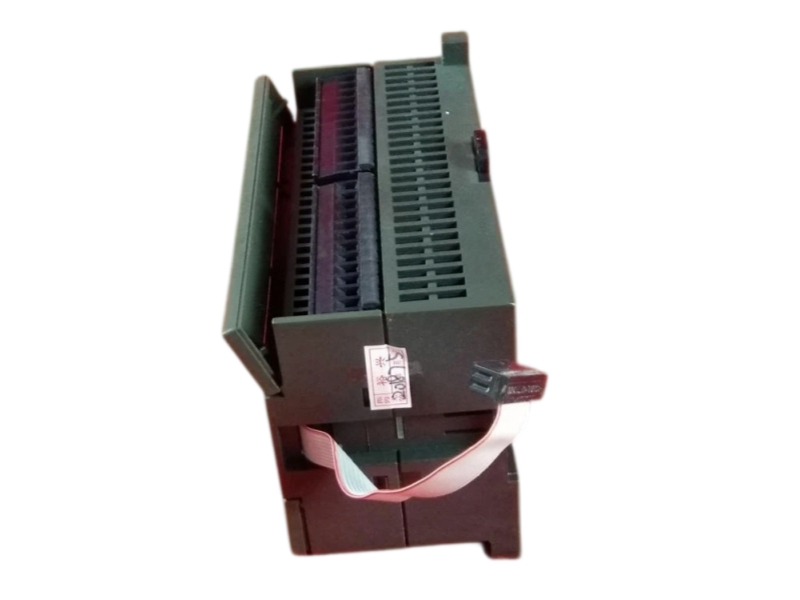

Siemens 6ES7223-1PL21-0XA0 is a SIMATIC S7-200 EM 223 expansion module combining 16 digital inputs with 16 relay outputs. The inputs operate from 24 V DC and are arranged in four isolated groups of four. Relay outputs are grouped four by four and support AC or DC loads within the stated ratings. The removable terminal block and compact S7-200 form factor support replacement work where the exact CPU generation, field wiring and load characteristics have been checked.
| Item | Verified Information |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7223-1PL21-0XA0 |
| Product Type | SIMATIC S7-200 EM 223 Digital I/O Module |
| Series | SIMATIC S7-200 |
| Lifecycle Status | Product is no longer available. |
| Technical Basis | Siemens SIMATIC S7-200 system manual and manufacturer product data |
| Parameter | 6ES7223-1PL21-0XA0 Specification |
|---|---|
| Digital inputs | 16 |
| Input voltage | 24 V DC |
| Input signal 1 | 15-30 V DC |
| Input signal 0 | 0-5 V DC |
| Input current at signal 1 | 4 mA |
| Input isolation | Optically isolated; four groups of four |
| Input delay | 4.5 ms |
| Digital outputs | 16 relay outputs |
| Output voltage | 5-30 V DC or 20-250 V AC |
| Rated output current | 2 A per channel |
| Output grouping | Four groups of four |
| Switching delay | 10 ms |
| Internal 5 V bus current | 150 mA |
| Power loss | 6 W |
| Dimensions | 137.5 x 80 x 62 mm |
| Approximate mass | 0.4 kg |
This module extends a compatible SIMATIC S7-200 station with mixed digital input and relay-output capacity. It suits machine retrofit, discrete sensing and switching duties when the installed CPU, expansion-bus limits, field voltage, relay load type and terminal allocation match the original engineering.
Siemens manufacturer product data for 6ES7223-1PL21-0XA0 states: Product is no longer available. This wording is retained without converting it to another lifecycle label. Procurement should include exact nameplate verification and a review of supported replacement options.
Contact Stockoems for availability verification, compatibility review, warranty terms and worldwide delivery coordination.
Procurement support, condition review and international delivery coordination for industrial replacement requirements.
For 6ES7223-1PL21-0XA0 enquiries, our team checks the complete model reference, available unit condition, visible nameplate data and supplied accessories before commercial confirmation. Compatibility remains dependent on the buyer's controller, field voltage, relay loads and wiring requirements.
Office CoordinationDocumentation, quotation preparation and order coordination handled by the Stockoems team. |
Visible Condition ReviewAvailable units can be reviewed for model identity, exterior condition and package completeness. |
Packing and DispatchOrder handling supports protective packing and worldwide delivery coordination. |
Send the complete model and application details for availability and compatibility review.
