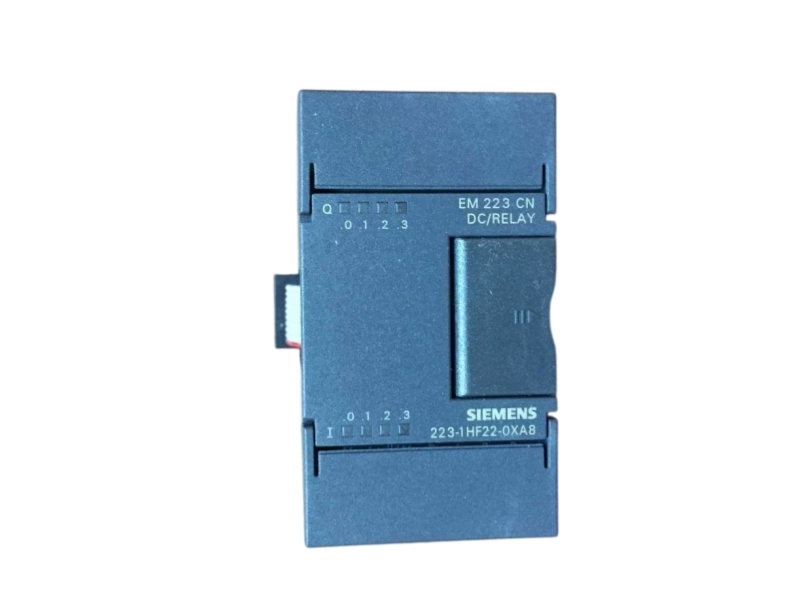

SIMATIC S7-200 CN EM 223 module combines four digital inputs with four relay outputs for compact control.
Siemens 6ES7223-1HF22-0XA8 is a SIMATIC S7-200 CN EM 223 digital I/O expansion module intended for S7-22X CPUs. It combines four 24 V DC digital inputs with four relay outputs. The compact housing supports small machines that need a limited number of additional sensors and switched loads, while the relay outputs allow suitable AC or DC circuits to be controlled after electrical and inrush ratings are checked.
| Item | Verified Information |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7223-1HF22-0XA8 |
| Product Type | SIMATIC S7-200 CN EM 223 Digital I/O Module |
| Series | SIMATIC S7-200 CN |
| Lifecycle Status | Not stated in the accessible official manufacturer datasheet |
| Technical Basis | Siemens product datasheet for 6ES7223-1HF22-0XA8 |
| Parameter | 6ES7223-1HF22-0XA8 Specification |
|---|---|
| Digital inputs | 4 |
| Input voltage | 24 V DC |
| Input current at signal 1 | Typically 4 mA |
| Digital outputs | 4 relay outputs |
| Output voltage | 5-30 V DC or up to 250 V AC |
| Rated output current | 2 A per output |
| Short-circuit protection | No |
| Power loss | Typically 2 W |
| Compatible controller family | SIMATIC S7-200 CN, S7-22X CPUs |
| Dimensions | 46 x 80 x 62 mm |
| Approximate net weight | 0.144 kg |
| Approval note | S7-200 CN product with CE approval stated in the datasheet |
The module extends a compatible SIMATIC S7-200 CN controller with four sensor inputs and four relay outputs. It can support compact machine controls, auxiliary switching and retrofit work where the S7-22X CPU, expansion arrangement, field voltage and relay-load characteristics match the original system design.
The accessible Siemens datasheet confirms 6ES7223-1HF22-0XA8 and identifies it as a spare-part product, but it does not state a current lifecycle classification. No lifecycle label is assigned here without exact manufacturer wording. Present support and availability should be confirmed before procurement.
Contact Stockoems for availability verification, compatibility review, warranty terms and worldwide delivery coordination.
Procurement support, condition review and international delivery coordination for industrial replacement requirements.
For 6ES7223-1HF22-0XA8 enquiries, our team checks the complete model reference, available unit condition, visible nameplate data and supplied accessories before commercial confirmation. Compatibility remains dependent on the buyer's controller, field voltage, relay loads and wiring requirements.
Office CoordinationDocumentation, quotation preparation and order coordination handled by the Stockoems team. |
Visible Condition ReviewAvailable units can be reviewed for model identity, exterior condition and package completeness. |
Packing and DispatchOrder handling supports protective packing and worldwide delivery coordination. |
Send the complete model and application details for availability and compatibility review.
