Combined 8-input and 8-output expansion module for SIMATIC S7-22X CPU systems.

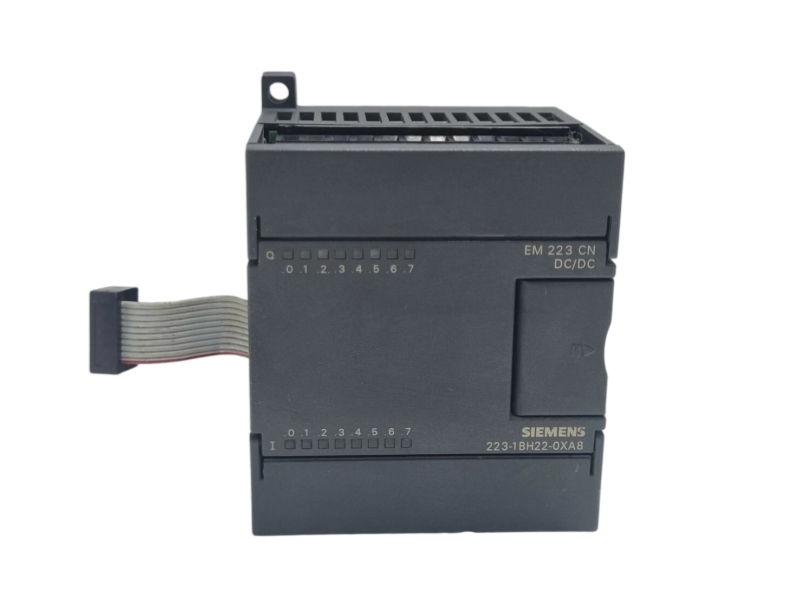

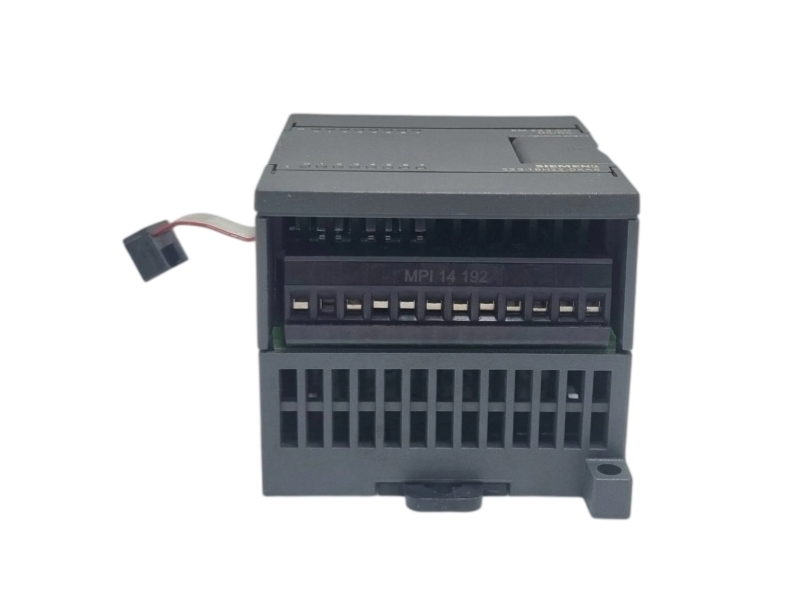

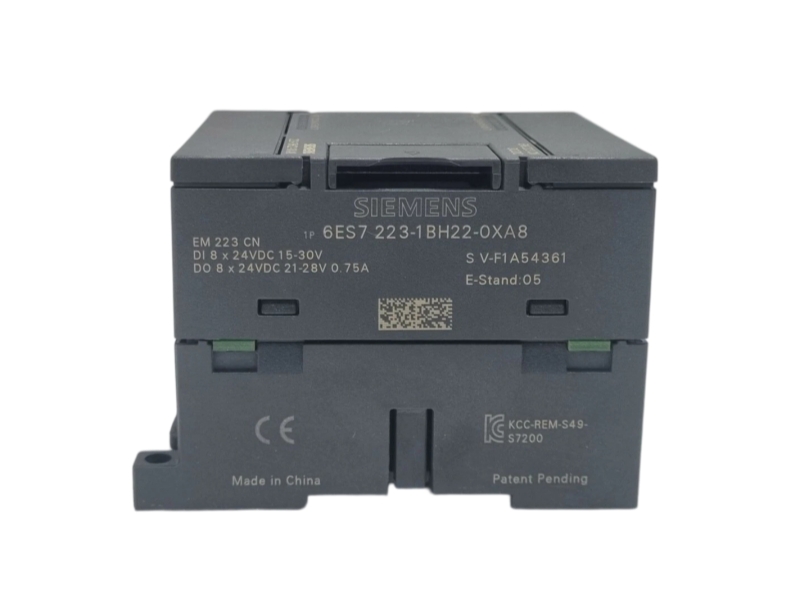

Siemens 6ES7223-1BH22-0XA8 is a SIMATIC S7-200 CN EM 223 digital I/O expansion module intended only for S7-22X CPUs. It combines eight 24 V DC sink/source inputs with eight 24 V DC source transistor outputs.
Each output is rated at 0.75 A per channel in the official catalog description. This CN product is identified by Siemens as having CE approval only, so regional and machine-level compliance should be checked.
| Manufacturer | Siemens |
| Complete part number | 6ES7223-1BH22-0XA8 |
| Product family | SIMATIC S7-200 CN |
| Lifecycle wording | PM410: Product Cancellation |
| Cancellation effective date | 01 October 2021 |
| Official note | Spare part; intended only for S7-22X CPU |
| Product type | EM 223 digital I/O module |
| Digital inputs | 8 × 24 V DC, sink/source |
| Digital outputs | 8 × 24 V DC, source transistor |
| Output current | 0.75 A per channel |
| CPU compatibility | S7-22X CPU only |
| Approval note | This S7-200 CN product has CE approval only |
| Net weight | 0.189 kg |
| Packaging dimensions | 7.30 × 8.80 × 7.00 cm |
Adds mixed digital input and output capacity to compatible S7-200 CN controllers.
Supports like-for-like maintenance of legacy compact PLC control panels.
Connects 24 V DC field inputs and source transistor loads within the published ratings.
It is an EM 223 mixed digital I/O expansion module for SIMATIC S7-200 CN.
The module has eight digital inputs and eight digital outputs.
It uses 24 V DC source transistor outputs rated at 0.75 A per channel.
Siemens specifies use only with S7-22X CPUs.
Siemens lists PM410: Product Cancellation, effective 01 October 2021.
Send the complete part number, installed system, quantity, destination and any nameplate or revision details.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Practical support for identification, compatibility review and international industrial spare-parts procurement.
We compare the requested code, suffix and available nameplate evidence before order confirmation.
S7-22X CPU type, CN hardware context, 24 V DC wiring, output load and approval requirements are checked.
Supply availability, warranty terms, packing and global shipment details are confirmed with the quotation.
Provide 6ES7223-1BH22-0XA8, required quantity, destination, system context and clear photos of the label or installed assembly.
Confirm the exact S7-22X CPU, sink/source input wiring and source-output load data before replacement or expansion.
Our team can review identification, supply availability, compatibility evidence, warranty scope and global shipping requirements.
