Eight protected spur lines for PROFIBUS PA and FOUNDATION Fieldbus H1 process networks.

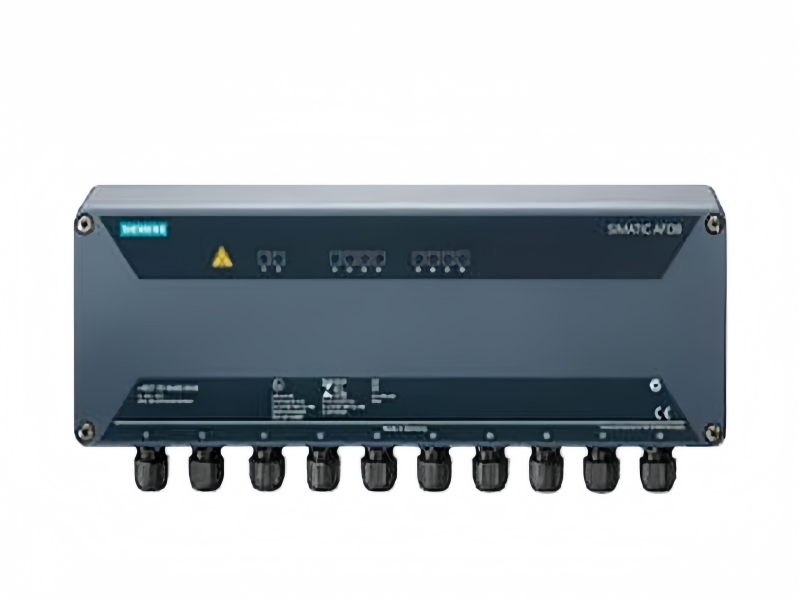

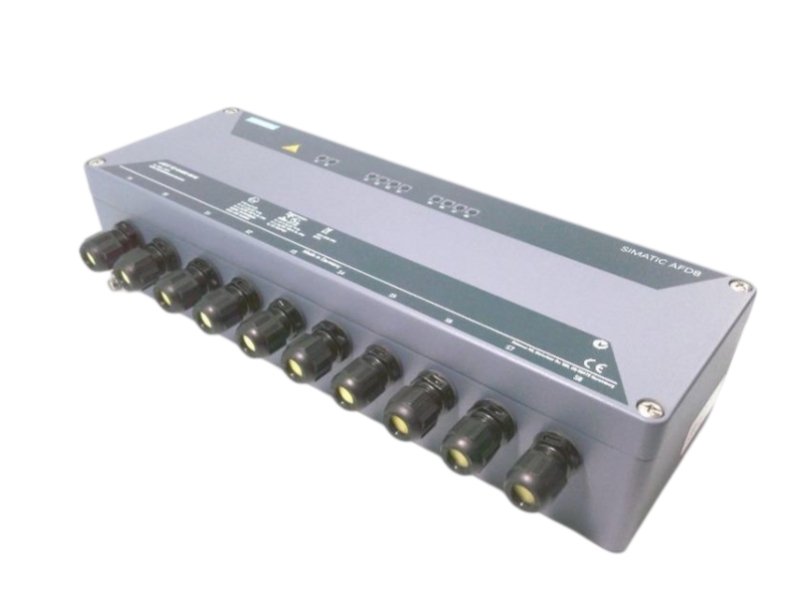

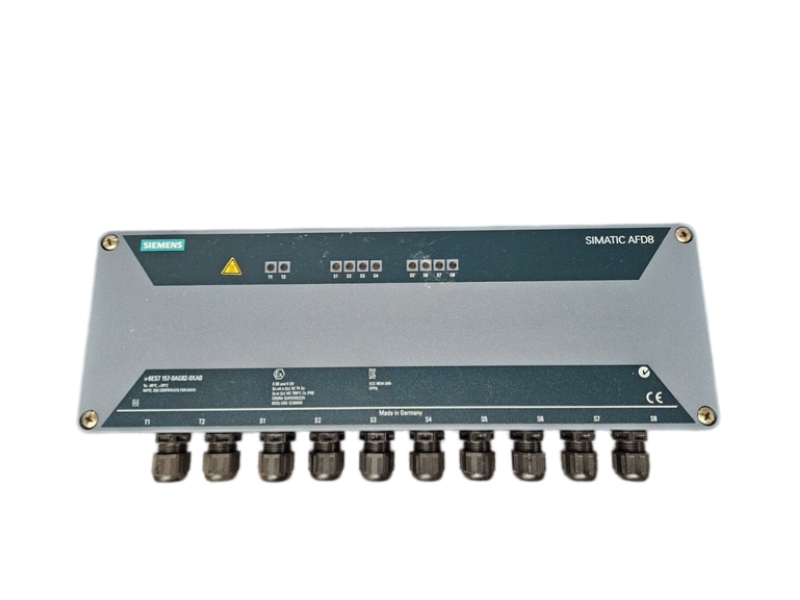

Siemens 6ES7157-0AG82-0XA0 is an AFD8 active field distributor for PROFIBUS PA and FOUNDATION Fieldbus H1 installations. It provides eight short-circuit-proof spur lines with bounce protection logic and automatic bus termination for line or ring topology. The IP66 enclosure and extended -40°C to +70°C operating range support field-mounted process automation networks. Power is supplied through the bus, so no separate auxiliary supply is required. When planning a new installation or replacement, verify the complete order number, fieldbus type, main-line topology, spur current, cable glands, mounting dimensions, enclosure condition and existing FDC 157 arrangement.
| Commercial Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM300: Active Product; product phase-out starts 2027-10-01 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7157-0AG82-0XA0 |
| Product Type | AFD8 active field distributor |
| Supported Fieldbuses | PROFIBUS PA and FOUNDATION Fieldbus H1 |
| Spur Lines | 8 short-circuit-proof spur lines with bounce protection logic |
| Bus Termination | Automatic termination for line and ring topology |
| Supply | Via bus; no auxiliary power required; permitted range 16–32 V DC |
| No-Load Current | 34 mA |
| Diagnostics | LED indication |
| Protection Rating | IP66 |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 360 × 120 × 83 mm without cable glands |
| Mounting Dimensions | 344 × 82 mm |
| Weight | 3,000 g in the Siemens AFD8 technical specification |
| Country of Origin | GERMANY |
| Application | Fit Consideration |
|---|---|
| PROFIBUS PA segment distribution | Distributes a configured fieldbus main line to eight protected field-device spurs. |
| FOUNDATION Fieldbus H1 networks | Supports H1 installations after segment power, topology and current-budget verification. |
| Line or ring topology | Automatic bus termination supports the documented line and ring arrangements. |
| Outdoor or exposed field installation | IP66 protection and the extended temperature range suit appropriately engineered field locations. |
Siemens lists 6ES7157-0AG82-0XA0 as PM300: Active Product and states that product phase-out starts on 2027-10-01. This wording is reproduced without converting the future phase-out date into a discontinued status.
It identifies the Siemens AFD8 active field distributor for PROFIBUS PA and FOUNDATION Fieldbus H1.
The AFD8 provides eight short-circuit-proof spur lines with bounce protection logic.
No. Siemens specifies supply through the bus within the documented 16–32 V DC permitted range.
No. Siemens currently lists PM300: Active Product and gives 2027-10-01 as the start of product phase-out.
No direct physical swap should be assumed; dimensions, mounting, cable entries, segment design and approvals must be compared.
Available front, terminal, nameplate, packaging and condition photographs can be reviewed during the quotation process.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Our workflow for Siemens 6ES7157-0AG82-0XA0 combines model verification, technical review, visual inspection, protective handling and traceable delivery coordination.
| Stage | What We Check | Buyer Value |
|---|---|---|
| Model and suffix verification | Complete order code, suffix and label details are compared with the purchase request. | Reduces selection errors. |
| Condition confirmation | Product housing, connectors, seals, accessories and packaging are reviewed. | Supports clear condition assessment. |
| Technical compatibility review | Bus type, supply range, topology, enclosure and project requirements are checked against buyer information. | Helps avoid unsuitable replacements. |
| Photo confirmation | Product and label photos can be supplied for review before shipment when available. | Provides visible order-code evidence. |
Sensitive surfaces and connectors are protected, immobilized and cushioned for industrial spare-parts transport.
Logistics options are coordinated by destination, shipment requirements and available carrier services, with shipment tracking supplied.
Commercial documents are prepared for the confirmed order and destination requirements without promising an unverified delivery date.
Written warranty terms are supplied with the order. If an issue is reported, our team provides an after-sales response, documents the case and explains the return authorization process before any return shipment is arranged.
