PROFIBUS DP to intrinsically safe IEC 61158-2 fieldbus coupling for extended-temperature applications.

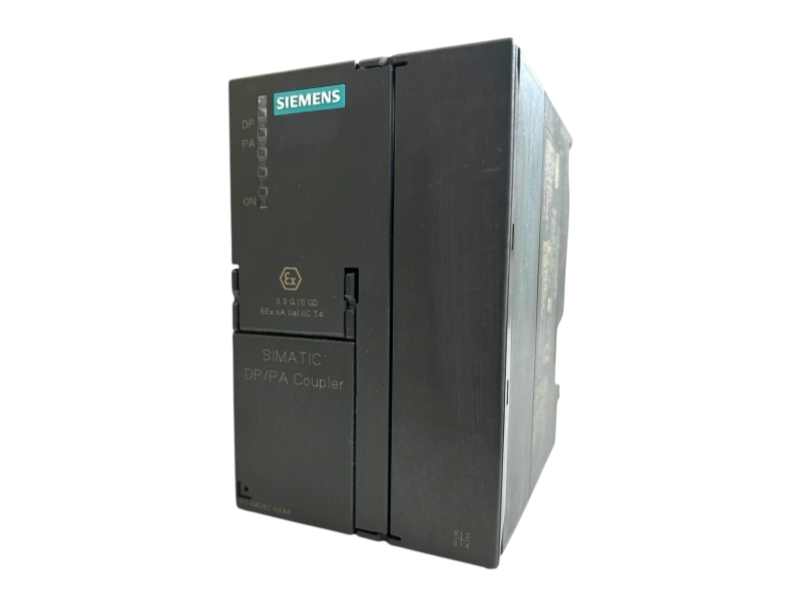

Siemens 6ES7157-0AD82-0XA0 is the SIMATIC DP/PA Coupler Ex [ia] for connecting a PROFIBUS DP network to intrinsically safe IEC 61158-2 fieldbus segments such as PROFIBUS PA. The module supplies up to 110 mA to the PA segment and supports as many as 31 connectable PA field devices within the documented limits. It is intended for extended-temperature applications and provides diagnostic monitoring for DP activity, PA activity and the 24 V supply. Replacement planning should verify the exact suffix, product version, hazardous-area approvals, FISCO design, DP connector, PA wiring, power supply and enclosure requirements before installation.
| Commercial Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM300: Active Product; product phase-out starts October 1, 2027 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7157-0AD82-0XA0 |
| Product Type | SIMATIC DP/PA Coupler Ex [ia] |
| Product Designation | FDC157 Ex [ia] |
| Fieldbus Function | Couples PROFIBUS DP to IEC 61158-2 fieldbus segments such as PROFIBUS PA |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Range | 20.4 to 28.8 V DC |
| Maximum Current Consumption | 400 mA |
| Typical Power Loss | 7 W |
| PROFIBUS DP | 45.45 kbit/s; 9-pin Sub-D |
| PROFIBUS PA | 31.25 kbit/s |
| Connectable PA Field Devices | Up to 31 |
| Maximum PA Output Current | 110 mA |
| Diagnostics | DP activity, PA activity and 24 V supply monitoring |
| Degree of Protection | IP20 |
| Net Weight | 0.589 kg |
| Country of Origin | GERMANY |
| Application | Fit Consideration |
|---|---|
| PROFIBUS DP/PA integration | Connects a compatible PROFIBUS DP structure to an intrinsically safe PA fieldbus segment. |
| Hazardous-area process instrumentation | Use only within the documented approvals, FISCO parameters and installation rules. |
| Extended-temperature installations | Confirm the enclosure, ambient conditions and hazardous-area classification before use. |
| Maintenance replacement | Match the complete suffix, product version, wiring, connector, approvals and project configuration. |
Siemens lists 6ES7157-0AD82-0XA0 as PM300: Active Product and states that product phase-out starts on October 1, 2027. The future phase-out date is not presented as current discontinuation.
It identifies the Siemens SIMATIC DP/PA Coupler Ex [ia], product designation FDC157 Ex [ia].
It couples PROFIBUS DP to IEC 61158-2 fieldbus segments such as PROFIBUS PA.
Siemens specifies up to 31 connectable PA field devices within the documented electrical and installation limits.
No. Siemens currently lists it as PM300: Active Product and states that product phase-out starts October 1, 2027.
Verify the suffix, product version, approvals, FISCO design, DP connector, PA wiring, power supply, enclosure and project configuration.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Structured verification, inspection coordination, protective handling and international logistics for 6ES7157-0AD82-0XA0.
| Service Checkpoint | What We Review |
|---|---|
| Model and suffix verification | Match 6ES7157-0AD82-0XA0 exactly against the inquiry, product label and packaging. |

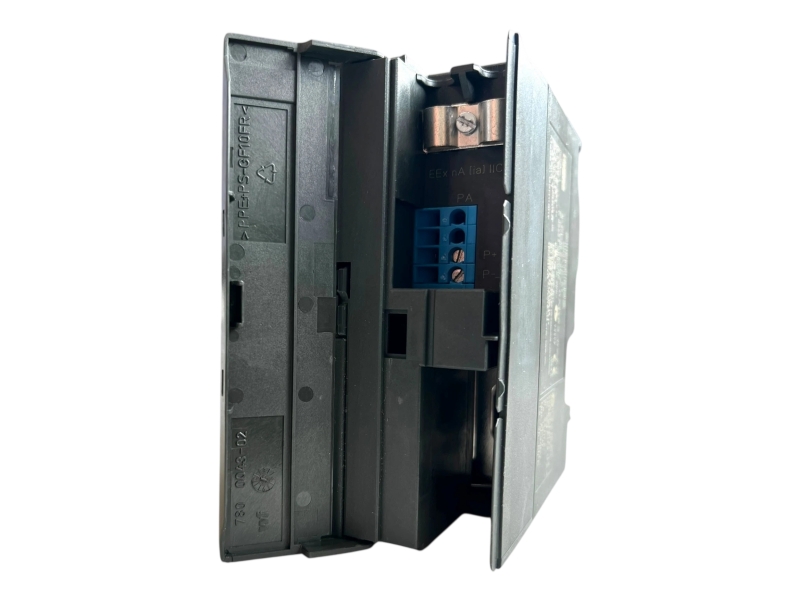

| Condition confirmation | Review housing, terminals, connectors, approval markings and visible condition. |
| Technical compatibility review | Check DP/PA architecture, electrical limits, product version, FISCO design and project requirements. |

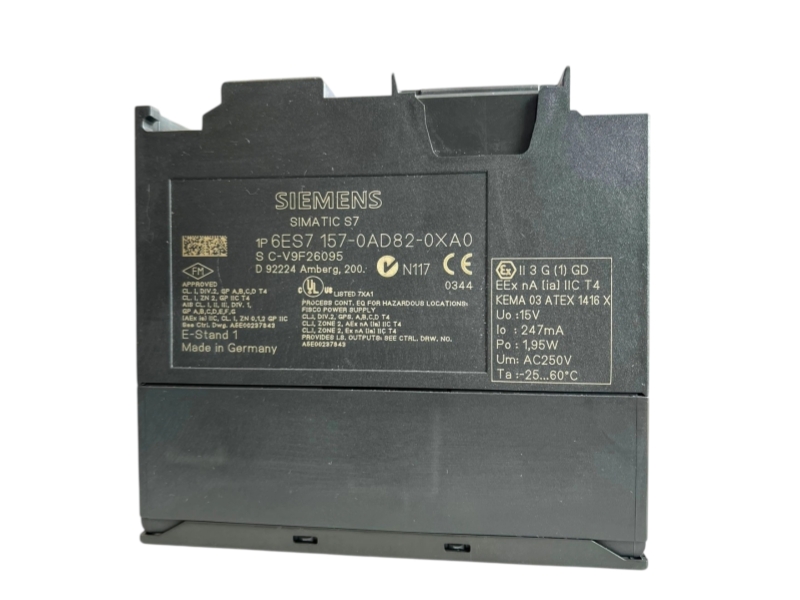

| Product and label photo confirmation | Request readable front, terminal, nameplate, approval and packaging photographs. |
| Protective packaging | Protect the enclosure, connectors and terminal areas against impact, moisture and uncontrolled movement. |
| Worldwide shipping | Coordinate options after destination, quantity, packaging and documentation scope are reviewed. |
| Shipment tracking | Provide tracking information after carrier acceptance for traceable logistics follow-up. |
| Customs documentation | Prepare commercial documents for the confirmed destination and transaction scope. |
| Written warranty terms | Provide written terms aligned with the confirmed transaction. |
| Return authorization process | Require return authorization before any goods are sent back. |
| After-sales response | Use order records, shipment details and photographs to coordinate technical communication. |
Look for exact suffix verification, readable label evidence, clear condition terms, compatibility questions, written warranty terms and traceable communication.
Request the complete order code, quantity, condition statement, inspection photographs, packaging plan, shipping options, documentation scope and return terms.
Check the DP and PA interfaces, power limits, product version, FISCO parameters, field devices, enclosure and archived project configuration.
Warning signs include altered suffixes, unreadable approval labels, unsupported hazardous-area claims, vague warranty language and unverifiable stock promises.
Send the complete part number, required quantity, destination country and available product or label photos for a structured procurement review.
