SIMATIC BUS LINKS · FIELD DEVICE COUPLER
Physical interface for PROFIBUS PA or Foundation Fieldbus H1 with integrated bus supply, redundancy capability and diagnostics.

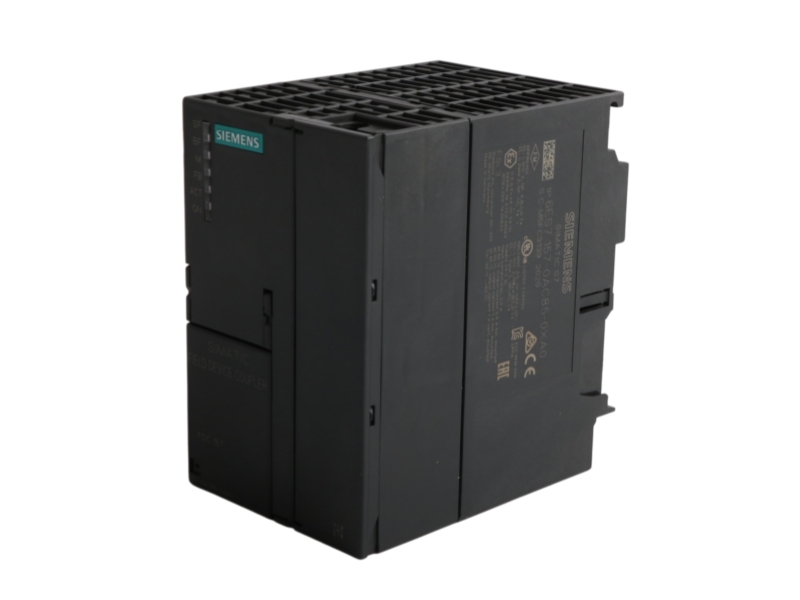

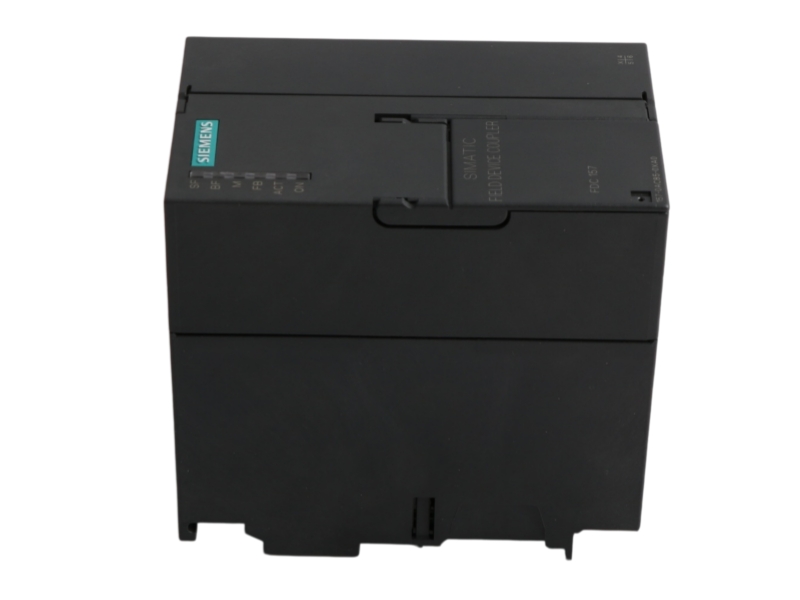

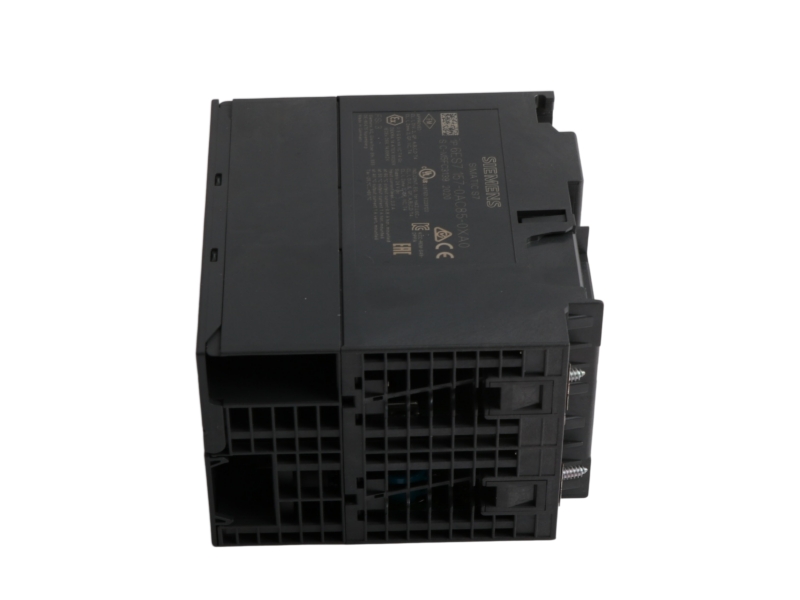

Siemens 6ES7157-0AC85-0XA0 is the Field Device Coupler FDC 157 for PROFIBUS PA and Foundation Fieldbus applications. Siemens specifies an integrated bus supply up to 1000 mA, redundancy capability, integrated diagnostics, IP20 protection and operation across an extended temperature range. The coupler uses 24 V DC supply, supports PROFIBUS DP and PROFIBUS PA communication, and can connect up to 31 PA field devices. It is functionally compatible with predecessor FDC 157 articles 6ES7157-0AC83-0XA0 and 6ES7157-0AC84-0XA0. Procurement should verify the complete suffix, bus system, redundancy arrangement, supply, address, wiring, STEP 7 configuration and readable product label.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7157-0AC85-0XA0 |
| Product Type | Field Device Coupler FDC 157 |
| Supported Fieldbuses | PROFIBUS PA and Foundation Fieldbus H1 |
| Supply Voltage | 24 V DC; permissible range 20.4 to 28.8 V |
| Maximum Current Consumption | 2.3 A at 24 V DC |
| Typical Power Loss | 13.4 W |
| PROFIBUS DP Interface | 45.45 kbit/s; 9-pin Sub-D connection |
| PROFIBUS PA Rate | 31.25 kbit/s |
| Connectable PA Field Devices | Up to 31 |
| Bus Supply Output | Up to 1 A |
| Redundant Operation | Redundancy capable |
| Diagnostics | Integrated diagnostics with bus and fault status indications |
| Electrical Isolation | 600 V DC test voltage |
| Protection Rating | IP20 |
| Operating Temperature | -25 to 60 °C |
| Country of Origin | GERMANY |
| PROFIBUS PA Segments | Couples automation systems to PA field-device networks with integrated bus supply. |
|---|---|
| Foundation Fieldbus H1 | Provides the physical fieldbus interface required by compatible FF architectures. |
| Redundant Coupling | Supports redundancy arrangements where specified by the system design. |
| Maintenance Replacement | Can replace confirmed predecessor FDC 157 articles when configuration requirements are met. |
The reviewed Siemens data sheet and operating instructions confirm the exact 6ES7157-0AC85-0XA0 configuration and its compatibility with predecessor FDC 157 articles. They do not state a current PLM lifecycle category, so no lifecycle status is inferred.
It identifies the Siemens Field Device Coupler FDC 157 for PROFIBUS PA and Foundation Fieldbus applications.
Siemens specifies up to 31 connectable PROFIBUS PA field devices.
Yes. The official product description states that the FDC 157 is redundancy capable.
Siemens identifies 6ES7157-0AC83-0XA0 and 6ES7157-0AC84-0XA0 as compatible predecessors.
Verify the suffix, fieldbus type, supply, segment load, redundancy layout, addressing, wiring and project configuration.
