SIMATIC DP • PROFIBUS PA FIELD LINK
A non-Ex field coupler that links PROFIBUS DP to PROFIBUS PA and supplies the PA segment.
|

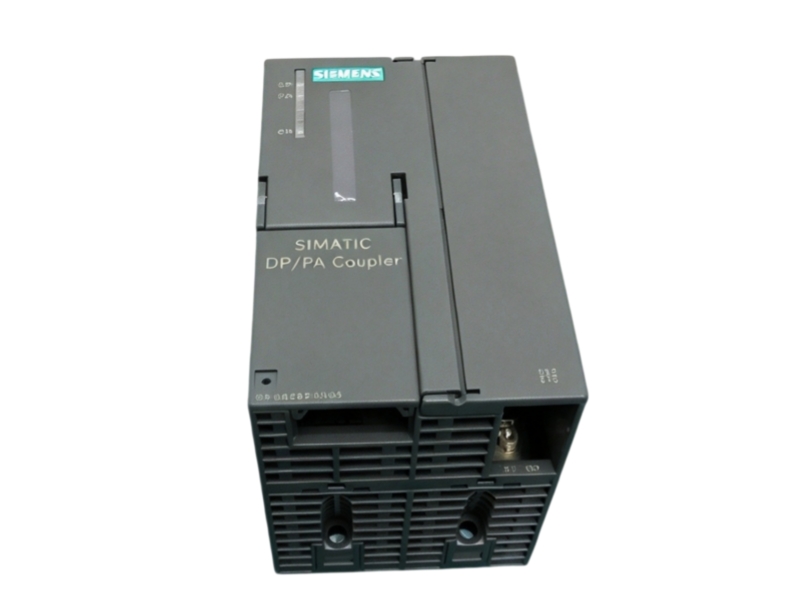

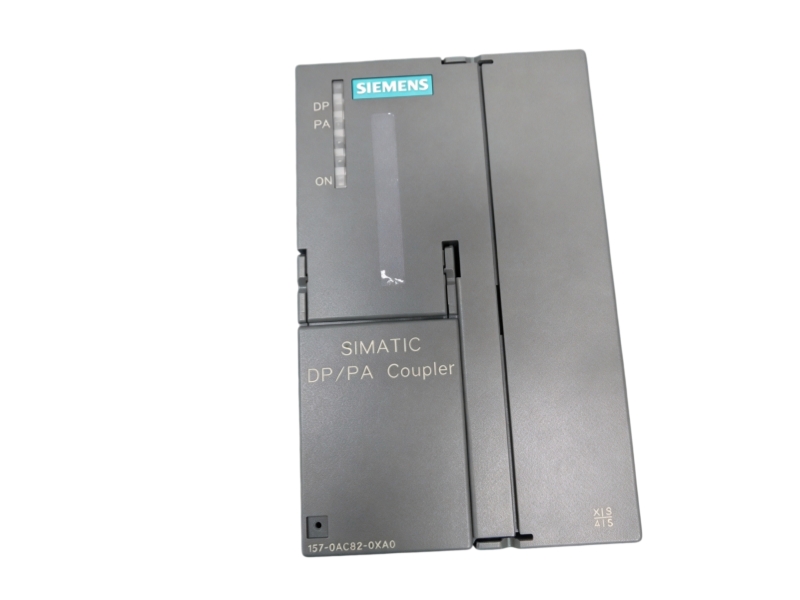

Siemens 6ES7157-0AC82-0XA0 is a SIMATIC DP field-device interface that couples PROFIBUS DP to a non-intrinsically-safe PROFIBUS PA segment. It converts the DP transmission rate to the fixed PA rate while supplying the connected PA fieldbus. The coupler provides a 31 VDC PA output with up to 1 A segment current, galvanic separation from the 24 VDC supply, integrated bus termination control and LED diagnostics for the DP side, PA side and incoming power. |
Procurement identity

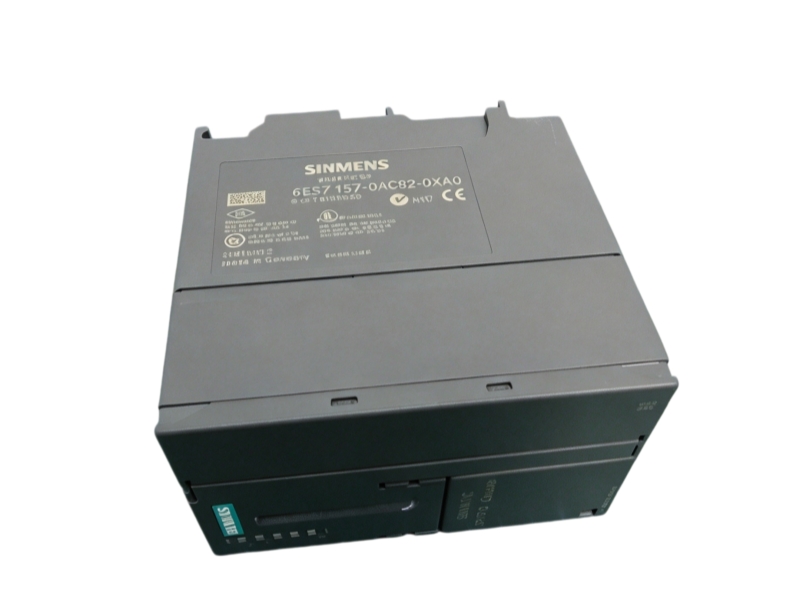

6ES7157-0AC82-0XA0 SIMATIC DP/PA Coupler Origin: Germany |
| Complete order number | 6ES7157-0AC82-0XA0 |
|---|---|
| Manufacturer | Siemens |
| Product type | SIMATIC DP/PA Coupler |
| Lifecycle status | End Prod.Lifecycl. |
| Official successor | 6ES7157-0AC85-0XA0 |
| Parameter | Official specification |
|---|---|
| Official designation | DEVICE LINK DP/PA COUPLER, NON EX-VERS. |
| Article number | 6ES7157-0AC82-0XA0 |
| Application | Field coupler between PROFIBUS DP and PROFIBUS PA |
| PROFIBUS DP rate | 45.45 kbit/s |
| PROFIBUS PA rate | 31.25 kbit/s |
| Bus protocol | PROFIBUS DP |
| Supply voltage | 24 VDC; permissible range 20.4 to 28.8 VDC |
| PA output voltage | 31 VDC ±1 V |
| PA output current | 1 A maximum |
| Connectable PA field devices | Up to 31 certified PROFIBUS PA devices outside Ex areas |
| Coupler current consumption | 1.8 A maximum at 24 VDC |
| Power dissipation | 12 W typical |
| Electrical isolation | 24 V supply isolated from PROFIBUS DP and PROFIBUS PA |
| Isolation test voltage | 500 VDC |
| Diagnostics | DP, PA and 24 V supply monitoring by LEDs |
| Protection class | IP20 |
| Temperature capability | Extended temperature range |
| Dimensions (W × H × D) | 80 × 125 × 130 mm |
| Product weight | Approximately 515 g |
| Packaging dimensions (L × W × H) | 15.1 × 13.4 × 9.1 cm |
| Siemens net weight | 0.501 kg |
| Use case | Role in the system |
|---|---|
| DP-to-PA fieldbus conversion | Links a PROFIBUS DP network to a 31.25 kbit/s PROFIBUS PA segment. |
| PA segment power supply | Supplies up to 1 A at 31 VDC for connected non-Ex PA field devices. |
| Installed-base maintenance | Supports like-for-like service where the exact coupler, wiring and termination arrangement are retained. |
| 01 | Confirm the complete 6ES7157-0AC82-0XA0 article number and hardware revision. |
| 02 | Verify that the application is outside hazardous Ex areas. |
| 03 | Record the 24 VDC feed, PROFIBUS DP connector and PA segment wiring. |
| 04 | Confirm the PA field-device count and total segment current do not exceed official limits. |
| 05 | Document the PA bus-termination switch position and external terminators. |
| 06 | Evaluate successor 6ES7157-0AC85-0XA0 as a separate migration project. |
It couples PROFIBUS DP to a non-Ex PROFIBUS PA segment and supplies the PA fieldbus.
The Siemens manual specifies up to 31 certified PROFIBUS PA field devices outside Ex areas, subject to the 1 A segment-current limit.
Siemens identifies 6ES7157-0AC85-0XA0 as the successor, but wiring, mounting, termination and project requirements must be checked separately.
Send the complete order code, quantity, condition preference, delivery destination and clear product photographs for a supply review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
FIELD DEVICE PROCUREMENT SUPPORT
A procurement-focused review of identity, PROFIBUS topology, PA segment load, termination, condition evidence, packing and delivery.
Label RecordComplete article number and revision evidence. |
Connection RecordDP, PA, power and termination photographs. |
Condition RecordHousing, terminals, LEDs and connector condition. |
| Stage | Review item | Procurement outcome |
|---|---|---|
| 01 · Identify | Order label, revision and enclosure markings | Establishes the exact discontinued coupler variant |
| 02 · Map | DP connector, PA terminals and termination switch | Records the installed fieldbus topology |
| 03 · Calculate | PA device count and segment-current demand | Checks the documented 1 A output limit |
| 04 · Inspect | Power terminals, LEDs, connectors and housing | Provides condition evidence before supply |
| 05 · Protect | Connector covers, anti-static protection and reinforced packing | Reduces transport risk |
| 06 · Deliver | Quantity, destination, warranty terms and shipment method | Defines the quotation and fulfilment scope |
| 1 | Complete order code: 6ES7157-0AC82-0XA0 |
| 2 | Front, side and rear label photographs with revision details |
| 3 | PROFIBUS DP connector and PA terminal photographs |
| 4 | 24 VDC supply data and PA segment-current calculation |
| 5 | PA device count, cable topology and termination-switch position |
| 6 | Quantity, condition preference, destination and required date |
| Packing | Connector protection, anti-static wrapping and reinforced outer packing |
|---|---|
| Condition evidence | Label and physical-condition images retained with the supply record |
| Delivery | Trackable international shipment to the confirmed destination |
| Warranty | Terms stated in the quotation for the specific offered item |
Send the complete order code, quantity, condition preference, delivery destination and clear product photographs for a supply review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
