6ES7152-1AA00-0AB0 Overview

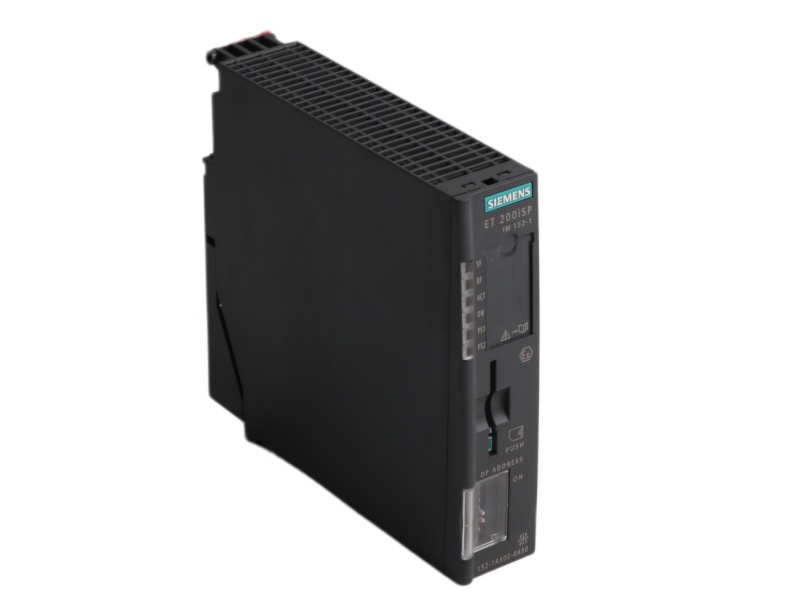

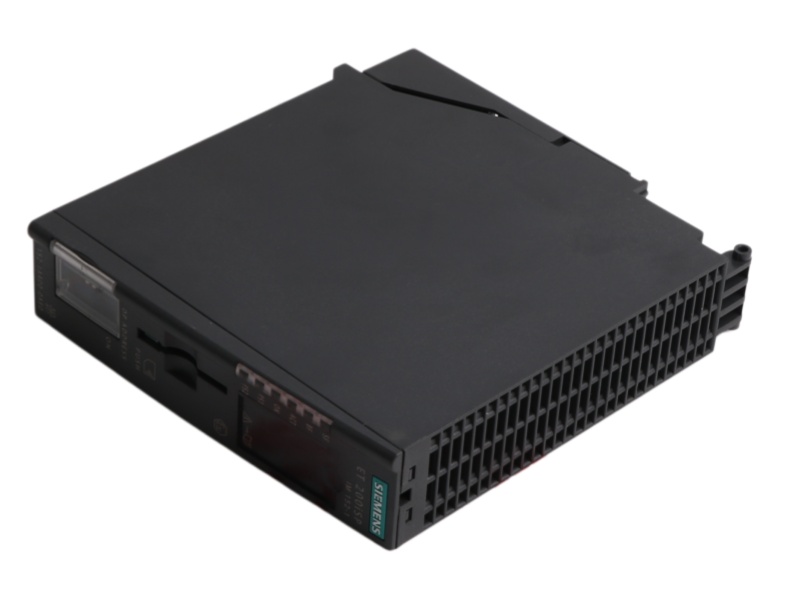

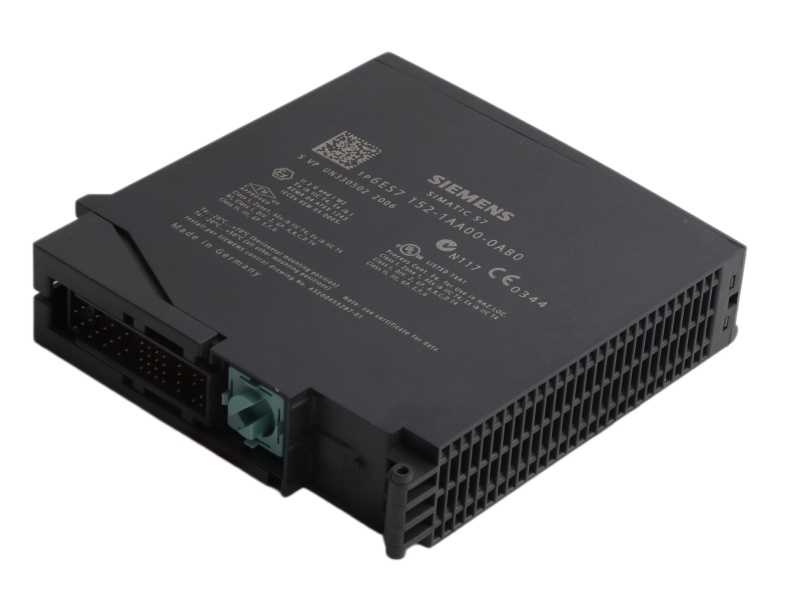

The Siemens IM152-1 Interface Module 6ES7152-1AA00-0AB0 is a PROFIBUS interface module for the ET200iSP distributed I/O system, supporting both standard and intrinsically safe redundant operation in hazardous areas.

Key Product Advantages

Hazardous Area Use: Certified for intrinsically safe operation in Ex ib IIC T4 Gb, Ex ib I Mb environments.

High Reliability: Supports standard and redundant PROFIBUS DP operation for critical applications.

System Integration: Core interface module for the ET200iSP distributed I/O system.

Efficient Design: Low power consumption (max 30 mA, typ. 0.5 W loss) and compact size.

High Performance: Manages up to 64 digital inputs with a 20 ms timestamp accuracy.

Robust Communication: Features a reliable RS-485 intrinsically safe physical interface.

FAQ

Q1: What is the primary function of this module?

A1: It is the IM152-1DP interface module, providing the PROFIBUS connection for the ET200iSP distributed I/O system.

Q2: What safety certification does it have for hazardous areas?

A2: It is certified for intrinsically safe operation in zones classified as Ex ib IIC T4 Gb and Ex ib I Mb.

Q3: Does it support redundancy?

A3: Yes, it supports both standard and redundant PROFIBUS DP operation.

Q4: What is its communication interface?

A4: It uses an RS-485 interface that is designed for intrinsically safe operation.

Q5: What is its maximum input capacity?

A5: It can manage a maximum of 64 timestamped digital inputs.
