Exact Model Verification
We compare the complete order code, suffix and visible label so a different IM151-1 FO configuration is not substituted.
Siemens industrial automation component verified by complete order number

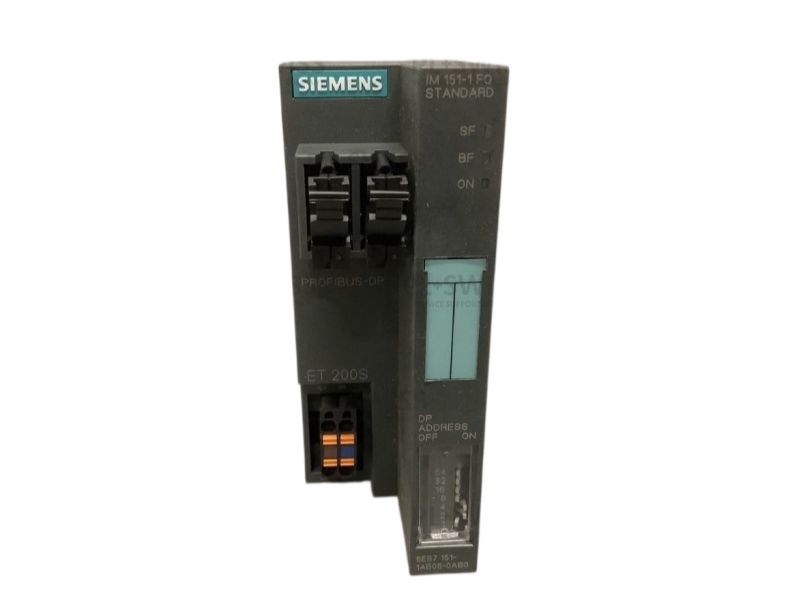

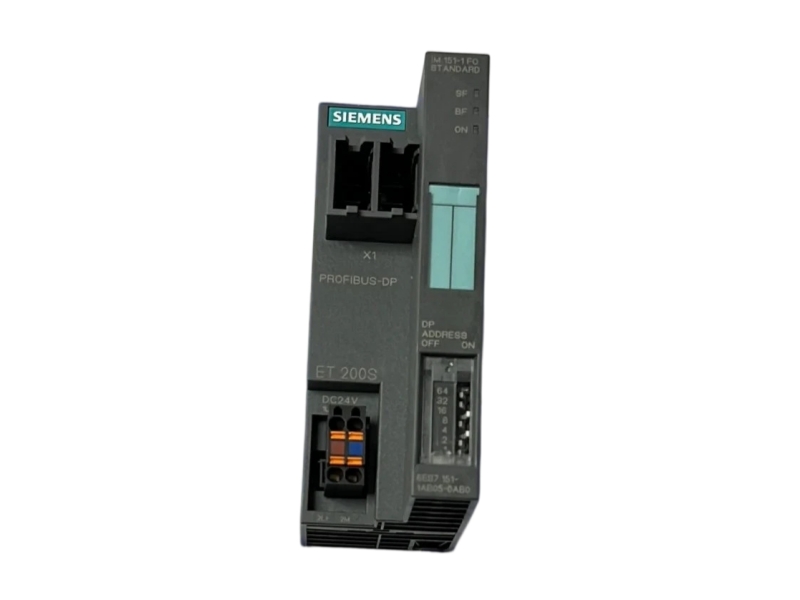

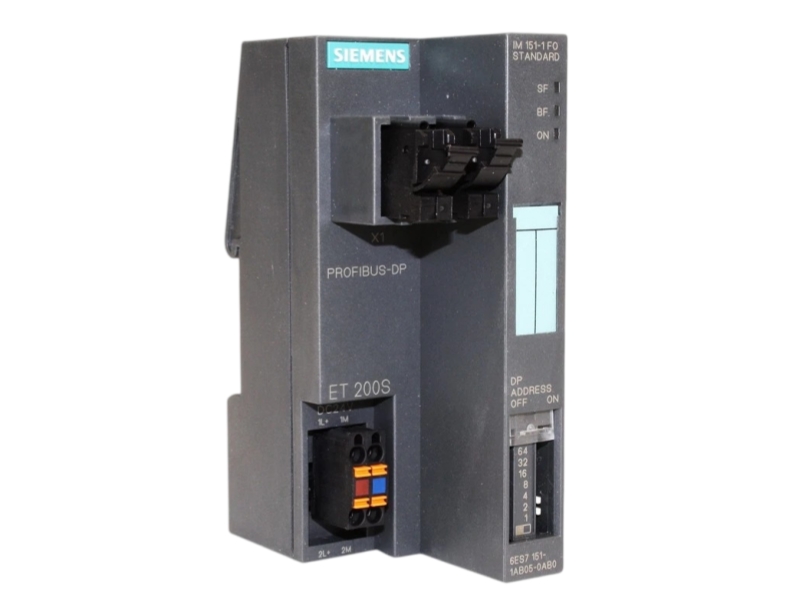

The Siemens 6ES7151-1AB05-0AB0 is the IM151-1 FO Standard interface module for ET 200S distributed I/O stations. Siemens documents a 24 V DC electronics supply and an optical PROFIBUS DP interface, with diagnostics and alarm functions for station supervision. The module provides SF, BF and ON indicators and supports class-2 PG/OP services. It is used where an ET 200S station must communicate over fiber-optic PROFIBUS infrastructure. Replacement planning should compare the complete suffix, terminal module, optical cable type, connector condition, configured station width, PROFIBUS address and project hardware data.
| Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide delivery options available from China |
| Brand | Siemens |
| Complete Part Number | 6ES7151-1AB05-0AB0 |
| Product Type | IM151-1 FO Standard interface module |
| Automation System | SIMATIC ET 200S |
| Network Interface | Optical PROFIBUS DP |
| Electronics Supply | 24 V DC |
| Current Consumption | Approximately 200 mA from 24 V supply |
| Typical Power Loss | 3.3 W |
| Power Failure Bridging | Minimum 20 ms |
| Diagnostics and Alarms | Supported |
| Status Indicators | SF red, BF red and ON green |
| PG/OP Connections | Three class-2 connections |
| Country of Origin | GERMANY |
| Application | Engineering Relevance |
|---|---|
| ET 200S Optical PROFIBUS Station | Connects an ET 200S distributed I/O station to a compatible optical PROFIBUS DP segment. |
| Distributed I/O Modernization | Supports replacement planning where the installed station uses the same IM151-1 FO order number and terminal arrangement. |
| Machine and Process I/O | Provides station communication and diagnostics for modular field I/O in automated equipment. |
The reviewed Siemens IM151-1 FO Standard technical document confirms the exact order number and hardware function. It does not state a current PLM code, so no Active, Classic, Legacy, Obsolete or Discontinued label is assigned here.
It is a Siemens IM151-1 FO Standard interface module for a SIMATIC ET 200S distributed I/O station.
Siemens documents an optical PROFIBUS DP interface for this exact order number.
Not automatically. The optical media, terminal arrangement, order suffix and project configuration must match.
Verify the full order number, optical connector, terminal module, PROFIBUS address, station configuration and visible condition.
The reviewed Siemens technical document does not state a current PLM label, so this page does not infer one.
Ask for full-product, readable nameplate, optical-port, packaging and condition photographs.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Practical support for identifying, inspecting, documenting and shipping Siemens 6ES7151-1AB05-0AB0 ET 200S optical interface hardware.
Our team reviews visible product identity, condition, packaging and order information before dispatch. The photographs below show representative inspection and handling activities in our working environment.
We compare the complete order code, suffix and visible label so a different IM151-1 FO configuration is not substituted.
Available inspection can cover the optical PROFIBUS interface, 24 V supply terminal, housing, indicators and terminal module.
Installed module version, ET 200S station layout, optical media and PROFIBUS parameters are reviewed as purchasing inputs, not as a universal replacement guarantee.
Full-product, nameplate, connector, packaging and condition photographs can be prepared for identity and visual checks.
Industrial electronics are packed to reduce movement, impact and electrostatic exposure, with packaging selected for the order.
Shipping options are reviewed according to quantity, destination country, package requirements and available service level.
| Review Item | What Can Be Checked |
|---|---|
| Order code | Complete part number, suffix and readable nameplate details. |
| Visible condition | Housing, front panel, indicator area, terminal area and mounting points. |
| Interfaces | Optical interface, 24 V terminal, indicators and visible connector condition. |
| Photo evidence | Product, label, connector, accessories, packaging and condition images. |
| Packing preparation | Protective materials, movement control and external package condition. |
| Dispatch records | Shipment details and available documentation for the selected logistics service. |
Complete part number and quantity: prevents selection of a different suffix or configuration.
Hardware and firmware details: supports comparison with the installed station and project.
Connector and label photos: helps review identity, interface and visible condition.
Destination country: allows suitable packing and shipping options to be reviewed.
