ET 200pro PM-E power module for 24 V DC load-voltage distribution, diagnostics and potential grouping

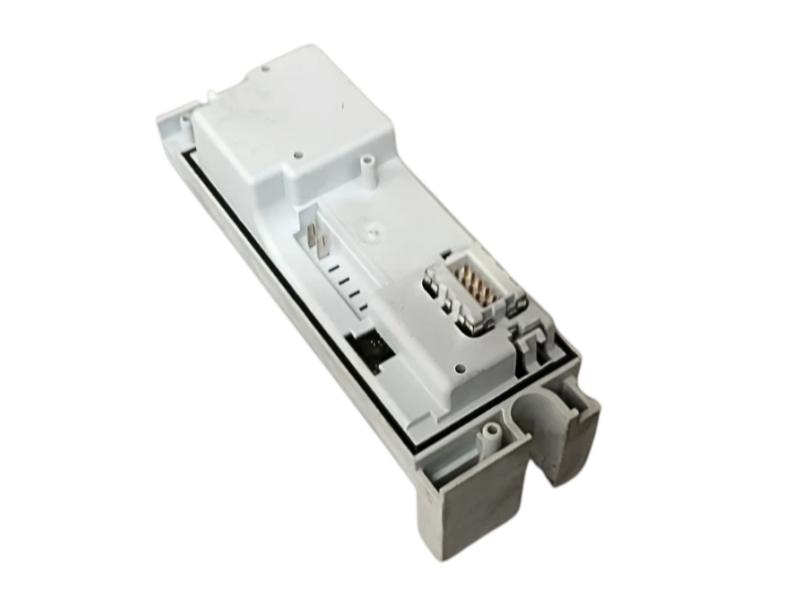

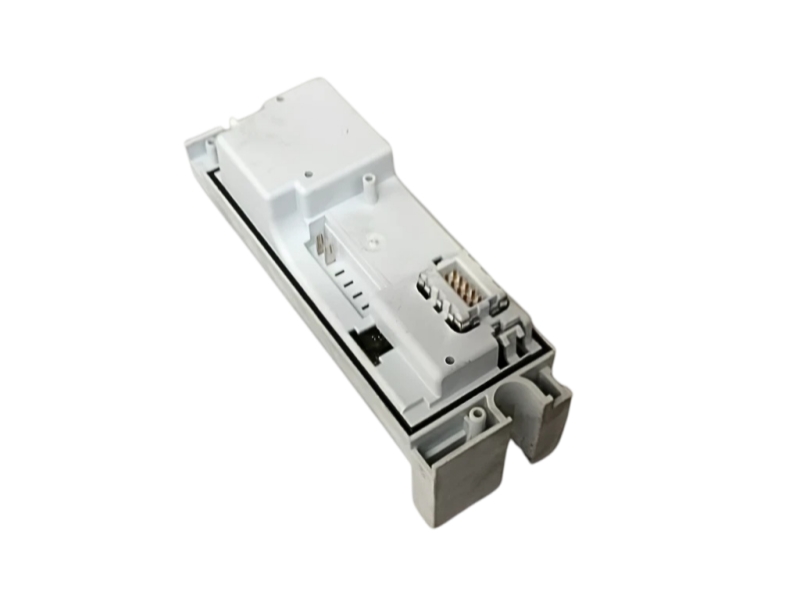

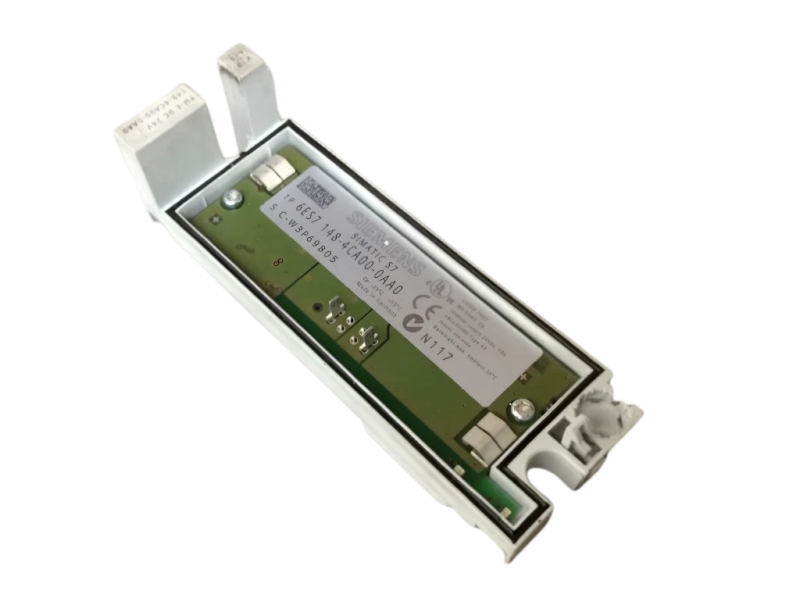

Siemens 6ES7148-4CA00-0AA0 is a SIMATIC DP ET 200pro PM-E power module that feeds and monitors the 24 V DC load voltage for electronic modules. The module includes the bus module, while the matching PM-E connection module 6ES7194-4B.00-0AA0 must be ordered separately. Integrated diagnostics report missing load voltage and support maintenance of the ET 200pro potential group.
| Manufacturer | Siemens |
| Complete Part Number | 6ES7148-4CA00-0AA0 |
| Official Product Wording | ET 200pro PM-E 24 V DC power module |
| Lifecycle Category | PM300: Active Product |
| Parameter | Siemens Data |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7148-4CA00-0AA0 |
| Product Family | SIMATIC DP, ET 200pro PM-E |
| Rated Load Voltage 2L+ | 24 V DC |
| Short-Circuit Protection | Yes, via exchangeable fuse in the power module |
| Reverse-Polarity Protection | Yes, against destruction |
| Input Current from 2L+ | 3 mA maximum |
| Current-Carrying Capacity | 10 A maximum up to 55 °C on ET 200pro internal busbars |
| Typical Power Loss | 0.1 W |
| Diagnostic Function | Yes; diagnostic information readable |
| Monitored Condition | Missing load voltage |
| Status Indication | Load-voltage monitoring and group error SF LED |
| Potential Separation | Between load voltage and backplane bus: Yes |
| Isolation Test Voltage | 707 V DC type test |
| Degree of Protection | IP65 / IP67 |
| Dimensions (W x H x D) | 45 x 130 x 35 mm |
| Approximate Weight | 140 g |
| Included Component | Bus module |
| Required Separate Component | PM-E connection module 6ES7194-4B.00-0AA0 |
The PM-E module is used within ET 200pro distributed I/O stations to introduce or subdivide a 24 V DC load-voltage potential group for downstream electronic modules. It is appropriate where field-mounted IP65/IP67 hardware and readable load-voltage diagnostics are required.
The power module is not the external PM-E connection module. A compatible 6ES7194-4B.00-0AA0 connection-module variant must be selected separately according to the cabling method and station design.
