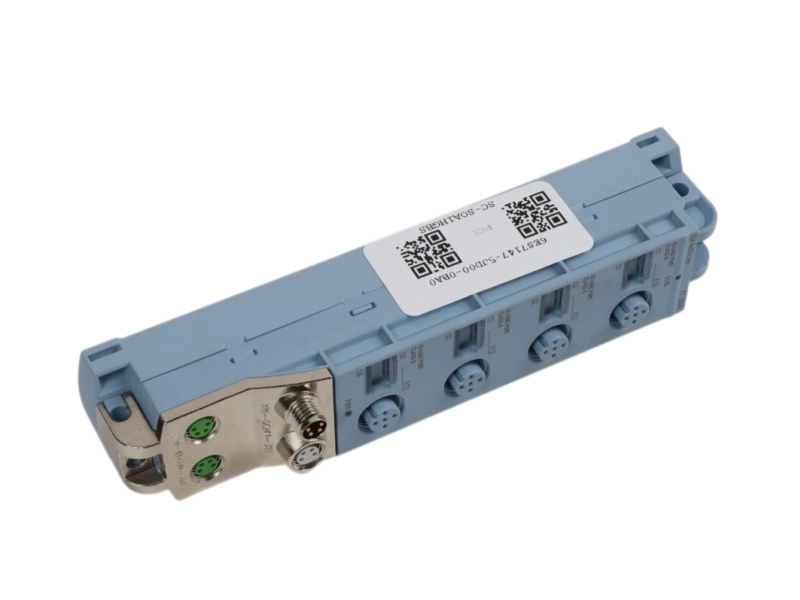

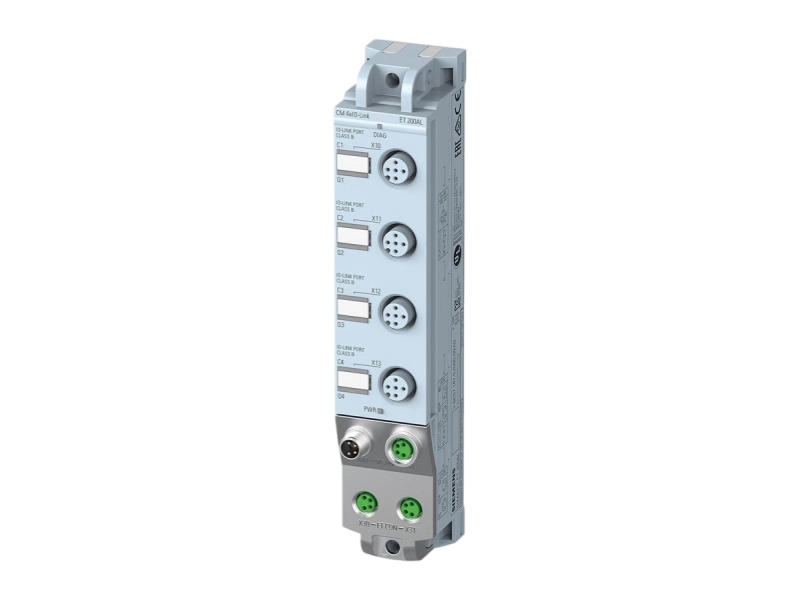

Rugged ET 200AL communication module with four IO-Link master ports, M12 device connections and IP65/67 protection.
Siemens 6ES7147-5JD00-0BA0 is a SIMATIC ET 200AL CM 4x IO-Link communication module for connecting up to four IO-Link devices in decentralized field installations. All four ports can operate simultaneously and support IO-Link COM1, COM2 and COM3 transmission rates.
The module also supports DI and DQ operating modes, provides parameter storage for each port and uses sealed M12 and M8 connections. Its IP65/67 enclosure and -30 to +55 °C operating range suit machine-mounted applications outside the control cabinet.
| Manufacturer | Siemens |
|---|---|
| Complete part number | 6ES7147-5JD00-0BA0 |
| Product family | SIMATIC ET 200AL CM IO-Link |
| Official product lifecycle | Product Cancellation |
| Official successor | 6ES7147-5JD01-0BA0 |
| Official reference | Siemens SiePortal and Siemens technical documentation for the exact order number |
| Product designation | SIMATIC ET 200AL CM 4x IO-Link, 4x M12 |
|---|---|
| IO-Link ports | 4; all four simultaneously controllable |
| IO-Link versions | Protocol 1.0 and 1.1 |
| Transmission rates | COM1: 4.8 kBaud; COM2: 38.4 kBaud; COM3: 230 kBaud |
| Operating modes | IO-Link, DI and DQ; DQ up to 100 mA |
| Process data | 32 bytes input and 32 bytes output per port; 132 bytes input and 128 bytes output per module |
| Parameter memory | 2 kbytes per port |
| Load voltages | 1L+ and 2L+: 24 V DC, permissible 20.4 to 28.8 V DC |
| Connections | 4 × M12 5-pole for devices; M8 4-pole supply; shielded M8 ET-Connection |
| Degree of protection | IP65/67 |
| Operating temperature | -30 to +55 °C |
| Dimensions (W × H × D) | 30 × 159 × 40 mm |
| Approximate module weight | 145 g; current Siemens portal net weight 0.169 kg |
| Engineering | STEP 7 TIA Portal V13 SP1 or higher; STEP 7 V5.5 SP4 Hotfix 3; GSDML V2.3.1 |
Connects intelligent sensors and actuators through four independently configured IO-Link ports.
Provides IP65/67 protection for decentralized installation close to the production process.
Ports can be configured for IO-Link, digital input or limited digital-output operation as required.
Verify ET 200AL station architecture, firmware, TIA Portal or STEP 7 version, GSD/GSDML data, port mode, Class A or Class B device wiring, process-data length and 1L+/2L+ loading before ordering.
The official successor is 6ES7147-5JD01-0BA0. Compare hardware/firmware functionality, device integration, port parameters and the existing project before migration; the newer order number should not be treated as automatically drop-in compatible.
Official Siemens status: Product Cancellation.
Siemens currently lists Product Cancellation for this exact order number and identifies 6ES7147-5JD01-0BA0 as the successor. Confirm exact hardware and firmware status, sealed connector condition and project compatibility for spare-part procurement.
It is a four-port IO-Link master communication module for the SIMATIC ET 200AL distributed I/O system.
It provides four IO-Link master ports, all of which can be controlled simultaneously.
It supports COM1 at 4.8 kBaud, COM2 at 38.4 kBaud and COM3 at 230 kBaud.
Its IP65/67 rating and sealed connections support machine-mounted use when installation requirements are met.
The current Siemens SiePortal status is Product Cancellation.
It is the official successor, but firmware, project data and port configuration must be compared before replacement.
Send the exact part number, required quantity, destination and installed system details. We will check supply options, compatibility, global delivery and applicable warranty terms.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
Practical support from exact-model identification and compatibility review through inspection, packing and international delivery.
Our office team checks the complete order code, quantity, destination and documentation requirements before sourcing begins.
Received items are checked for model marking, housing condition, connector integrity and traceability before packing.
Protective packing is selected for the equipment type, route and delivery method, with shipment tracking arranged for global destinations.
| Stage | What We Check | Customer Value |
|---|---|---|
| 1. Identification | Manufacturer, complete part number, suffix and nameplate details | Reduces incorrect-model risk |
| 2. Compatibility review | ET 200AL station layout, firmware, engineering version, IO-Link device list, port modes, M12/M8 wiring and 1L+/2L+ loading | Supports informed replacement decisions |
| 3. Supply verification | Available condition, quantity, lead time and warranty basis | Clarifies commercial expectations |
| 4. Inspection and packing | Markings, visible condition, connectors, packing and dispatch records | Improves delivery traceability |
Share the required quantity, destination, ET 200AL station details, engineering version, IO-Link device list, port modes and M12/M8 wiring. We will check availability, compatibility, global delivery options and applicable warranty terms.
