4 AI TC High Feature with verified Siemens configuration data for engineering, maintenance and procurement review.

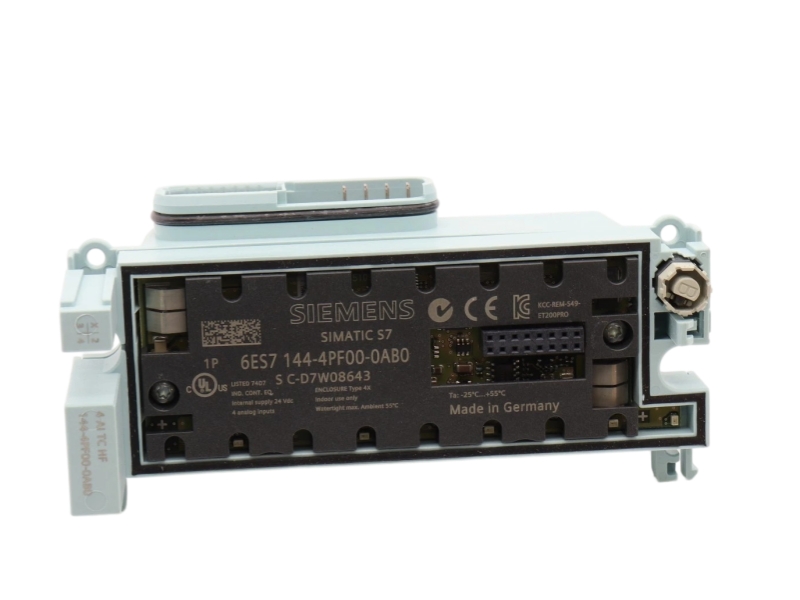

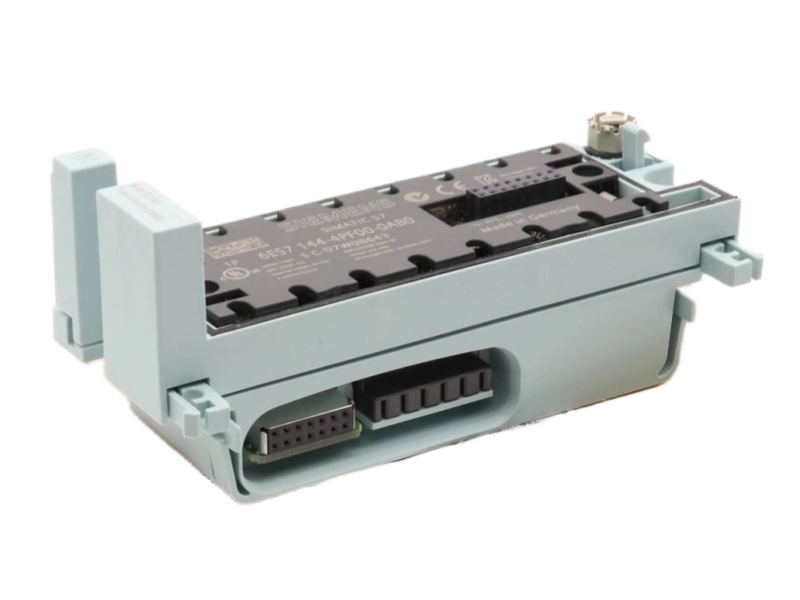

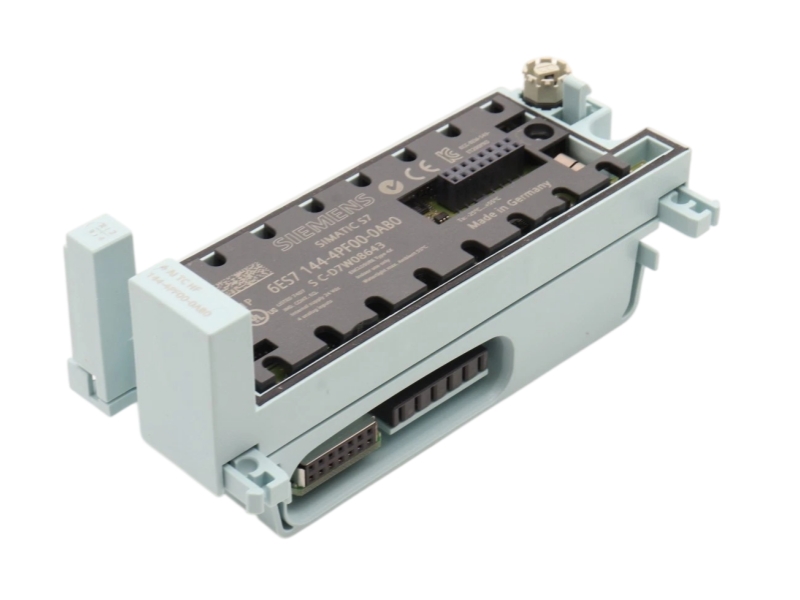

The Siemens 6ES7144-4PF00-0AB0 is a SIMATIC ET 200pro High Feature electronic module with four analog inputs for thermocouples and ±80 mV voltage signals. Supported thermocouple types are B, E, J, K, L, N, R, S and T, with channel diagnostics for maintenance visibility.
The bus module is included, while the matching 6ES7194-4..00-0AA0 IO connection module must be ordered separately. Official technical data specifies 24 V DC supply, 8-byte maximum address space and selectable °C, °F or K temperature units. Procurement must confirm the thermocouple type, compensation design, connection module, ET 200pro station and engineering configuration.
| Manufacturer | Siemens |
|---|---|
| Complete article number | 6ES7144-4PF00-0AB0 |
| Product designation | 4 AI TC High Feature |
| Official lifecycle status | PM300: Active Product |
| Country of origin | Germany |
| Parameter | Official value |
|---|---|
| System | SIMATIC ET 200pro |
| Module type | Electronic analog input module, High Feature |
| Analog inputs | 4 |
| Thermocouple types | B, E, J, K, L, N, R, S and T |
| Voltage range | -80 to +80 mV |
| Input resistance | 10 MΩ |
| Rated supply | 24 V DC |
| Current from 1L+ | 34 mA typical |
| Current from 3.3 V backplane bus | 20 mA typical |
| Power loss | 0.7 W typical |
| Maximum address space | 8 bytes |
| Temperature units | °C, °F or K selectable |
| Diagnostics | Channel diagnostics supported |
| Included component | Bus module included |
| Required separate component / weight | IO connection module 6ES7194-4..00-0AA0; 0.177 kg |
Measure supported B, E, J, K, L, N, R, S or T thermocouples in distributed ET 200pro stations.
Use the documented ±80 mV input range for compatible millivolt-level process signals.
Channel diagnostics support fault localization in machine, process and utility temperature-monitoring applications.
Match 6ES7144-4PF00-0AB0 and distinguish it from other ET 200pro analog input variants.
Confirm thermocouple standard, polarity, compensation method, temperature unit and expected measurement range.
The bus module is included, but IO connection module 6ES7194-4..00-0AA0 must be selected separately.
Review ET 200pro interface module, address allocation, parameterization, diagnostics and 24 V DC supply.
Siemens Industry Mall identifies the complete article number 6ES7144-4PF00-0AB0 as PM300: Active Product. Lifecycle, delivery and successor information should be rechecked against the current Siemens record at the time of procurement.
It is a Siemens ET 200pro four-channel High Feature thermocouple and ±80 mV analog input module.
Official data lists types B, E, J, K, L, N, R, S and T.
Yes. Siemens states that the bus module is included.
No. The matching 6ES7194-4..00-0AA0 IO connection module must be ordered separately.
Siemens lists the complete article number as PM300: Active Product.
