Siemens 6ES7134-7TD00-0AB0 ET 200iSP 4 AI HART Module

Siemens 6ES7134-7TD00-0AB0 four-channel HART input module for two-wire transmitters

Inquiry now

Siemens 6ES7134-7TD00-0AB0 ET 200iSP 4 AI HART Module

Four-channel HART analog input module for ET 200iSP two-wire transmitters.

Product Overview

Siemens 6ES7134-7TD00-0AB0 is a SIMATIC ET 200iSP electronic module with four analog current inputs for HART two-wire transmitters. Siemens specifies HART protocol version 6.0, short-circuit-proof transmitter supplies and support for current measurement rather than voltage, thermocouple or resistance inputs. The module is intended for distributed process instrumentation where channel diagnostics and transmitter communication form part of the control-system design. Procurement and replacement planning should verify the complete order code, hardware and firmware versions, terminal assignment, power-bus conditions, hazardous-area approval requirements, HART configuration and the assigned ET 200iSP station project before installation.

Commercial Status

Commercial Item	Status
Product Condition	Original new
Availability	In stock
Official Lifecycle	PM300: Active Product
Warranty	With 1 year warranty
Shipping	Worldwide shipping options available

Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.

Verified Technical Data

Field	Verified Information
Manufacturer	Siemens
Complete Part Number	6ES7134-7TD00-0AB0
Product Type	SIMATIC ET 200iSP Electronic Module
Product Designation	4AI I 2WIRE HART
Analog Inputs	4 current inputs
Supported Transmitters	HART two-wire transmitters
HART Protocol	Version 6.0
Supply Voltage	20.4 to 28.8 V DC
Current Consumption	Typically 280 mA; maximum 320 mA from the power bus
Transmitter Supply	Short-circuit-proof; maximum 23 mA per channel
Power Loss	Typically 2.7 W
Cycle Time	Maximum 120 ms at 50/60 Hz interference suppression
Hardware Functional Status	17
Firmware Version	V3.0.4
Mounting	Rail and front mounting supported
Net Weight	0.341 kg
Country of Origin	Germany

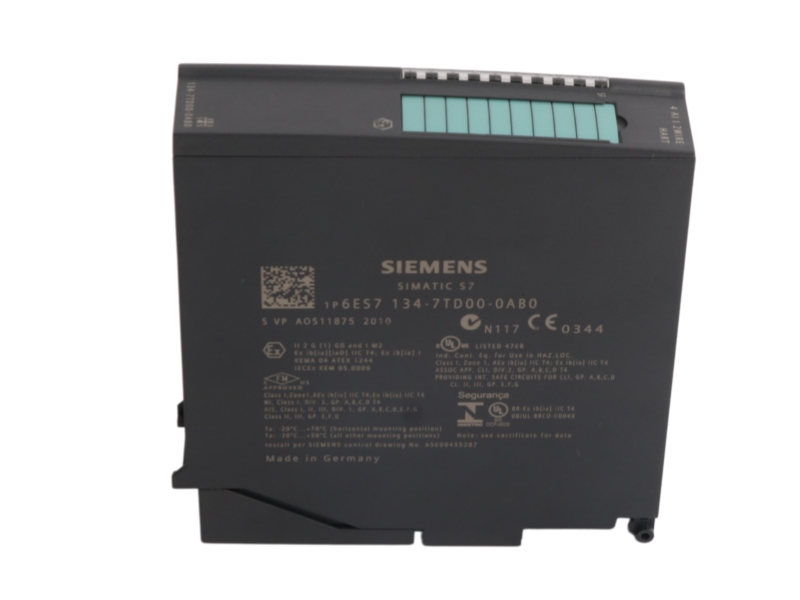

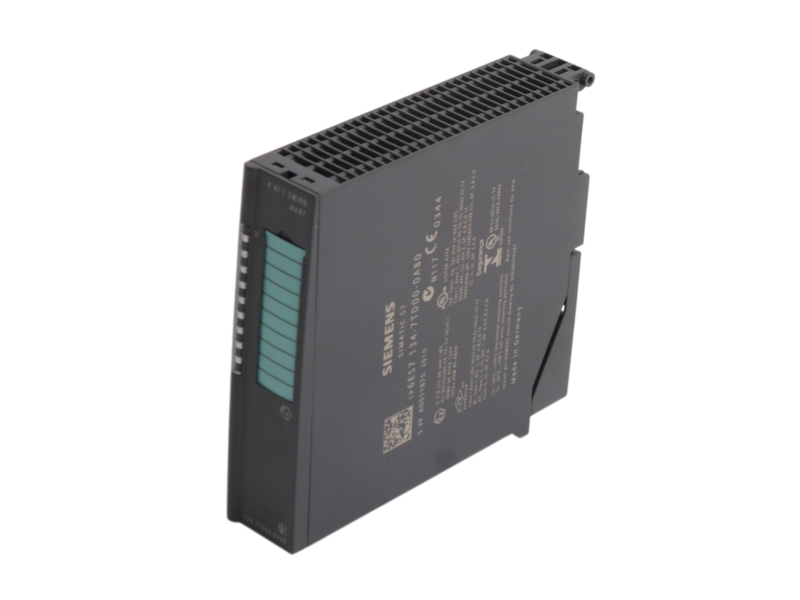

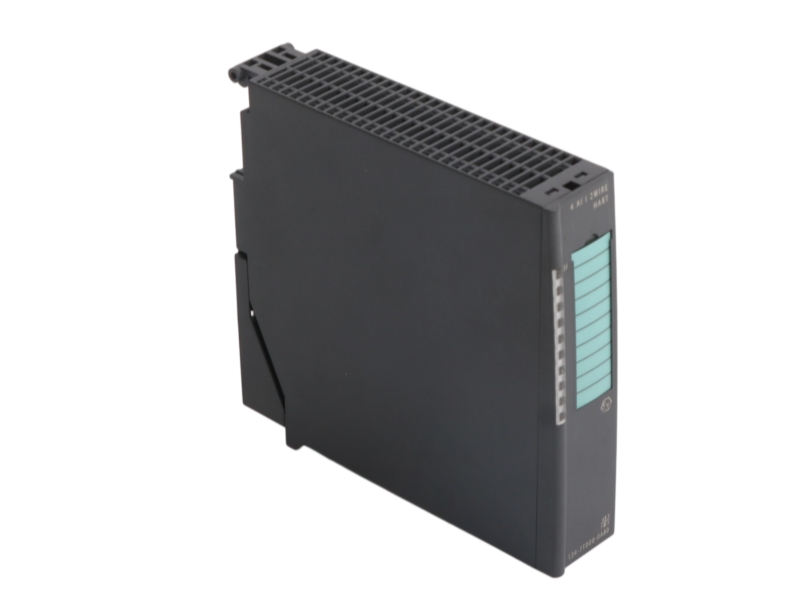

Product Photo Evidence

System Fit and Applications

Application Area	Procurement Guidance
Control system	SIMATIC ET 200iSP distributed I/O stations.
System role	Acquires four analog current signals and supports HART communication with two-wire field transmitters.
Typical use	Process measurements in approved industrial or hazardous-area instrumentation arrangements.
Maintenance purpose	Replacement of the exact electronic-module position while retaining station and channel configuration.
Configuration importance	Terminal assignment, power-bus limits, HART setup and hazardous-area approvals must match the installed design.

Compatibility and Procurement Checks

Before purchasing or replacing this exact item, review the configuration evidence that affects installation and system operation:

Complete part number and 0AB0 suffix
Hardware functional status and firmware version
Four-channel current-input assignment
HART transmitter type and protocol configuration
Power-bus voltage and current budget
Terminal module, wiring and hazardous-area documentation
ET 200iSP station configuration and channel parameters
Readable product label and packaging photographs

Lifecycle Note

Siemens identifies 6ES7134-7TD00-0AB0 as PM300: Active Product. The active lifecycle designation does not guarantee compatibility with every ET 200iSP installation. Confirm firmware, terminal assignment, HART configuration, power-bus limits and hazardous-area documentation for the exact station.

Frequently Asked Questions

What does 6ES7134-7TD00-0AB0 identify?

It identifies a Siemens SIMATIC ET 200iSP four-channel analog current input electronic module for HART two-wire transmitters.

How many analog input channels are provided?

The module provides four analog current input channels.

Which HART version is supported?

Siemens specifies HART protocol version 6.0.

Which input types are supported?

The official technical data confirms current input support; voltage, thermocouple and resistance inputs are not provided for this module.

What is the official lifecycle status?

Siemens identifies the exact order code as PM300: Active Product.

What should be checked before replacement?

Verify firmware, hardware status, terminal assignment, power-bus capacity, HART parameters, hazardous-area approvals and the ET 200iSP station project.
