An eight-channel 24 VDC High Feature source-output module for SIMATIC ET 200SP distributed I/O systems.

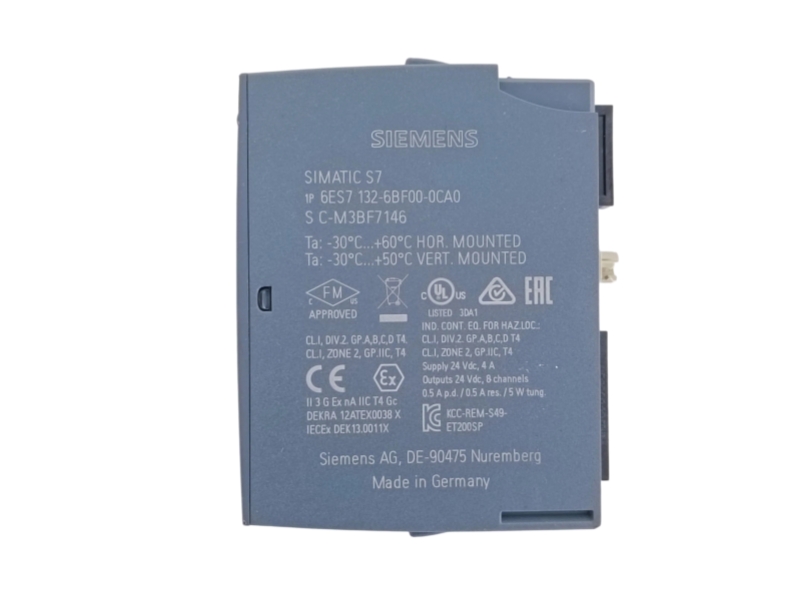

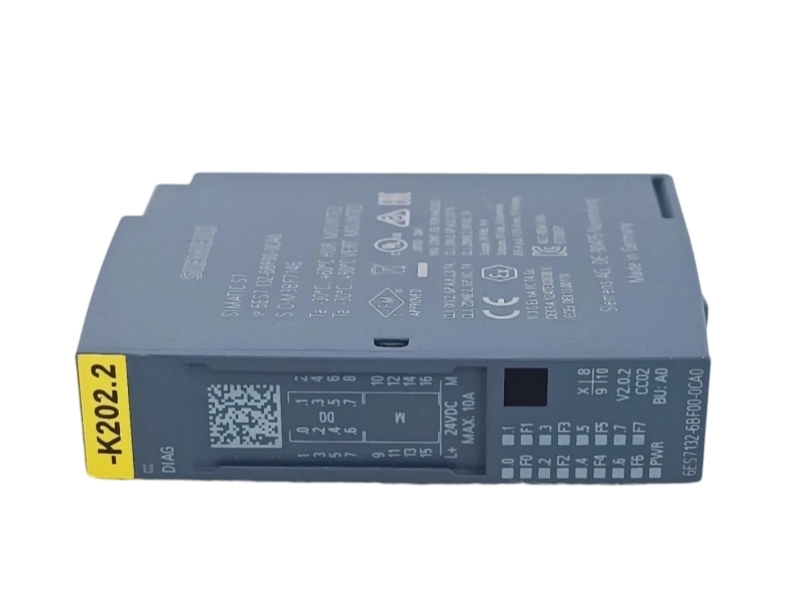

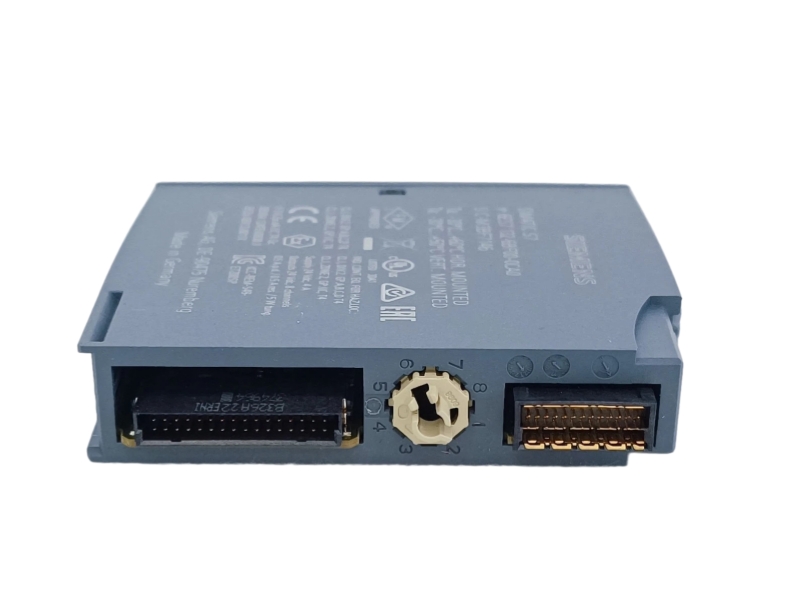

The Siemens 6ES7132-6BF00-0CA0 is a SIMATIC ET 200SP digital output module designated DQ 8x24VDC/0.5A HF. It provides eight source outputs (PNP, P-switching), each rated up to 0.5 A, and fits BaseUnit type A0 with color code CC02.
Siemens documents configurable channel diagnostics, substitute values, isochronous operation and safety-related shutdown. The module is suitable for solenoid valves, DC contactors and indicator lights when the load, wiring and installation conditions remain within the official module limits.
| Manufacturer | Siemens |
| Article Number | 6ES7132-6BF00-0CA0 |
| Product Identity | SIMATIC ET 200SP DQ 8x24VDC/0.5A HF |
| Official Lifecycle | Not confirmed in an accessible current exact-number Siemens lifecycle page |
| Product Type | Digital output module, High Feature |
| System Family | SIMATIC ET 200SP |
| Outputs | 8 digital source outputs (PNP, P-switching) |
| Rated Output Voltage / Current | 24 VDC / 0.5 A per channel |
| Maximum Module Output Current | 4 A |
| BaseUnit / Color Code | BU type A0 / CC02 |
| Switching Frequency, Resistive Load | Up to 100 Hz |
| Diagnostics | Supply voltage, wire break, short circuit and group error |
| Isochronous Operation | Yes; TCO min. 48 µs, bus cycle TDP min. 500 µs |
| Engineering Note | Check firmware/function dependencies and HSP 0163 V2.0 for the applicable TIA Portal configuration |
Only exact-model Siemens information or explicitly identified verification limits are presented.
Provides eight 24 VDC PNP output channels in modular ET 200SP stations.
Suitable for documented solenoid valves, DC contactors and indicator lights within channel limits.
Supports configurable diagnostics, substitute values and isochronous operation for controlled automation tasks.
Current lifecycle wording for the exact 6ES7132-6BF00-0CA0 order number was not confirmed in an accessible Siemens exact-number product page. No Active, PM490, Discontinued or other lifecycle label is assigned here. Siemens publishes a newer 6ES7132-6BF01-0CA0 order number, but its lifecycle is not transferred to this model.
It is a SIMATIC ET 200SP High Feature digital output module with eight 24 VDC, 0.5 A PNP source outputs.
Siemens specifies BaseUnit type A0 and color code CC02.
The official manual lists solenoid valves, DC contactors and indicator lights within the documented electrical limits.
The module supports diagnostics for supply voltage, wire break, short circuit and group error, plus configurable substitute values.
Verify the module firmware, feature set, STEP 7/TIA Portal version and any required HSP such as HSP 0163 V2.0.
