Four-channel High Feature 24 V DC electronic module for distributed input acquisition.

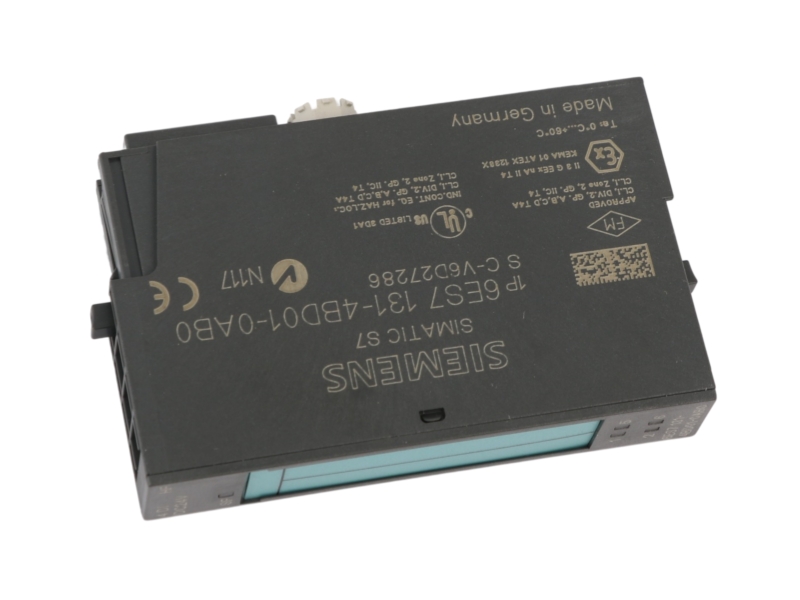

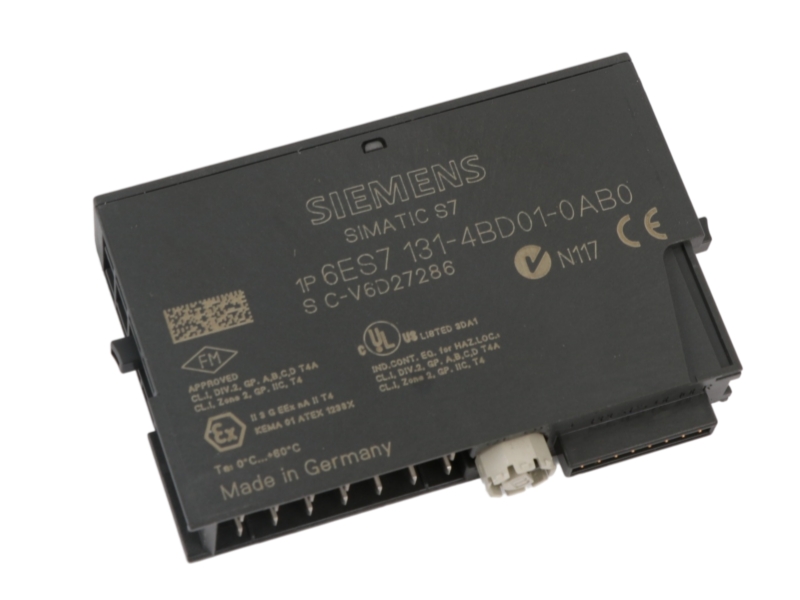

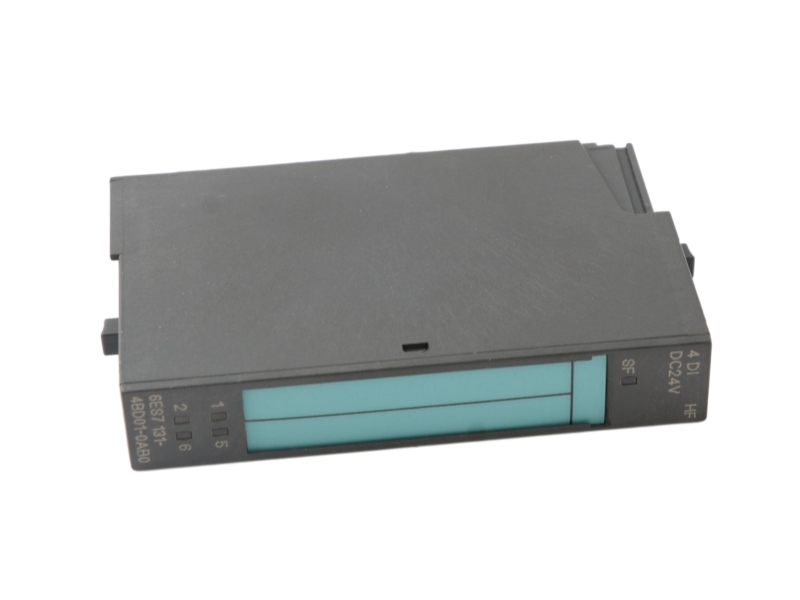

Siemens 6ES7131-4BD01-0AB0 is a SIMATIC DP electronic module for the ET 200S distributed I/O system. It provides four High Feature digital inputs for 24 V DC signals in a 15 mm-wide module. The configurable input delay supports 0.1, 0.5, 3, and 15 ms settings, allowing commissioning engineers to match signal filtering to the application. Siemens specifies short-circuit diagnostics for the encoder supply and an SF LED for group fault indication. The article is supplied as a five-unit packaging quantity and is identified by Siemens as a spare part.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | PM410: Product cancellation; product is cancelled since 2023-10-01 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options are checked for each order. |
Condition, availability, and warranty are Stockoems commercial terms and are not manufacturer statements.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7131-4BD01-0AB0 |
| Product Type | ET 200S digital input electronic module |
| Digital Inputs | 4 |
| Rated Input Voltage | 24 V DC |
| Input Characteristic | IEC 61131, Type 1 |
| Parameterizable Input Delay | 0.1 / 0.5 / 3 / 15 ms |
| Typical Input Current at Signal 1 | 8 mA |
| Address Space | 1 byte; 4 bits with packing |
| Module Width | 15 mm |
| Approximate Module Weight | 35 g |
| Packaging Quantity | 5 units per package |
The four input channels acquire 24 V DC discrete signals. Parameterizable delay supports filtering choices during ET 200S configuration.
Encoder-supply short-circuit diagnostics and the SF group-fault LED assist commissioning and fault isolation.
Siemens lists this article as PM410: Product cancellation, effective since 2023-10-01, and identifies it as a spare part. This wording is preserved without converting it to a different lifecycle status.
It is a four-channel High Feature 24 V DC digital input electronic module for SIMATIC ET 200S.
Siemens specifies 0.1, 0.5, 3, and 15 ms as parameterizable settings.
The official lifecycle wording is PM410: Product cancellation, effective since 2023-10-01.
The official product description states five units per packaging quantity.
Confirm the full suffix, ET 200S hardware fit, terminal and power-module arrangement, project configuration, quantity, and label photos.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Structured verification, documentation, packaging, and after-sales coordination for Siemens 6ES7131-4BD01-0AB0 procurement.
Model and suffix verification checks every character of the requested article. Condition confirmation records the agreed commercial condition, while product and label photo confirmation supports visual review before dispatch.
Technical compatibility review compares the requested ET 200S application, terminal and power-module arrangement, channel requirements, and project configuration without treating another part number as an automatic substitute.
Protective packaging, worldwide shipping, shipment tracking, and customs documentation are coordinated for the confirmed order and destination.
Written warranty terms, a documented return authorization process, and a defined after-sales response path help purchasers manage exceptions after delivery.
| Control Point | Stockoems Handling |
|---|---|
| Inspection | Visual condition, identifying marks, supplied quantity, and order details are checked against the agreed scope. |
| Label verification | The complete part number and suffix are compared with the purchase request and available photo evidence. |
| Packaging | Protective materials are selected to reduce movement, impact, dust, and moisture exposure in transit. |
| Logistics and documents | Shipping coordination, tracking information, and customs documentation are prepared for the confirmed destination. |
| After-sales communication | Questions, warranty terms, and return authorization requirements are handled through a documented contact path. |
Specific delivery timing and exact available quantity are confirmed only for the individual quotation.
Ask for the complete legal company identity, a traceable quotation, exact model and suffix confirmation, current product photos when available, written commercial terms, and a clear after-sales contact.
Match the supplier name, bank beneficiary, quotation, quantity, condition, warranty, Incoterms, destination, packing scope, and return process. Resolve inconsistencies in writing.
The full suffix, hardware revision where applicable, label photos, electrical and interface data, system fit, configuration requirements, and terminal or accessory compatibility should align with project documentation.
Unusually low pricing, pressure for immediate payment, refusal to provide label photos, vague warranty language, changing bank details, inconsistent company names, copied technical claims, and an unclear return address are common risk signals.
Share the complete part number, required quantity, destination country, and available product or label photos for a structured review.
