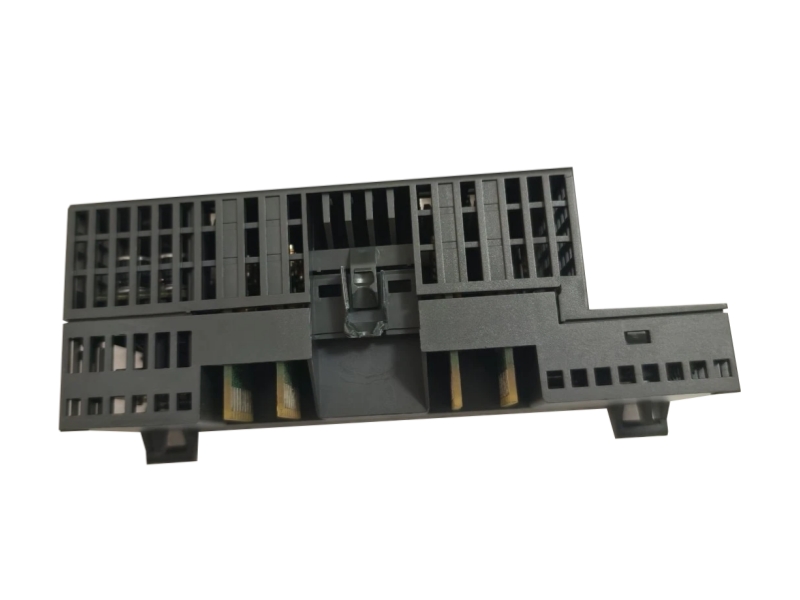

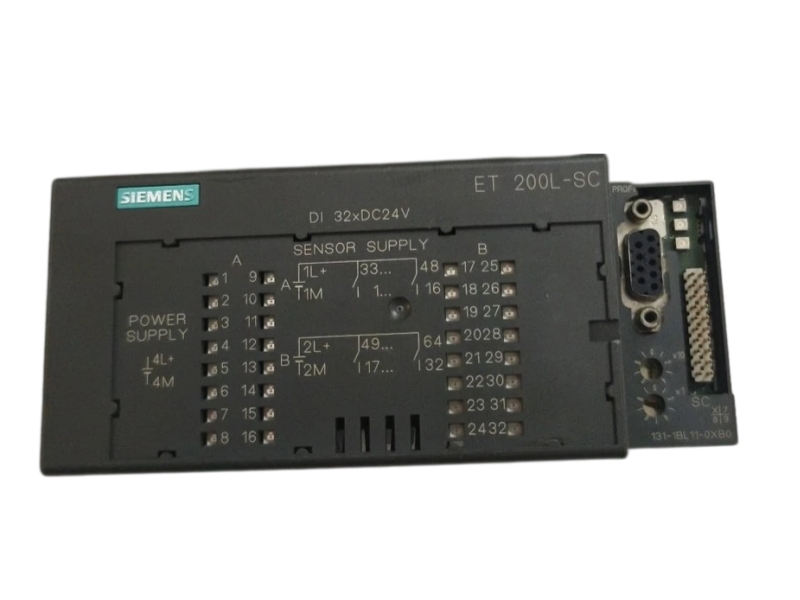

A 24 V DC ET 200L electronic block providing 32 digital inputs with documented Smart Connect expansion capability.

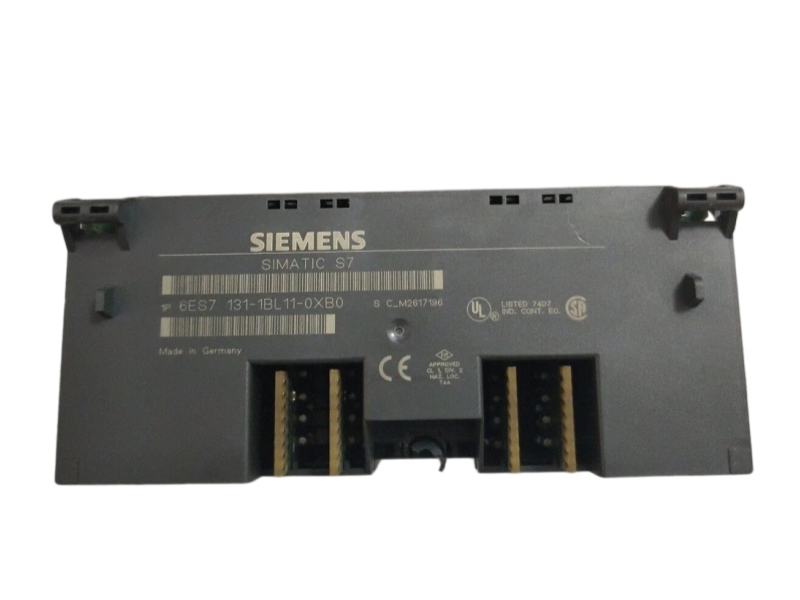

Siemens 6ES7131-1BL11-0XB0 is identified in Siemens technical product documentation as a SIMATIC DP electronic block for the ET 200L distributed I/O family. The exact description specifies 32 digital inputs for 24 V DC signals and expansion by up to 16 channels using a Smart Connect TB 16SC terminal block. Because this is an earlier ET 200L design, replacement planning should focus on the full order code, terminal-block arrangement, field wiring, station configuration and installed hardware revision.
| Order code | 6ES7131-1BL11-0XB0 |
|---|---|
| Official catalog description | SIMATIC DP electronic block for ET 200L, digital, 32 DI, 24 V DC |
| Lifecycle evidence | Official Siemens technical description confirmed |
| Procurement action | Confirm the complete -0XB0 suffix, terminal-block configuration, installed revision and ET 200L station compatibility. |
| Parameter | Official value |
|---|---|
| Product family | SIMATIC ET 200L |
| Module type | SIMATIC DP electronic block |
| Signal type | Digital input |
| Number of digital inputs | 32 |
| Input voltage class | 24 V DC |
| Expansion capability | Up to 16 additional channels |
| Expansion terminal block | TB 16SC of Smart Connect |
| System role | Distributed field-input acquisition in an ET 200L station |
| Replacement focus | Exact order code, terminal arrangement, field wiring and station configuration |
| Documentation basis | Siemens technical datasheet for 6ES7131-1BL11-0XB0 |
Document the ET 200L station address, existing terminal-block layout, all 24 V DC field circuits and any TB 16SC expansion before removing the installed module.
Verify every character and the complete -1BL11-0XB0 suffix.
Confirm the requirement for 32 base digital inputs.
Verify all connected inputs are 24 V DC circuits.
Check whether a Smart Connect TB 16SC is installed or required.
Record ET 200L address, configuration and neighboring modules.
Photograph and label terminal wiring before replacement.
It is a Siemens SIMATIC DP ET 200L electronic block with 32 digital inputs for 24 V DC.
The exact Siemens technical description specifies 32 digital inputs.
Yes. Siemens documentation states that up to 16 channels can be added using the Smart Connect TB 16SC terminal block.
Do not assume interchangeability; match the full order code, channel count, terminal arrangement and station configuration.
Record the station setup, hardware revision, terminal block, expansion hardware and every field-wire position.
Send the complete 6ES7131-1BL11-0XB0 order code, quantity, hardware or firmware details, destination and required delivery date. Our team can review visible condition, configuration fit, warranty terms and global shipping options before quotation.
For 6ES7131-1BL11-0XB0, our service workflow focuses on traceable identification, practical compatibility review, careful handling and clear communication from enquiry through dispatch.
We translate the requested 6ES7131-1BL11-0XB0 order code, 32-channel digital input module role and interface requirements into a clear sourcing brief.
Visible labels, packaging details and supplied accessories can be checked against the purchase requirement.
Industrial components are handled, protected and prepared for shipment with attention to condition and documentation.
We check the entire Siemens article number, including every suffix, before matching available units.
Channel count, 24 V DC field circuits, Smart Connect expansion, terminal arrangement and ET 200L station configuration are reviewed before supply.
Available photos, labels, accessories and packaging can be reviewed before the order is finalized.
Export packing, destination details, shipping options and delivery expectations are coordinated clearly.
Warranty scope is stated with the quotation so buyers can compare commercial risk and coverage.
Email and WhatsApp channels support fast clarification of quantities, revisions and urgent replacement needs.
| Step | Action | What we confirm |
|---|---|---|
| 01 | Requirement review | Full order code, quantity, system role, required date and destination. |
| 02 | Availability check | Stock position, visible condition, revision data and included accessories. |
| 03 | Compatibility check | 32-input requirement, 24 V DC signals, TB 16SC expansion, terminal layout, station setup and hardware revision. |
| 04 | Quotation and dispatch | Warranty statement, commercial terms, packing method and shipping option. |
Send the full model, requested quantity, current device photos or firmware information, delivery country and target date. We will respond with the next verification steps and available supply options.
