A compact display-equipped logic module for small automation tasks using high-voltage AC/DC inputs and relay outputs.

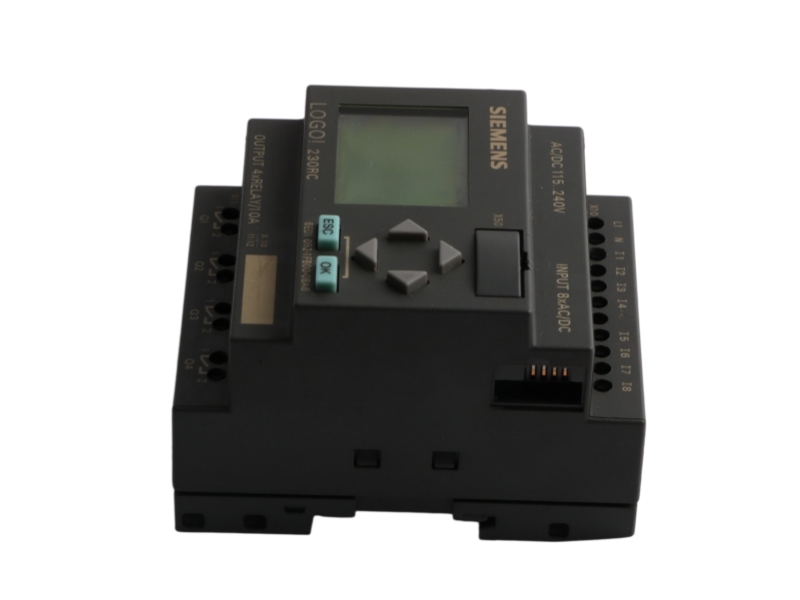

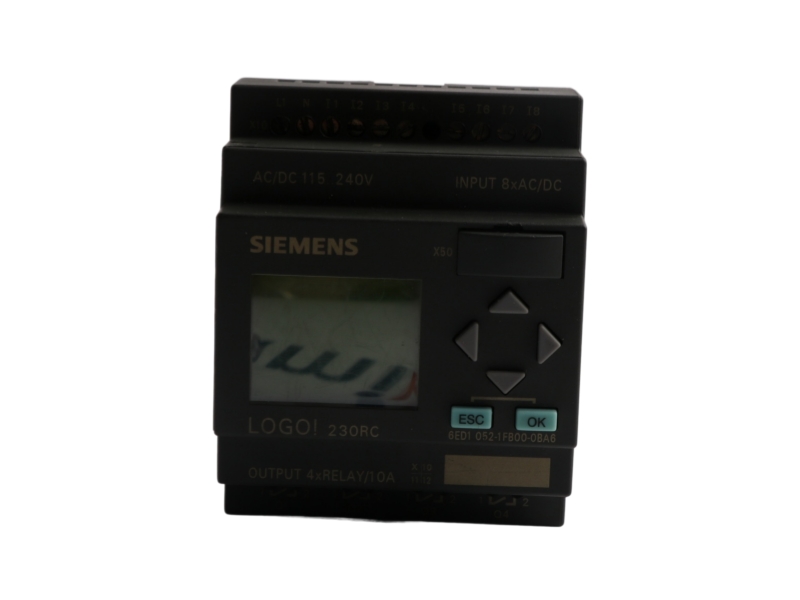

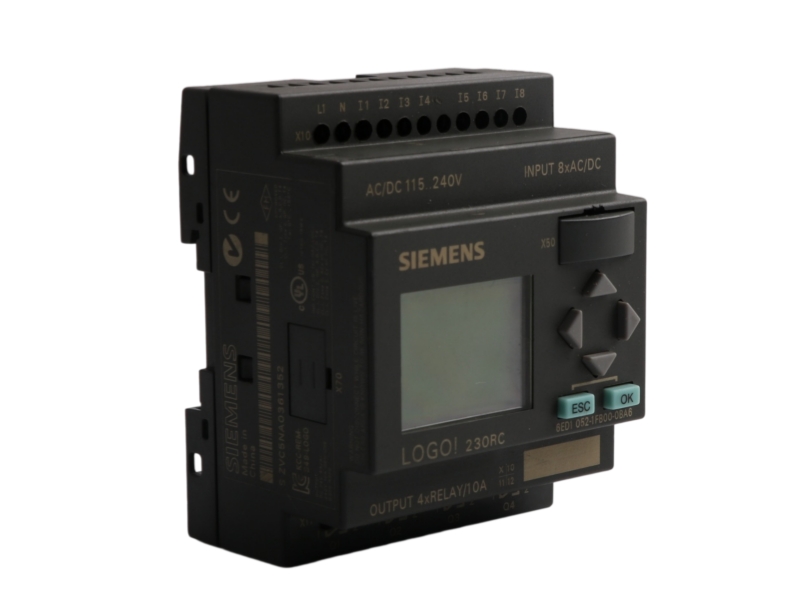

The Siemens 6ED1052-1FB00-0BA6 is a LOGO! 230RC base module from the 0BA6 generation. It combines a local display and keypad, eight digital inputs, four relay outputs, a real-time clock and modular expansion capability for compact machine and building-control tasks.
| Item | Verified identification |
|---|---|
| Manufacturer | Siemens |
| Product line | LOGO! / 230RC / Compact Logic |
| Product designation | LOGO! 230RC Logic Module |
| Article number | 6ED1052-1FB00-0BA6 |
| Country of origin | GERMANY |
| Parameter | Officially documented value |
|---|---|
| Supply voltage | 115 ... 240 V AC/DC |
| Permissible AC range | 85 ... 265 V AC, 47 ... 63 Hz |
| Permissible DC range | 100 ... 253 V DC |
| Digital inputs | 8 |
| High-speed inputs | 0 |
| Digital outputs | 4 relay outputs |
| Program capacity | Up to 200 function blocks |
| Dimensions (W × H × D) | 72 × 90 × 55 mm |
| Local operation | Integrated display and keypad |
| Clock backup at 25 °C | Typically 80 hours without battery card |
Use current photographs to verify the exact order number, interface configuration and physical condition before procurement approval.
 |
 |
 |
| Application | Engineering relevance |
|---|---|
| Small machine control | Implements interlocks, sequences, timers and simple relay logic in compact equipment. |
| Building automation | Supports lighting, ventilation, pump and time-switching functions. |
| Panel modernization | Replaces relay logic where the existing application matches LOGO! 230RC voltage and I/O. |
| Auxiliary process control | Handles local standalone control with display-based status and parameter access. |
For lifecycle planning, preserve the exact 0BA6 article number and verify current support directly with Siemens. Any migration to a later LOGO! generation requires an engineering review of voltage class, I/O, expansion modules and program conversion.
The module provides eight digital inputs and four relay outputs.
Yes. Siemens specifies 115 ... 240 V AC/DC, with the documented permissible ranges shown above.
Yes. The LOGO! 230RC base module includes a display and local control keypad.
No. Confirm voltage, I/O, expansion modules, program conversion and panel wiring before migration.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
A structured review for exact identity, visible hardware condition, interface integrity and installed-system fit.
We compare the complete Siemens code, product marking and visible revision details.
Current photos can document supply voltage, relay loads, expansion modules and stored LOGO! program.
Sensitive industrial hardware is prepared for controlled handling and global shipment.
| Step | What we check | Customer input |
|---|---|---|
| 1 · Part identification | Full article number and visible product marking | |
| 2 · System fit | supply voltage, relay loads, expansion modules and stored LOGO! program | |
| 3 · Commercial review | Quantity, availability and warranty terms | |
| 4 · Dispatch planning | Packing, shipment route and documentation |
Complete part number, quantity, destination, program backup, wiring diagram, expansion list and full module photos.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
