A 32-channel 24 V DC digital input module for high-density process signal acquisition in ET 200PA SMART+ stations.

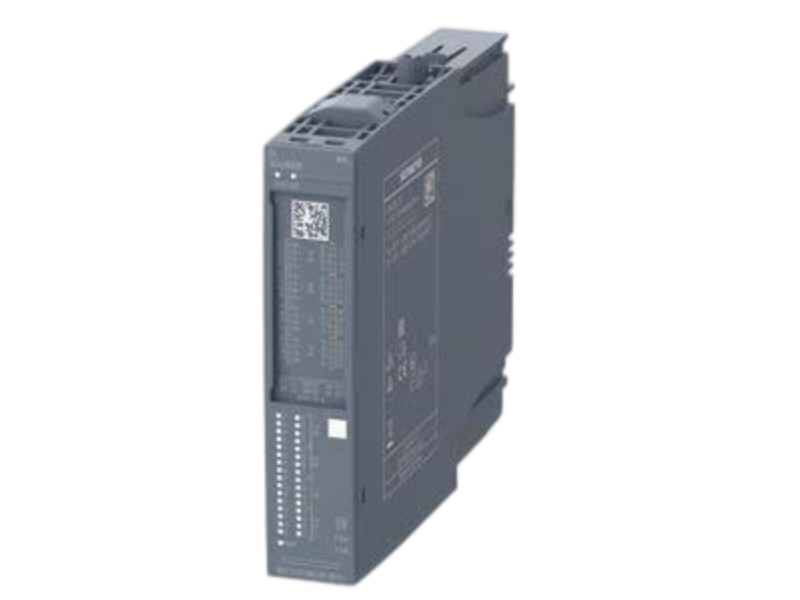

The Siemens 6DL1161-6BL00-0PH1 is the ET 200PA SMART+ DI 32x24VDC PA digital input module. It collects 32 discrete 24 V DC process signals, supports channel-by-channel diagnostic alarms and hardware interrupts, and can provide 32 encoder-supply outputs when used with a P0 terminal block. The module is engineered for PCS 7 and PCS neo process automation environments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6DL1161-6BL00-0PH1 |
| Product Family | ET 200PA SMART+ |
| Product Type | DI 32x24VDC PA digital input module |
| Digital inputs | 32 channels |
|---|---|
| Rated supply voltage | 24 V DC; permissible range 19.2 to 28.8 V |
| Current consumption | 11.5 mA rated; 15 mA maximum |
| Encoder supply | 32 outputs with P0 terminal block; minimum output voltage 19.2 V |
| Operating modes | Digital input mode supported; counter, oversampling and MSI not supported |
| Diagnostics | Supply-voltage monitoring module-wise; wire-break diagnostics channel-by-channel |
| Status indication | PWR, channel-status and module-diagnostics LEDs |
| Isolation test | 1,500 V DC for 1 minute; channels isolated from backplane bus |
| Engineering support | PCS 7 V9.1 SP2 and PCS neo V4.1 |
| Firmware update | Supported |
| Operating temperature | Horizontal: -40 to +70 °C; vertical: -40 to +60 °C |
| Dimensions (W × H × D) | 22.5 × 115 × 138 mm |
| Weight | Approximately 150 g |
Acquires dense banks of 24 V DC contacts for permissive, trip and sequence logic in process units.
Connects discrete transmitters, switches and contact outputs to an ET 200PA SMART+ remote I/O station.
Reduces cabinet footprint where 32 digital input channels are required in one module position.
It is a Siemens ET 200PA SMART+ 32-channel 24 V DC digital input module.
The module provides 32 digital input channels.
Yes. With a P0 terminal block it provides 32 encoder-supply outputs.
Siemens lists PCS 7 V9.1 SP2 and PCS neo V4.1.
Confirm the exact MLFB, terminal block, station interface, 24 V supply and engineering version.
Send the complete order number and installed-system details for stock verification, compatibility review, warranty terms and global delivery options.
