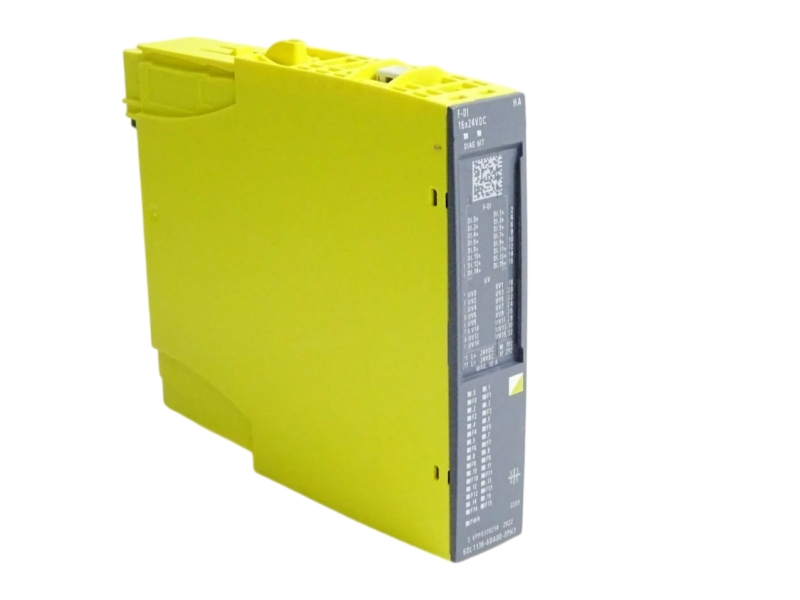

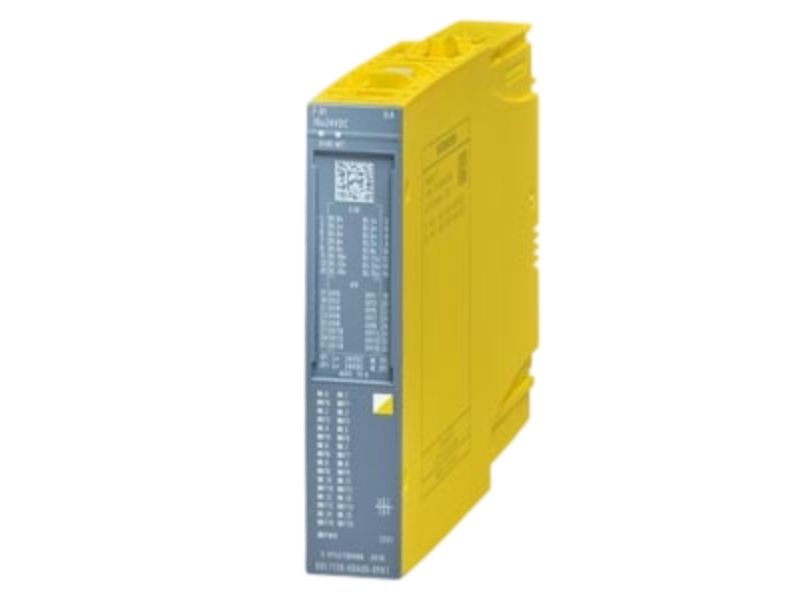

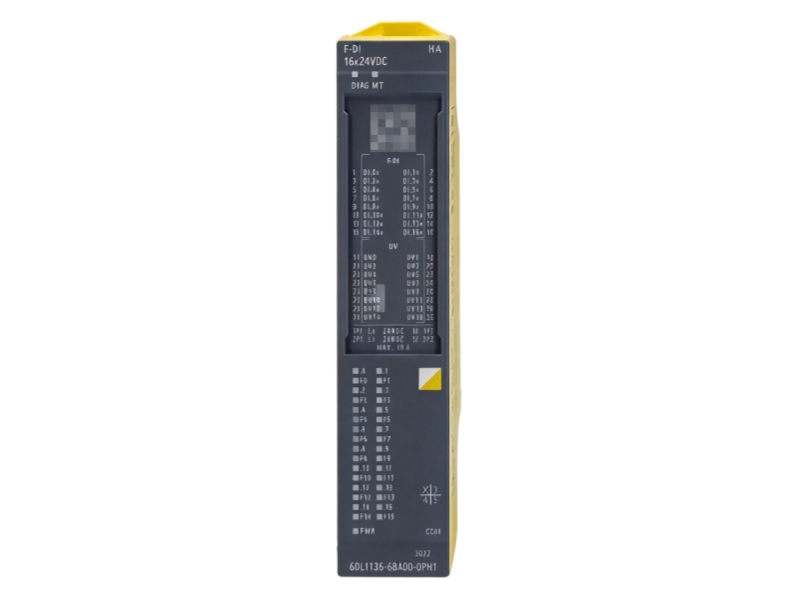

ET 200SP HA safety-oriented F-DI 16x24 V DC module
Siemens 6DL1136-6BA00-0PH1 is a safety-oriented digital input module for the SIMATIC ET 200SP HA distributed I/O platform. It provides sixteen 24 V DC inputs for acquiring safety-relevant field signals in process automation applications. The module supports SIL 3 according to IEC 61508 and performance level e according to ISO 13849-1, with channel diagnostics for maintenance visibility. It is intended for use with the specified H1 or M1 terminal block. For replacement procurement, verify the complete order code, terminal block type, channel wiring, safety configuration, firmware requirements, and the installed station documentation.
| Commercial Item | Current Information |
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM300: Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Technical Field | Verified Information |
| Manufacturer | Siemens |
| Complete Part Number | 6DL1136-6BA00-0PH1 |
| Product Type | Fail-safe digital input module |
| Series | SIMATIC ET 200SP HA |
| Input Configuration | F-DI 16x24 V DC HA |
| Safety Rating | SIL 3 (IEC 61508); up to PL e (ISO 13849-1) |
| Compatible Terminal Block | H1 or M1 |
| Diagnostics | Channel diagnostics |
| Color Code | CC01 |
| Net Weight | 0.300 kg |
| Country of Origin | Germany |
| Application Area | Procurement Guidance |
| System Fit | SIMATIC ET 200SP HA distributed I/O stations |
| Typical Use | Safety-related digital field signal acquisition in process plants |
| Maintenance Role | Like-for-like module replacement after station and safety checks |
| Configuration Note | Confirm terminal block, wiring, safety parameters and project configuration before installation |
Siemens lists 6DL1136-6BA00-0PH1 as PM300: Active Product. Lifecycle information should be checked against the exact order code during procurement because status can change.
6DL1136-6BA00-0PH1 identifies the exact product configuration and suffix. Match every character to the installed label.
Verify the hardware revision, interface or terminal arrangement, power and channel configuration, project parameters, mounting position, and system documentation.
Yes. The lifecycle wording used here is the Siemens catalog wording for 6DL1136-6BA00-0PH1.
No direct interchangeability is assumed. Engineering checks are required for connectors, electrical data, firmware, configuration and system architecture.
Yes. Request clear photos of the full unit, nameplate, order code, packaging, seals and accessories before shipment.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Practical pre-shipment checks for industrial automation spare parts
Our team can check the visible order code, product label, housing condition, connectors, accessories and packaging before dispatch. Inspection scope depends on the available unit and the buyer’s requested evidence.
| Service Item | Available Support |
| Order Code Check | Visible label and suffix comparison |
| Condition Evidence | Photos of housing, terminals, seals and packaging |
| Packing Review | Accessory and protective packaging check |
| Shipping Support | Worldwide shipping options and destination review |
Send the exact part number, required quantity, destination country and photos of the installed label. We will review availability, condition evidence, compatibility questions and shipping options.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
