Sixteen-channel AI, DI or 24 V DC DQ configuration with HART functions for process automation.

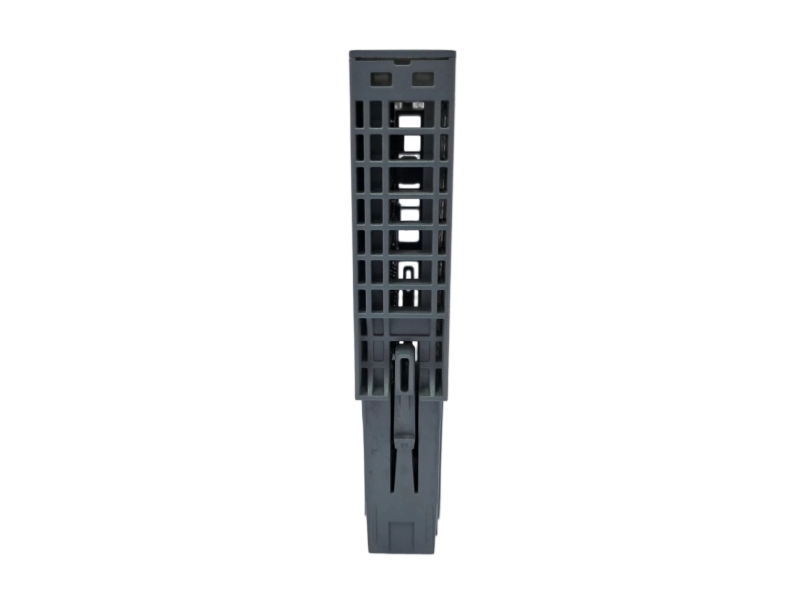

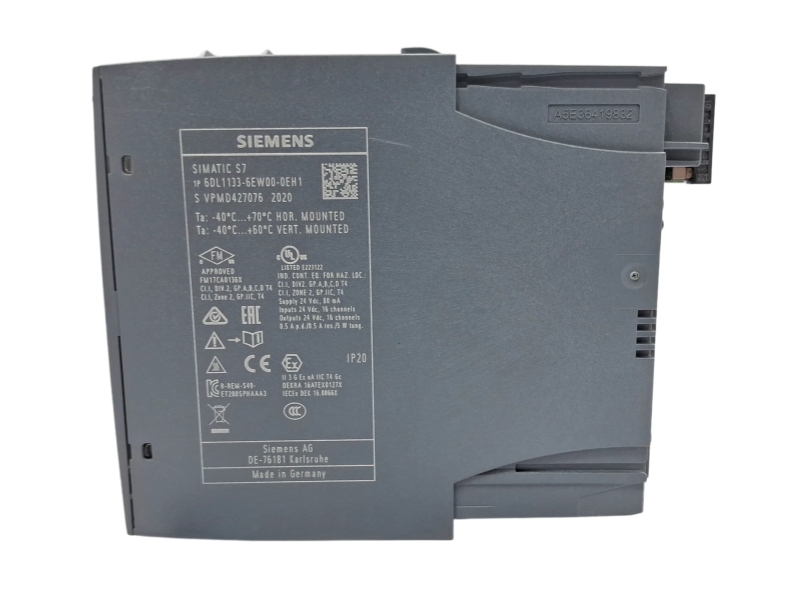

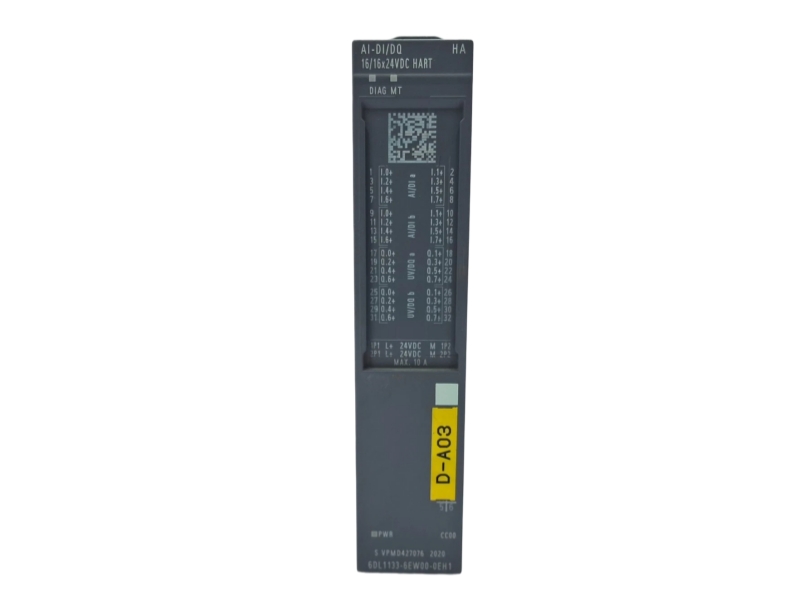

The Siemens 6DL1133-6EW00-0EH1 is a SIMATIC ET 200SP HA configurable I/O module for process automation applications. Siemens documentation identifies the module as AI-DI 16/DQ 16x24VDC HART HA, providing 16 channels that can be configured for analog input, digital input or 24 V DC digital output functions according to the project. HART communication supports intelligent field-device integration. The module provides channel diagnostics and is engineered for ET 200SP HA stations. Replacement planning should verify the complete suffix, terminal block type, channel configuration, HART parameters, field wiring, load-voltage arrangement, project hardware configuration, operating temperature, module dimensions and installed redundancy requirements before commissioning.
| Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Parameter | Verified Detail |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6DL1133-6EW00-0EH1 |
| Product Type | Configurable HART I/O module |
| Product Family | SIMATIC ET 200SP HA |
| Module Designation | AI-DI 16/DQ 16x24VDC HART HA |
| Channels | 16 configurable channels |
| Input Functions | Analog input or digital input |
| Output Function | 24 V DC digital output |
| HART Function | Supported |
| Current Input Ranges | 0 to 10 mA, 0 to 20 mA, 4 to 20 mA |
| Channel Diagnostics | Supported |
| Isolation to Backplane Bus | Yes |
| Isolation Between Channels | No |
| Isolation Test | 1,500 V DC for 1 minute, type test |
| Operating Temperature, Horizontal | -40 °C to +70 °C, derating applies |
| Operating Temperature, Vertical | -40 °C to +60 °C, derating applies |
| Dimensions | 22.5 × 115 × 138 mm |
| Approximate Weight | 150 g |
| Country of Origin | GERMANY |
| Area | Application Guidance |
|---|---|
| System Fit | SIMATIC ET 200SP HA remote I/O stations configured for this HART module. |
| System Role | Flexible acquisition and output of process signals with HART field-device communication. |
| Typical Use | Process plants, distributed instrumentation, valve and transmitter integration, and modernization projects. |
| Replacement Principle | Restore the validated hardware configuration and verify every channel mode and field circuit. |
It identifies a Siemens SIMATIC ET 200SP HA configurable AI-DI 16/DQ 16x24VDC HART module.
The module provides 16 configurable channels.
Channels can be configured for analog input, digital input or 24 V DC digital output functions.
Yes. HART functions are included for compatible intelligent field devices.
No. Siemens specifies isolation between the channels and backplane bus, but not between individual channels.
Check the exact suffix, terminal block, channel modes, HART settings, field wiring, load voltage and project configuration.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
Practical order review for 6DL1133-6EW00-0EH1, from article verification through shipment follow-up.
| Service Stage | What We Review |
|---|---|
| Identification | Complete model and suffix, manufacturer label, revision details and visible configuration. |
| Condition | Module housing, terminal interface, coding, label, seals and packaging evidence. |
| Technical Review | Terminal block, channel modes, HART settings, field wiring, load voltage and project configuration. |
| Order Documentation | Commercial terms, written warranty terms, packing details and customs documentation. |
| Logistics | Protective packaging, worldwide shipping coordination and shipment tracking. |
| After-Sales | After-sales response, documented issue review and return authorization process. |
We compare the full order code, suffix and label information with the purchasing request.
Condition, technical data and product photographs are reviewed before compatibility decisions.
Protective packing, shipping documents, tracking and after-sales contacts are coordinated after order review.
Product labels and visible identifiers are checked against the requested order code.
Technical documentation and installed system details are compared during compatibility review.
Visible condition and packing readiness are reviewed before protective packaging is arranged.
Look for complete article-code verification, consistent technical descriptions, clear condition evidence, written commercial terms and a documented after-sales process.
Review the quotation, full part number, label photographs, condition statement, packing scope, warranty terms, shipping documents, customs information and return authorization rules.
Engineers should compare the complete suffix, hardware or firmware revision, power arrangement, interfaces, connectors, mounting and installed project details.
Warning signs include an incomplete model, refusal to provide nameplate images, conflicting specifications, unclear condition, unsupported delivery promises or no stated return process.
