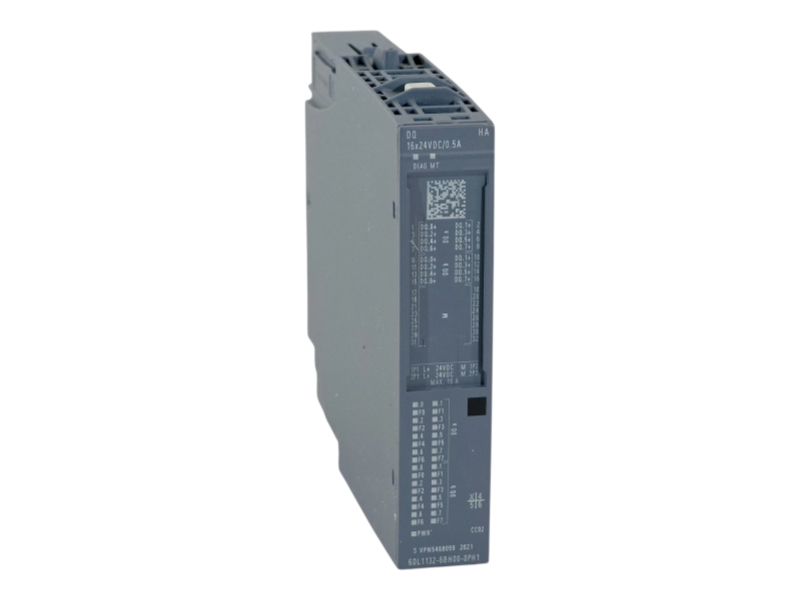

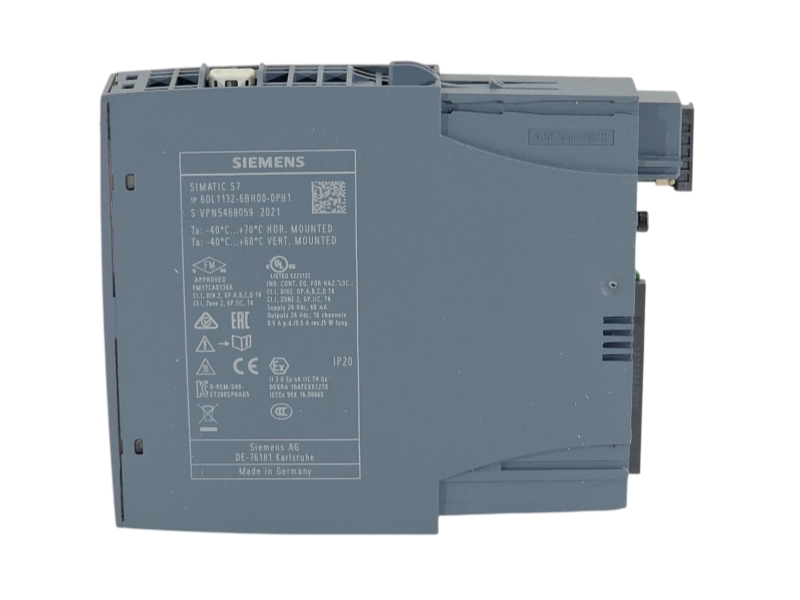

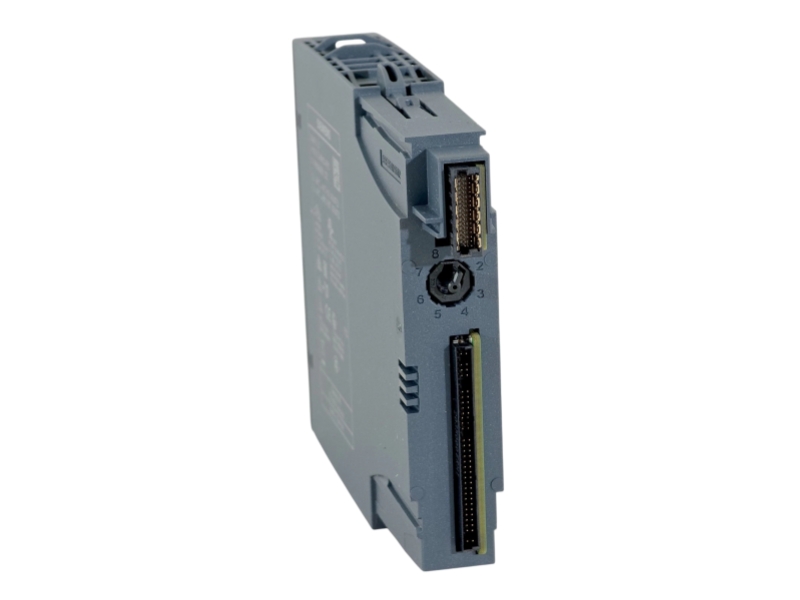

SIMATIC ET 200SP HA 16-channel digital output module with 0.5 A source outputs
Siemens 6DL1132-6BH00-0PH1 is a SIMATIC ET 200SP HA digital output module for process automation and high-availability distributed I/O applications. It provides 16 current-sourcing 24 V DC outputs rated at 0.5 A per channel, with channel diagnostics and redundancy capability when used with an M1 terminal block. Siemens specifies integration with PCS 7, PCS neo, STEP 7 and TIA Portal from defined software versions. Procurement should verify the complete order number, terminal-block type, firmware, engineering software, channel allocation, field supply and redundancy architecture before installation or replacement.
| Item | Details |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM300: Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Parameter | Verified Detail |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6DL1132-6BH00-0PH1 |
| Product Type | DQ 16x24VDC/0.5A HA digital output module |
| Product Family | SIMATIC ET 200SP HA |
| Number of Digital Outputs | 16 |
| Output Type | Current-sourcing |
| Rated Output Voltage | 24 V DC |
| Rated Output Current | 0.5 A per channel |
| Maximum Module Output Current | 8 A |
| Supply Voltage Range | 19.2 to 28.8 V DC |
| Redundancy Capability | Yes, with terminal block type M1 |
| Compatible Terminal Blocks | H1 and M1 |
| Color Code | CC02 |
| Firmware Version | V1.0; firmware update possible |
| TIA Portal Integration | V16 or later |
| STEP 7 Integration | V5.6 or later |
| PCS 7 Integration | V9.0 or later |
| PCS neo Integration | V3.0 or later |
| PROFINET GSD | GSDML V2.3 |
| Net Weight | 0.300 kg |
| Country of Origin | Germany |
| Review Area | Application Guidance |
|---|---|
| System Context | SIMATIC ET 200SP HA distributed I/O for process automation |
| Functional Role | Switches sixteen 24 V DC field loads from the process-control system |
| Redundant Operation | Supported with an M1 terminal block and approved system architecture |
| Typical Use | Process plants, high-availability I/O stations and distributed actuator control |
| Engineering Review | Confirm terminal block, firmware, software version, field supply and channel parameters |
Compatibility must be evaluated against the installed system configuration. This product should not be treated as a guaranteed direct replacement solely because another item has a similar designation.
Siemens Industry Mall lists 6DL1132-6BH00-0PH1 as PM300: Active Product. This wording is retained exactly and does not guarantee compatibility with every ET 200SP HA configuration. Confirm the terminal block, firmware, engineering software, field supply, channel parameters and redundancy architecture before deployment.
It identifies a Siemens SIMATIC ET 200SP HA DQ 16x24VDC/0.5A HA digital output module.
The exact module provides 16 current-sourcing digital outputs rated for 24 V DC and 0.5 A per channel.
Yes. Siemens specifies redundancy capability when the module is used with terminal block type M1.
Check TIA Portal V16, STEP 7 V5.6, PCS 7 V9.0, PCS neo V3.0 and the project-specific update level.
Siemens Industry Mall lists the exact order number as PM300: Active Product.
