DI 16x24VDC HA module for high-availability distributed I/O, with channel diagnostics and redundancy capability using an M1 terminal block.

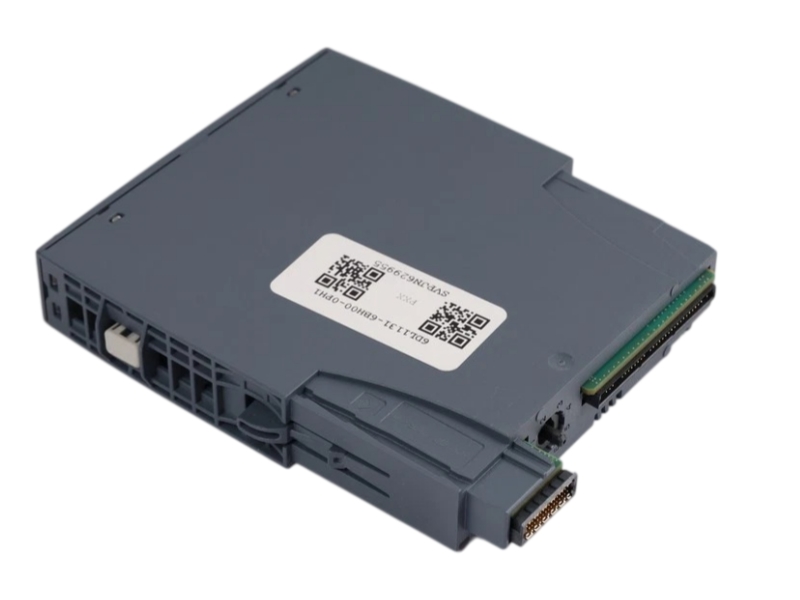

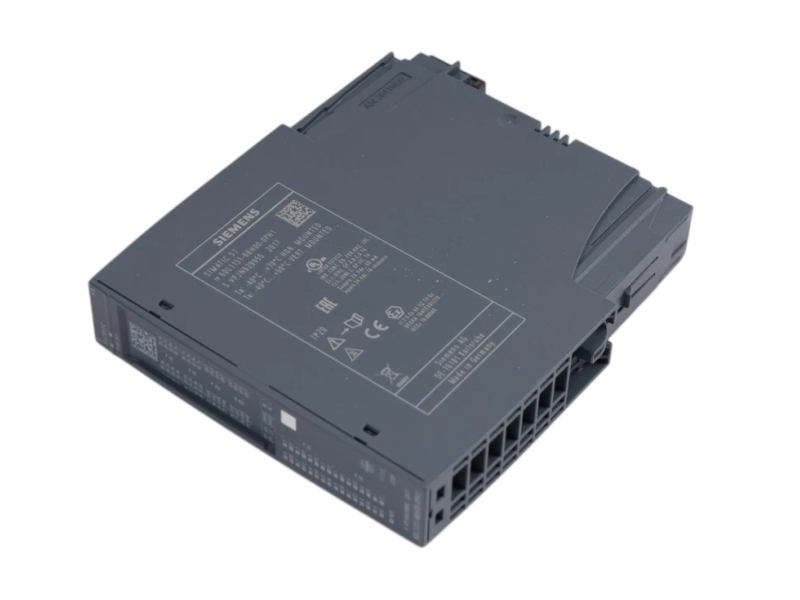

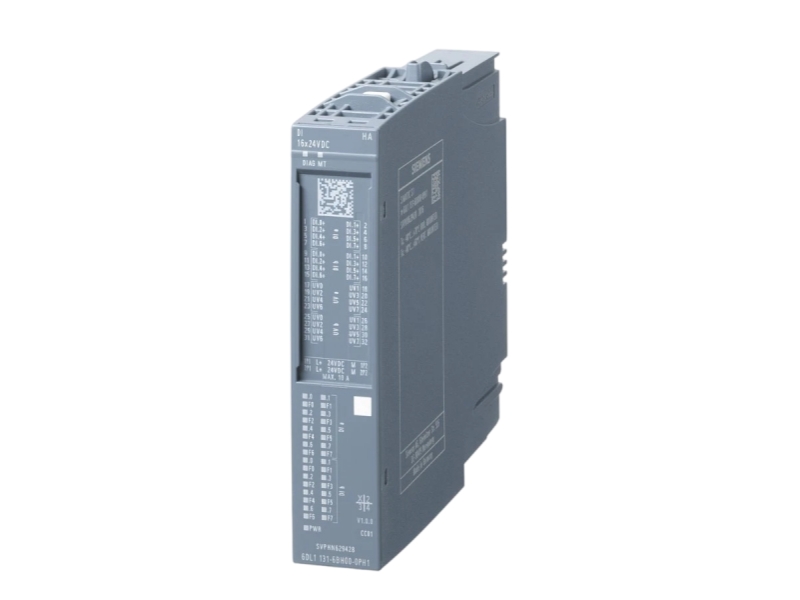

The Siemens 6DL1131-6BH00-0PH1 is a SIMATIC ET 200SP HA digital input module identified by Siemens as DI 16x24VDC HA. It provides sixteen 24 V DC digital inputs for field signal acquisition in high-availability distributed I/O stations. The module supports channel diagnostics and is specified for H1 and M1 terminal blocks.
For redundant operation, Siemens specifies use with an M1 terminal block. Engineering support is documented for TIA Portal V16, STEP 7 V5.6, PCS 7 V9.0, PCS neo V3.0 and PROFINET GSDML V2.3. Procurement should therefore match the complete MLFB, terminal block, station configuration and engineering release rather than relying on a shortened series name.
| Manufacturer | Siemens |
|---|---|
| Complete article number | 6DL1131-6BH00-0PH1 |
| Product designation | DI 16x24VDC HA |
| Official lifecycle status | PM300: Active Product |
| Country of origin | Germany |
| Parameter | Official value |
|---|---|
| System | SIMATIC ET 200SP HA |
| Digital inputs | 16 channels, 24 V DC |
| Terminal blocks | H1 and M1 |
| Redundancy capability | Yes, with M1 terminal block |
| Channel diagnostics | Supported; diagnostic alarm and hardware interrupt can be configured by channel |
| Firmware | V1.0; firmware update supported |
| Identification data | I&M0 to I&M3 |
| Engineering support | TIA Portal V16; STEP 7 V5.6; PCS 7 V9.0; PCS neo V3.0; PROFINET GSDML V2.3 |
| Input delay settings | None; 0.05; 0.1; 0.4; 0.8; 1.6; 3.2; 12.8; or 20 ms |
| 2-wire sensor support | Yes; maximum quiescent current 1.5 mA |
| Cable length | Maximum 1,000 m shielded or 600 m unshielded |
| Supply voltage | 24 V DC rated; permissible range 19.2 to 28.8 V DC; reverse-polarity protection |
| Current consumption | 60 mA rated; 120 mA maximum, without sensor supply |
| Color code | CC01 |
| Net weight | 0.300 kg |
Use within correctly engineered ET 200SP HA stations where resilient field signal acquisition and channel-level diagnostics are required.
Connect compatible 24 V DC switching signals from process instruments, contacts and plant auxiliaries, subject to the approved sensor and wiring design.
Channel diagnostics, configurable input delay and I&M identification data support precise troubleshooting and documented module replacement.
Match all characters in 6DL1131-6BH00-0PH1 and verify any label revision.
Select H1 or M1 as required; M1 is necessary for the documented redundancy function.
Review the controller, station, firmware, PCS or STEP 7 release and GSDML version.
Confirm sensor type, current, cable length, shielding and required channel diagnostics.
Siemens Industry Mall identifies the complete article number 6DL1131-6BH00-0PH1 as PM300: Active Product. Lifecycle, delivery and successor information should always be rechecked against the current Siemens record at the time of procurement.
It is a Siemens SIMATIC ET 200SP HA DI 16x24VDC HA digital input module.
The module provides sixteen digital input channels for 24 V DC signals.
Yes. Siemens documents redundancy capability when the module is used with an M1 terminal block.
Official data lists TIA Portal V16, STEP 7 V5.6, PCS 7 V9.0, PCS neo V3.0 and GSDML V2.3.
Provide the complete MLFB, required quantity, terminal block type, system version, destination and any inspection or documentation requirements.
Send the exact article number 6DL1131-6BH00-0PH1, quantity, terminal block and project requirements. We will verify availability, compatibility checkpoints, inspection scope, shipping options and warranty terms before quotation.
Complete MLFB · Configuration check · Global delivery · Warranty clarification
From exact-MLFB checking through inspection, packing and after-sales coordination, our workflow is built to reduce avoidable procurement risk for critical automation spares.
Article numbers, labels, visible condition and supplied accessories are reviewed against the purchase requirement before dispatch planning.
Our team aligns quantity, delivery target, documentation and source options so commercial decisions remain traceable and practical.
Compatibility questions are organized around the installed platform, engineering release, terminal block, wiring and replacement objective.
| Stage | How Stockoems supports the order |
|---|---|
| Requirement review | We confirm the complete article number, quantity, destination, terminal block requirement and requested documentation. |
| Source and stock check | Availability, lead time and supply route are checked before commercial terms are presented. |
| Inspection scope | Identity, visible condition, packaging and accessories can be documented according to the agreed scope. |
| Packing and logistics | Industrial components are protected for international transit, with global shipping arrangements matched to the destination. |
| Warranty support | Warranty terms are clarified before quotation, and post-delivery questions are coordinated through a documented service path. |
The full 6DL1131-6BH00-0PH1 number is retained through inquiry, quotation and dispatch checks to prevent suffix confusion.
We identify the project details that matter most: platform, terminal block, engineering version, wiring and redundancy requirement.
Customers can define required label views, packaging checks and documentation before shipment rather than after receipt.
Packing, shipping route and destination details are reviewed together to support predictable global delivery.
Include 6DL1131-6BH00-0PH1, quantity, required terminal block, installed system, destination, target delivery date and any inspection or warranty requirements. We will return a focused availability and compatibility review.
