SIEMENS SIMADYN D HARDWARE
Fanless 12-slot SIMADYN D rack with 24 V DC input, SP23 power supply and L-bus/C-bus backplanes.

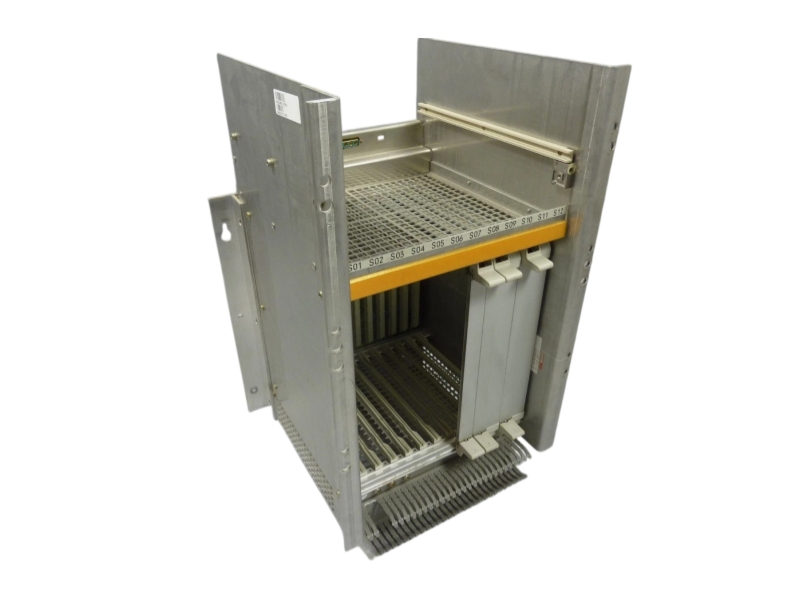

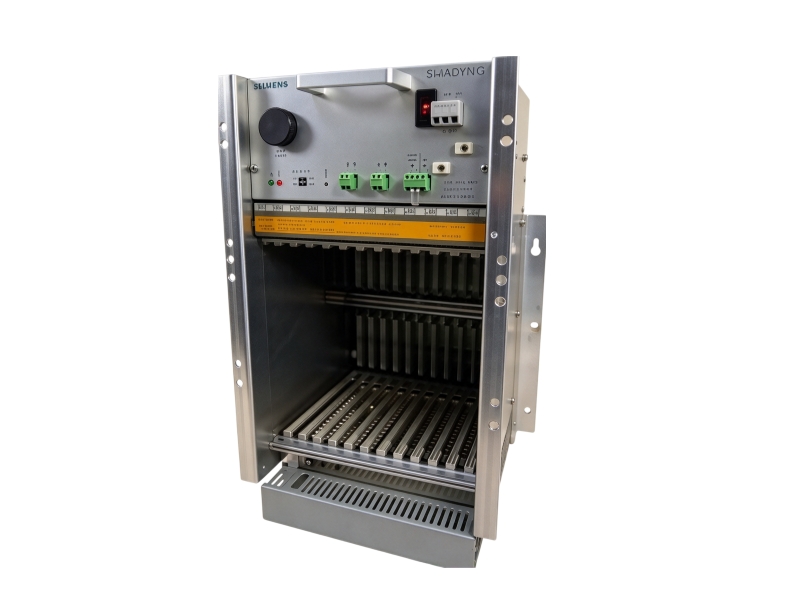

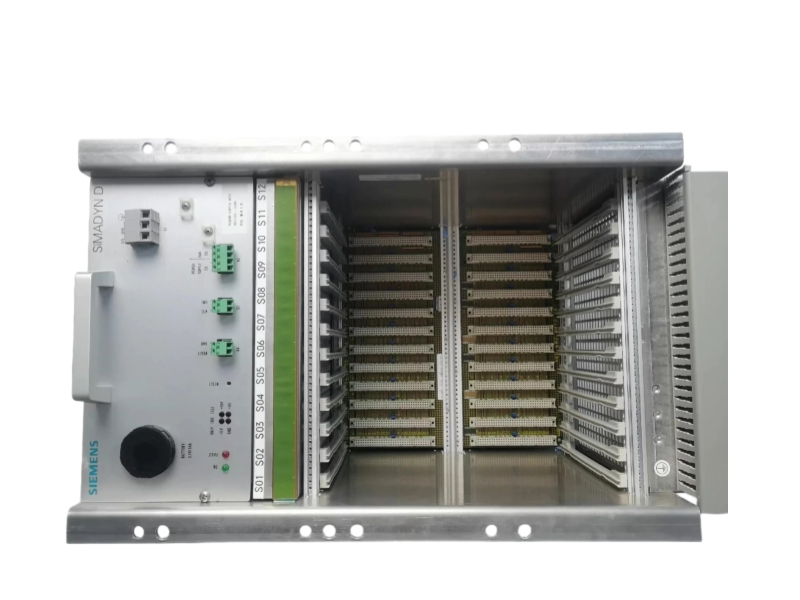

The Siemens 6DD1682-0CD0 is the SIMADYN D SR12.2 subrack documented for a 24 V DC supply, fanless operation and an SP23 power supply. It accommodates twelve SIMADYN D flat modules in the 233.4 × 220 mm format.
An integrated power supply distributes the required module voltages through the L-bus and C-bus backplanes and supports data exchange between installed modules. Procurement should confirm the complete rack version, cabinet cooling, module population, battery arrangement and backplane requirements.
| Manufacturer | Siemens |
|---|---|
| Article number | 6DD1682-0CD0 |
| Official designation | SIMADYN D SR12.2 subrack |
| Hardware manual | SIMADYN D Hardware, Edition 04.2011 |
| Exact lifecycle | Not confirmed in accessible Siemens lifecycle documentation |
| Parameter | Official value |
|---|---|
| Number of slots | 12 |
| Supply voltage | 24 V DC |
| Fan | No |
| Power supply type | SP23 |
| Supported module format | SIMADYN D flat modules, 233.4 × 220 mm |
| Backplane buses | L-bus and C-bus |
| Power-supply line filter | Limits radio-interference voltage to VDE 0871 limit-value class A |
| Status indicators | Green LED for error-free operation; red LED for fault condition |
| Backup battery provisions | Internal battery compartment and external battery connection X3 |
| Supply connection | Screw/plug-in terminal X1 |
| Reset function | Front reset button or jumper pins 1 and 2 at connector X4 |
| Test sockets | For checking 5 V and ±15 V output voltages |
All technical values are taken from the Siemens SIMADYN D hardware manual for the exact SR12.2 order number.
Provides twelve slots for compatible SIMADYN D flat modules using the documented board format.
Supports 24 V DC installations where cabinet thermal design is suitable for the fanless SR12.2 rack.
Serves as an exact rack reference when replacing a damaged subrack while preserving module, bus and power compatibility.
The exact Siemens lifecycle wording for 6DD1682-0CD0 was not found in the accessible official lifecycle records. No Active, Phase Out or Discontinued status is inferred from product age; availability must be checked individually.
It is a SIMADYN D SR12.2 subrack for twelve compatible flat modules.
The official hardware manual specifies 24 V DC.
No. Siemens documents this exact subrack as fanless.
The SR12.2 configuration uses the SP23 power supply.
The rack uses L-bus and C-bus backplanes for module supply and data exchange.
Send the rack nameplate, installed module list, cabinet cooling details, power and battery data, quantity and destination.
Share the rack nameplate, module population, cabinet and power details, quantity and destination. We will review exact hardware, compatibility checkpoints, global delivery and applicable warranty terms.
Structured sourcing support for Siemens 6DD1682-0CD0, with exact-suffix control, official-document review, system-fit questions and coordinated global delivery.
A SIMADYN D rack replacement requires the complete subrack number, installed module order, backplane buses, power-supply type, battery arrangement and cabinet thermal conditions. Our review keeps 6DD1682-0CD0 separate from other SR12 and SR24 variants.
The commercial workflow can include availability checks, condition documentation, packing, export preparation, shipment tracking and clarification of applicable warranty terms. This gives purchasing and maintenance teams a traceable path without treating a similar suffix as an automatic substitute.
We collect the complete 6DD1682-0CD0 reference, visible labels, installed platform, required quantity and delivery destination before the sourcing review begins.
Manufacturer documents are compared with the visible product and installed system data. Lifecycle, software and compatibility questions remain clearly separated from verified facts.
Protective packing, export documents, routing, tracking and applicable warranty scope can be coordinated as one procurement workflow.
The service process considers the installed platform, interfaces, power, software or firmware, accessories and project constraints.
A related article number, revision or successor is never presented as interchangeable without technical confirmation.
Labels, photos, condition records and open compatibility questions can be organized for engineering approval.
Availability, packing, export documentation, shipment tracking and after-sales contacts are handled together.
| Request item | Why it matters |
|---|---|
| Full product identification | Confirms 6DD1682-0CD0, the complete suffix, revision and visible Siemens identification. |
| Installed system and configuration | Supports review of the SR12.2 rack, twelve-slot module population, SP23 power supply, L-bus/C-bus backplanes, battery and cabinet cooling. |
| Accessories and project records | Clarifies the required cables, connectors, media, licenses, memory or mounting items. |
| Quantity and destination | Supports availability review, packing, export documents and delivery planning. |
Send the full identification, installed-system data, quantity and destination. We will coordinate evidence-based sourcing, technical checkpoints, packing, global delivery and applicable warranty terms.
