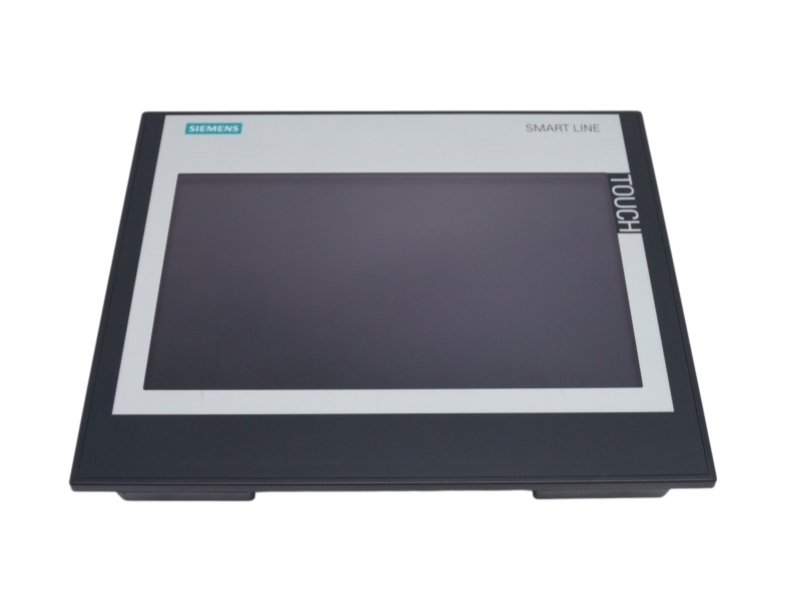

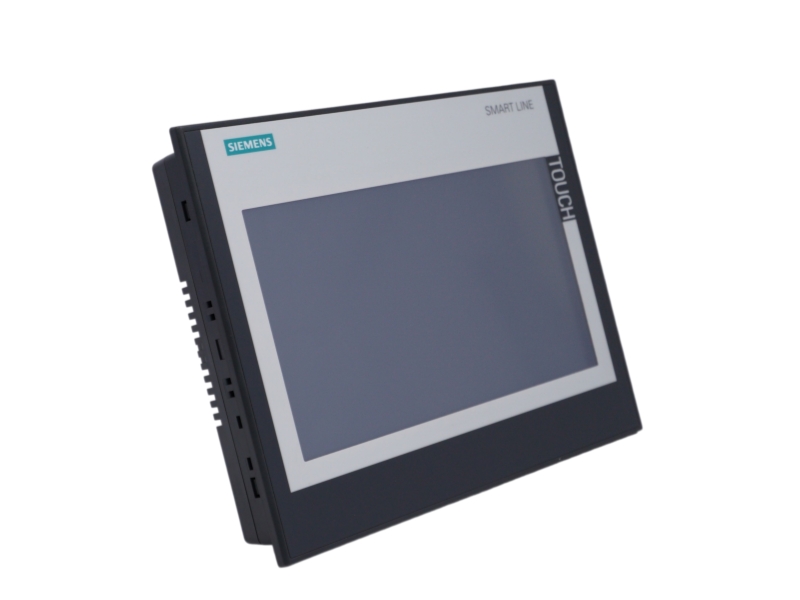

A 10.1-inch widescreen touch panel with Ethernet, RS-422/485 and host USB connectivity.
Siemens 6AV6648-0CE11-3AX0 is the SIMATIC HMI SMART 1000 IE V3 panel. The official Siemens data sheet specifies a 10.1-inch TFT widescreen with 1024 × 600 pixel resolution, 65,536 colors and touch operation.
The panel provides RS-422/485, Ethernet through RJ45 and a host USB Type A interface. Replacement planning should include the complete MLFB, panel cutout, project backup, controller connection and WinCC flexible SMART project compatibility.
10.1-inch TFT, 1024 × 600
Ethernet, RS-422/485, USB Type A
Panel, project and cutout match
| Manufacturer | Siemens |
|---|---|
| Order number | 6AV6648-0CE11-3AX0 |
| Official classification | Spare part |
| Source note | Official Siemens data sheet wording for the complete order number. |
| Parameter | Verified value |
|---|---|
| Product type designation | 1000 IE V3 |
| Display | 10.1-inch TFT widescreen |
| Resolution | 1024 × 600 pixels |
| Colors | 65,536 |
| Operation | Touch screen |
| Communication interfaces | RS-422/485 and Ethernet (RJ45) |
| USB interface | Host USB Type A |
| Rated supply voltage | 24 V DC; permissible range 19.2 to 28.8 V |
| Rated / maximum input current | 230 mA / 370 mA |
| Processor | ARM, 600 MHz |
| Engineering software | WinCC flexible SMART, minimum version per Siemens product data |
| Country of origin | Germany |
Only data confirmed for the complete order number are shown; unverified configuration claims are intentionally omitted.
Displays process values, operating states and alarm information for supported controller connections.
Provides on-screen numeric and alphanumeric entry without physical function keys.
Supports exact-MLFB evaluation where an existing SMART 1000 IE V3 panel and project must be maintained.
Official wording confirmed for this complete order number: Spare part.
A normalized Siemens PLM lifecycle state and effective date were not confirmed in the accessible official documentation used for this page, so no broader lifecycle label is inferred.
It is a SIMATIC HMI SMART 1000 IE V3 touch panel with a 10.1-inch widescreen display.
The official data sheet specifies 1024 × 600 pixels and 65,536 colors.
The panel includes RS-422/485 and Ethernet through an RJ45 connector, plus host USB Type A.
Check the complete MLFB, cutout, supply, controller connection, project backup and WinCC flexible SMART compatibility.
Send the full order number, quantity, required condition, destination, panel photos and project or controller details.
Contact us for availability confirmation, exact-part verification, compatibility checks, warranty details and worldwide delivery planning.
Our service combines exact-part identification, condition review, commercial coordination and export-ready delivery support for legacy automation requirements.
A dedicated contact coordinates identification questions, quotations, document requests and order progress.
The full MLFB, suffix, visible label and requested condition are reviewed before commercial confirmation.
Packing, documentation and routing are organized to support industrial destinations across global markets.
Legacy automation purchasing is rarely solved by matching a short description alone. Similar-looking modules can differ by suffix, hardware revision, protocol support or project configuration. Our workflow keeps the complete order number visible from inquiry through packing and highlights any uncertainty before an order is finalized.
For 6AV6648-0CE11-3AX0, we focus on exact identity, requested condition and evidence appropriate to the available unit. We can coordinate label photographs, enclosure views, connector-condition images and package-content confirmation when these are available from the supply channel. This provides a clearer basis for internal engineering review and purchasing approval.
| Stage | What we check | Customer advantage |
|---|---|---|
| 1. Requirement review | Full model, quantity, condition and destination | Reduces ambiguity at the start of the inquiry. |
| 2. Identity check | MLFB, suffix, family and visible markings | Helps prevent selection of a similar but unsuitable variant. |
| 3. Evidence review | Available photos, connector condition and package scope | Supports engineering and procurement approval before dispatch. |
| 4. Commercial confirmation | Lead time, warranty basis and delivery terms | Creates a clear purchasing record with fewer late surprises. |
| 5. Packing and shipment | Protective packing, labels and shipping documents | Improves handling visibility for international delivery. |
We preserve the complete suffix throughout the quotation and verification process.
New, surplus or professionally refurbished options can be discussed according to your acceptance criteria.
Warranty scope is stated with the offer so buyers can compare options on a consistent basis.
Commercial documents and shipment coordination are prepared for cross-border industrial orders.
Send your requirement for availability verification, condition options, compatibility review, warranty clarification and worldwide shipping coordination.
