Compact 4.3-inch color Basic Panel with PROFINET connectivity and key operation.

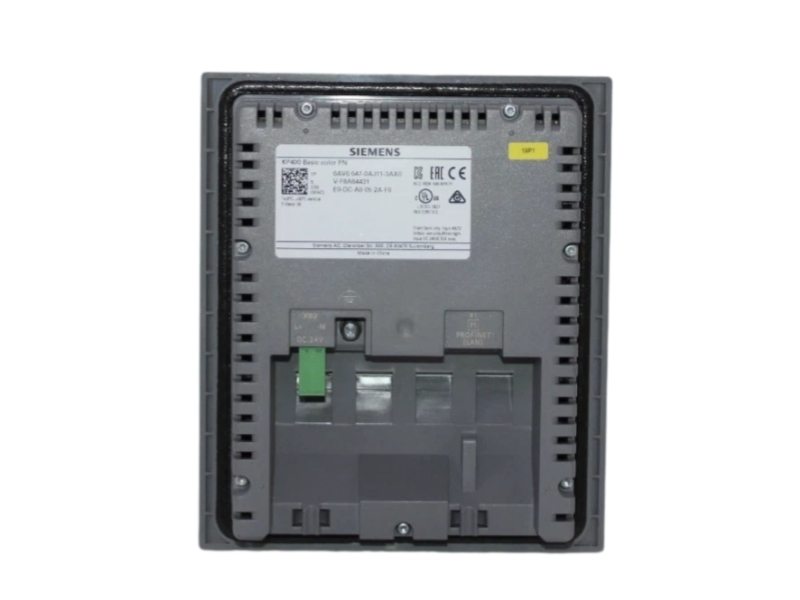

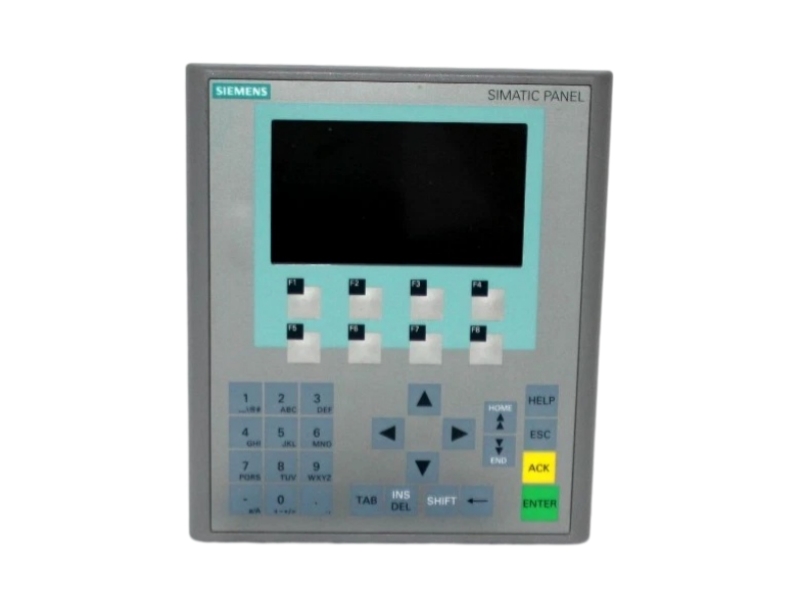

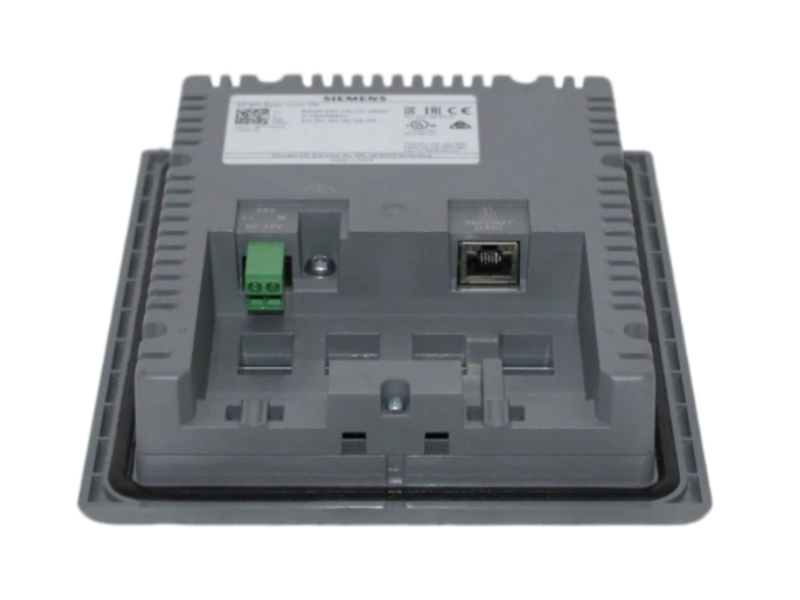

Siemens 6AV6647-0AJ11-3AX0 is the SIMATIC HMI KP400 Basic Color PN, a compact key-operated Basic Panel for machine-level visualization and operator input. The official Siemens data identifies a 4.3-inch widescreen TFT display with 256 colors, 480 × 272 pixel resolution, eight function keys and a PROFINET interface. It operates from a 24 V DC supply and is configurable with WinCC Basic in TIA Portal. Procurement teams should verify the complete suffix, panel cutout, installed project, engineering software version, PROFINET configuration, power supply and readable product label before replacement.
| Commercial Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6AV6647-0AJ11-3AX0 |
| Product Type | SIMATIC HMI KP400 Basic Color PN |
| Display | 4.3-inch widescreen TFT; 256 colors |
| Resolution | 480 × 272 pixels |
| Operation | Key operation; 8 function keys |
| Interface | PROFINET |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Range | 19.2 to 28.8 V DC |
| Typical Power Input | 2 W |
| User Data Memory | 1 Mbyte |
| Configuration | WinCC Basic V11 SP2 / STEP 7 Basic V11 SP2 or later documented options |
| Housing Front | 162 × 189 mm |
| Mounting Depth | 33 mm |
| Net Weight | 0.51 kg |
| Country of Origin | GERMANY |
| Application | Fit Consideration |
|---|---|
| Machine visualization | Use for compact operator display and key-based control within the documented project limits. |
| PROFINET HMI station | Verify network addressing, controller support and the archived TIA Portal project. |
| Panel replacement | Match cutout, dimensions, connector arrangement, supply and engineering version. |
| Maintenance spares | Confirm the exact suffix and readable device label before procurement. |
Siemens identifies 6AV6647-0AJ11-3AX0 as a spare part. The reviewed official record does not provide a lifecycle code used on this page, so no cancellation or discontinuation conclusion is stated.
It identifies the Siemens SIMATIC HMI KP400 Basic Color PN key-operated Basic Panel.
Siemens specifies a 4.3-inch widescreen TFT display with 256 colors and 480 × 272 pixel resolution.
The official configuration includes a PROFINET interface.
Siemens identifies it as a spare part; no additional lifecycle conclusion is stated on this page.
Verify the complete suffix, panel cutout, power supply, PROFINET settings, engineering version and archived project.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Structured HMI verification, inspection coordination, protective handling and international logistics for 6AV6647-0AJ11-3AX0.
| Service Checkpoint | What We Review |
|---|---|
| Model and suffix verification | Match 6AV6647-0AJ11-3AX0 exactly against the inquiry, product label and packaging. |
| Condition confirmation | Review housing, terminals, connectors, approval markings and visible condition. |
| Technical compatibility review | Check panel dimensions, PROFINET interface, engineering version, project backup and power requirements. |
| Product and label photo confirmation | Request readable front, connector, terminal, nameplate and packaging photographs. |
| Protective packaging | Protect the enclosure, connectors and terminal areas against impact, moisture and uncontrolled movement. |
| Worldwide shipping | Coordinate options after destination, quantity, packaging and documentation scope are reviewed. |
| Shipment tracking | Provide tracking information after carrier acceptance for traceable logistics follow-up. |
| Customs documentation | Prepare commercial documents for the confirmed destination and transaction scope. |
| Written warranty terms | Provide written terms aligned with the confirmed transaction. |
| Return authorization process | Require return authorization before any goods are sent back. |
| After-sales response | Use order records, shipment details and photographs to coordinate technical communication. |
Look for exact suffix verification, readable label evidence, clear condition terms, compatibility questions, written warranty terms and traceable communication.
Request the complete order code, quantity, condition statement, inspection photographs, packaging plan, shipping options, documentation scope and return terms.
Check the panel cutout, 24 V DC supply, PROFINET settings, controller compatibility, project backup and TIA Portal version.
Warning signs include altered suffixes, unreadable labels, unsupported compatibility claims, vague warranty language and unverifiable stock promises.
Send the complete part number, required quantity, destination country and available product or label photos for a structured procurement review.
