Official Siemens operating instructions identify the MP 277 10-inch Key configuration and its operator-interface characteristics.

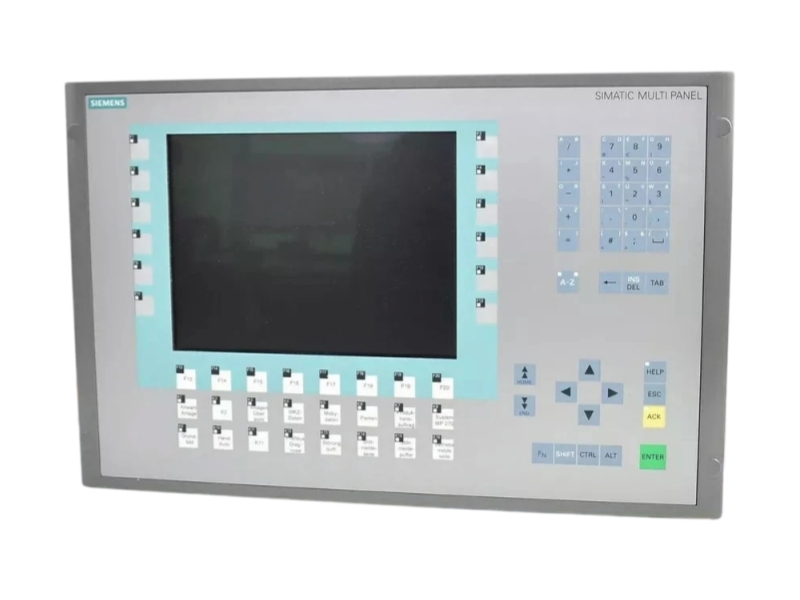

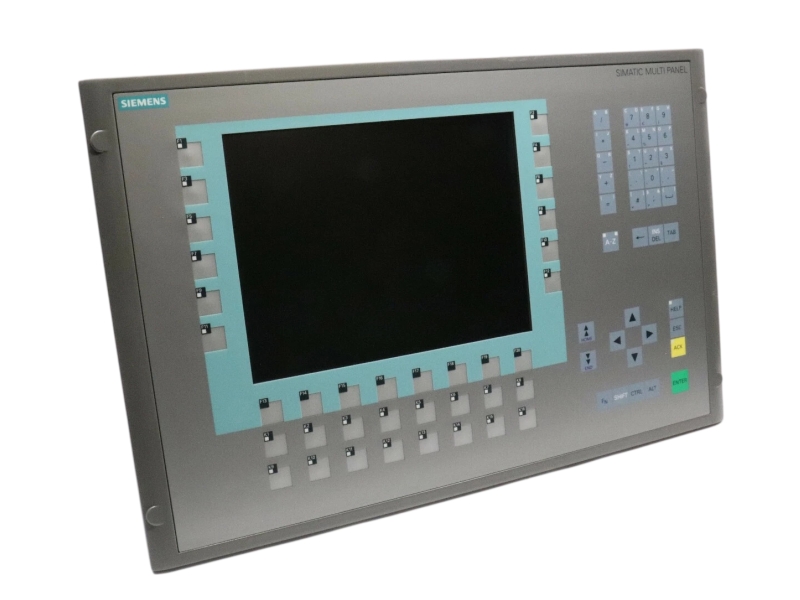

Siemens 6AV6643-0DD01-1AX0 is identified in official Siemens support information as the MP 277 10-inch Key operator panel. The MP 277 operating instructions specify a 10.4-inch TFT display with 640 × 480 resolution, 64K colors, brightness control and a membrane keyboard with 34 function keys, including 26 illuminated keys. The panel provides 6 MB of application memory and is intended for machine and plant operator functions within a configured automation system. Before replacement, verify the complete suffix, mounting cutout, supply and communication interfaces, installed options, WinCC flexible project, transfer method and readable product-label photographs.
| Commercial Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Information |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6AV6643-0DD01-1AX0 |
| Product Type | SIMATIC MP 277 10-inch Key Multi Panel |
| Display Type | LCD TFT |
| Active Display Area | 211.2 × 158.4 mm |
| Display Resolution | 640 × 480 pixels |
| Colors | 64K |
| Operator Input | Membrane keyboard |
| Function Keys | 34 total; 26 with LEDs |
| Application Memory | 6 MB |
| Approximate Weight | 4.95 kg |
| Country of Origin | GERMANY |
| Confirmed Application | Procurement Consideration |
|---|---|
| Machine operator interface | Confirm the existing visualization project, PLC connection and machine functions. |
| Plant status and alarm operation | Review alarm classes, user administration and archived process data. |
| Legacy HMI replacement | Compare mounting, power, communication ports, transfer method and project compatibility. |
| Maintenance spare planning | Retain project backups and request readable label and connector photographs. |
Official Siemens support information identifies 6AV6643-0DD01-1AX1 as the successor to 6AV6643-0DD01-1AX0. The reviewed official sources do not state a current PLM term for the exact 1AX0 code, so this page does not infer Active, Classic, Obsolete or Discontinued status.
It is the SIMATIC MP 277 10-inch Key Multi Panel for machine and plant operator-interface applications.
The official instructions specify a 10.4-inch TFT display with 640 × 480 resolution and 64K colors.
The MP 277 10-inch Key configuration has 34 function keys, including 26 with LEDs.
The reviewed official sources identify a successor but do not state a current Discontinued classification for the exact code.
No automatic substitution is claimed; verify project migration, interfaces, mounting and accessories.
Back up the HMI project, transfer settings, recipes, archives and user data required by the application.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Documented checks for the submitted Siemens 6AV6643-0DD01-1AX0 order code, product condition, compatibility evidence and international shipment coordination.
Model and suffix verification compares the purchase request with readable product-label evidence. The exact 6AV6643-0DD01-1AX0 suffix, panel label, display and keyboard configuration are checked before supply.
Condition confirmation and product and label photo confirmation document the visible housing, connectors, markings, packaging and included items where available.
The review considers mounting cutout, supply, communication ports, installed options, WinCC flexible project, transfer method and successor engineering requirements.
Appropriate anti-static protection, cushioning and external packaging are selected for the confirmed product configuration and shipment route.
Worldwide shipping options, shipment tracking and customs documentation are coordinated after destination and order details are confirmed. No unverified delivery date or stock quantity is promised.
Written warranty terms, the return authorization process and after-sales response channels are included in the commercial documentation.
Require exact order-code verification, readable label photographs, clear condition evidence, technical compatibility review, documented packaging and written commercial terms.

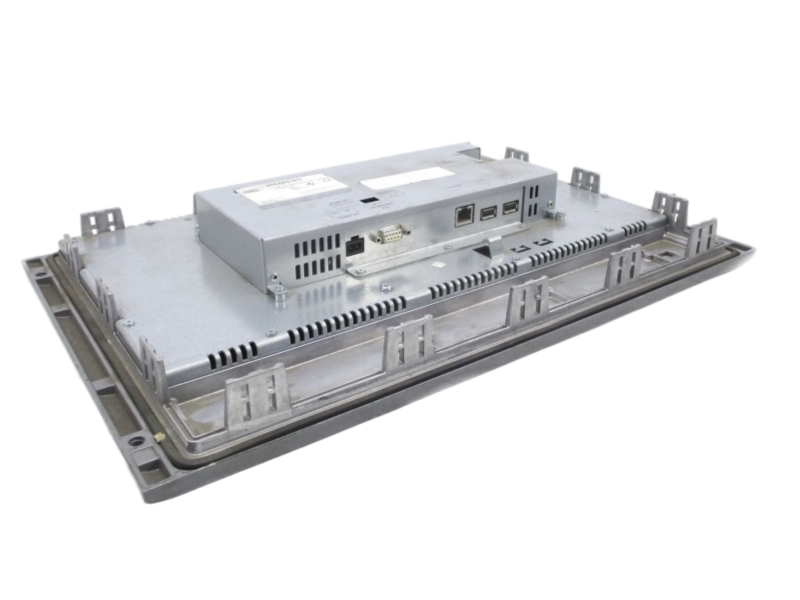

Request front, connector, nameplate and packaging photographs together with hardware revision, firmware, accessories, shipment tracking and customs-documentation details.
Mismatched prefixes, unclear labels, missing revision information, assumed interchangeability, vague return terms and unsupported delivery promises require further review.
Send the complete model, quantity, destination country and available label photos for verification, packaging and shipping review.
