Configurable text-based operation with serial, MPI/PPI and PROFIBUS DP communication.

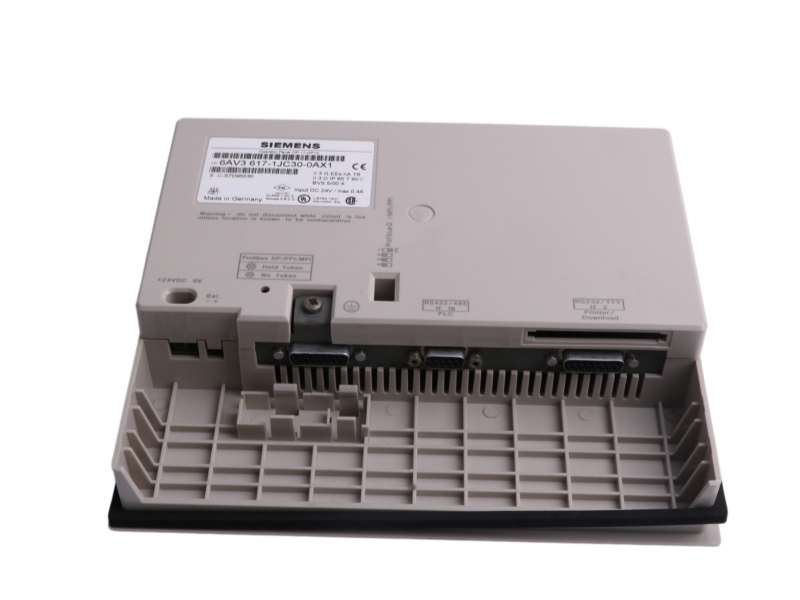

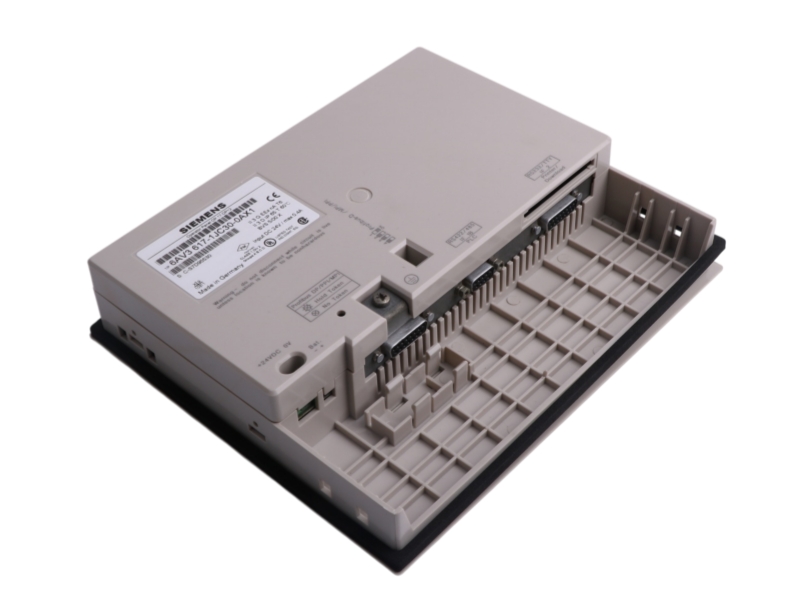

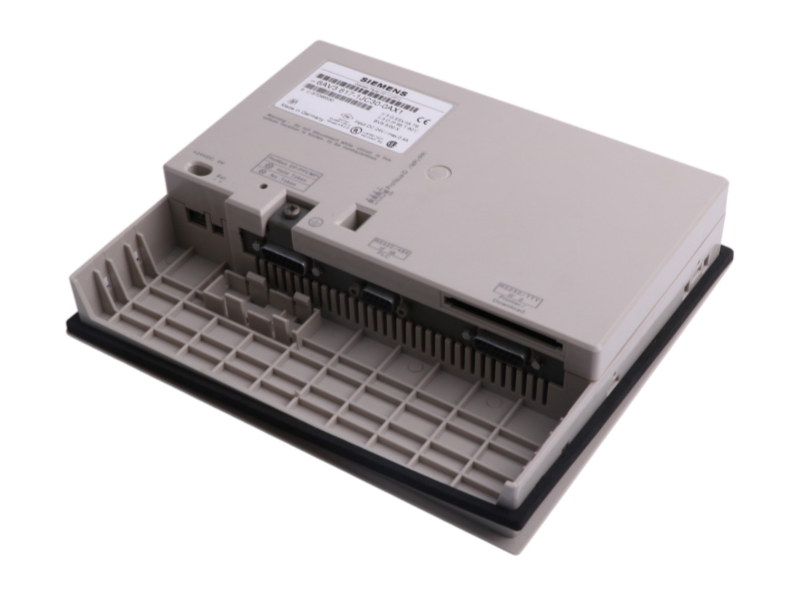

Siemens 6AV3617-1JC30-0AX1 is a SIMATIC HMI OP17/DP-12 operator panel for text-based machine operation and monitoring. Siemens documentation identifies an adjustable LED-backlit LCD, three built-in interface ports and PROFIBUS DP communication up to 12 Mbaud. The display can be configured for four lines with 20 characters or eight lines with 40 characters. This panel is relevant to installed automation systems that retain an OP17 project and matching communication architecture. Before procurement, verify the complete suffix, panel cutout, interface wiring, PROFIBUS settings, engineering project, software environment and readable product-label evidence.
| Commercial Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6AV3617-1JC30-0AX1 |
| Product Type | SIMATIC HMI OP17/DP-12 operator panel |
| Display | Adjustable LED-backlit LCD |
| Display Format | 4 lines × 20 characters or 8 lines × 40 characters |
| Built-in Interfaces | 2 × TTY/RS232 C (V.24); 1 × MPI/PPI/PROFIBUS DP |
| PROFIBUS DP | Up to 12 Mbaud |
| Overall Dimensions | 240 × 204 × 54 mm |
| Mounting Cutout | 231 × 195 mm |
| Mounting Depth | 50 mm |
| Degree of Protection | IP65 front; IP20 rear |
| Approximate Weight | 0.960 kg |
| Country of Origin | GERMANY |
| Application | Fit Consideration |
|---|---|
| Legacy machine visualization | Use only where the installed OP17 project and operator workflow are available. |
| PROFIBUS DP station | Verify bus speed, address, connector, cable and controller configuration. |
| Maintenance replacement | Match the full suffix, panel cutout, interface assignment and archived project. |
| Serially connected equipment | Confirm the exact protocol and electrical interface before installation. |
The reviewed Siemens catalog and equipment documentation confirm the complete order number and OP17/DP-12 configuration. No exact current lifecycle wording was identified for this complete suffix, so this page does not state a cancellation or discontinuation status.
It identifies the Siemens SIMATIC HMI OP17/DP-12 text operator panel.
Siemens documents two TTY/RS232 C interfaces and one combined MPI/PPI/PROFIBUS DP interface.
Verify the bus connector, cable, node address, transmission rate, controller configuration and archived HMI project.
No lifecycle conclusion is stated here because exact current lifecycle wording for this complete suffix was not identified in the reviewed Siemens records.
Availability of front, rear, connector, nameplate and packaging photographs can be reviewed for the specific inquiry.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Structured checks for identity, compatibility, condition, documentation, packaging and international delivery coordination.
| Checkpoint | How It Is Handled |
|---|---|
| Model and suffix verification | Match 6AV3617-1JC30-0AX1 against the inquiry, label and packaging. |
| Condition confirmation | Review housing, display, keypad, connectors and visible condition. |
| Technical compatibility review | Compare cutout, interfaces, PROFIBUS settings, controller protocol and engineering project. |
| Product and label photo confirmation | Request readable front, rear, connector, label and packaging photographs. |
| Protective packaging | Protect the display, keypad, housing and connectors against impact and moisture. |
| Worldwide shipping | Coordinate options after destination, quantity and documentation scope are reviewed. |
| Shipment tracking | Provide tracking information after carrier acceptance. |
| Customs documentation | Prepare transaction documents for the confirmed destination and shipment. |
| Written warranty terms | Provide written terms aligned with the confirmed transaction. |
| Return authorization process | Require return authorization before goods are sent back. |
| After-sales response | Use order records, shipment data and photographs to coordinate follow-up. |
Check whether the supplier preserves the complete part number, requests label evidence, distinguishes commercial statements from manufacturer data and provides written transaction terms.
Risk signals include shortened model numbers, unsupported interchangeability claims, copied specifications, unclear condition descriptions, missing inspection photographs and promises without written scope.
Provide the complete suffix, controller type, communication settings, connector details, panel cutout, archived project and readable product-label photographs.
