SIMATIC HMI · OP7 SERIES
A keyed text operator interface for legacy automation maintenance, with exact suffix verification required before replacement.

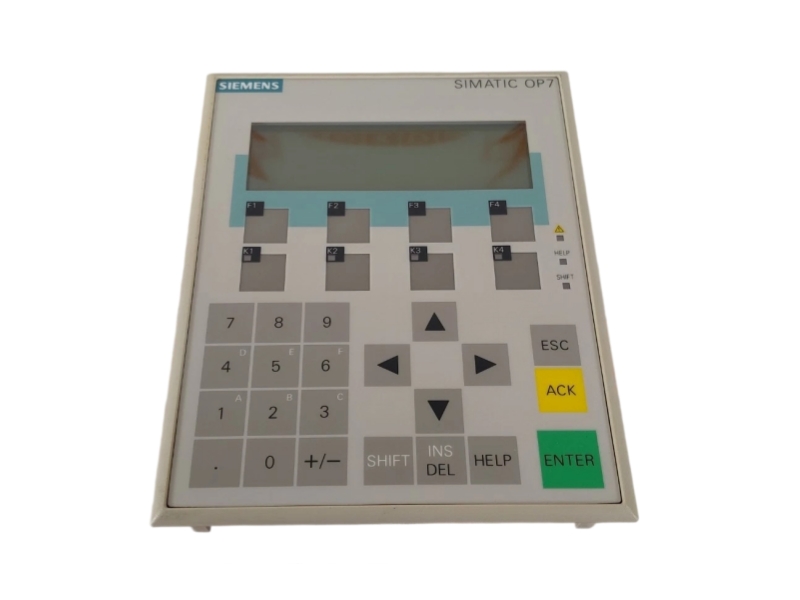

Siemens 6AV3607-1JC20-0AX2 is presented as a SIMATIC OP7-series operator panel based on the official Siemens 6AV3607 product reference family. Siemens documentation identifies OP7 as a machine-level keyed text panel for cabinet or console installation. The reviewed official material confirms a four-line, 20-character display format for the OP7 family, 24 V DC supply, STN monochrome display, RS232 and RS485/422 communications, PPI/MPI and PROFIBUS options, IP65 front protection and IP20 rear protection. Because the exact complete suffix was not found in the current Siemens catalog, buyers should verify the full label, interface variant, firmware, project file and connector arrangement before replacement.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6AV3607-1JC20-0AX2 |
| Officially Confirmed Family | SIMATIC OP7; Siemens reference family 6AV3607- |
| Product Type | Machine-level keyed text operator panel |
| Display Format, OP7 Family | 4 lines, 20 characters per line; STN monochrome display |
| Supply, OP7 Family | 24 V DC |
| Communication Range, OP7 Family | RS232; RS485/422; PPI/MPI; PROFIBUS |
| Protection, OP7 Family | IP65 at front; IP20 at rear |
| Installation | Cabinet or console cut-out |
| Country of Origin | Germany |
| Legacy Machine Interface | Operator messaging, status viewing and keyed interaction in an existing OP7 application. |
|---|---|
| Maintenance Replacement | Replacement work requires matching the installed suffix, communication variant and archived project. |
| Cabinet Integration | Designed for panel mounting in a cabinet or console cut-out within the OP7 family scope. |
| Procurement Control | Label and connector photos should be compared with the installed panel before an order is finalized. |
The reviewed Siemens material confirms the OP7 family and the 6AV3607- reference range, but it does not confirm this complete suffix or an exact lifecycle category. No unsupported lifecycle conclusion is included.
It is the complete part number supplied for this page. The official material reviewed confirms the broader Siemens 6AV3607- OP7 family.
Siemens family documentation confirms a keyed text panel, four-line display format, 24 V DC supply and the listed legacy communication range.
The reviewed official sources do not provide a lifecycle statement for this complete suffix, so no discontinuation claim is made.
Check the suffix, ports, connectors, supply, firmware, project archive, controller link, mounting cut-out and label photographs.

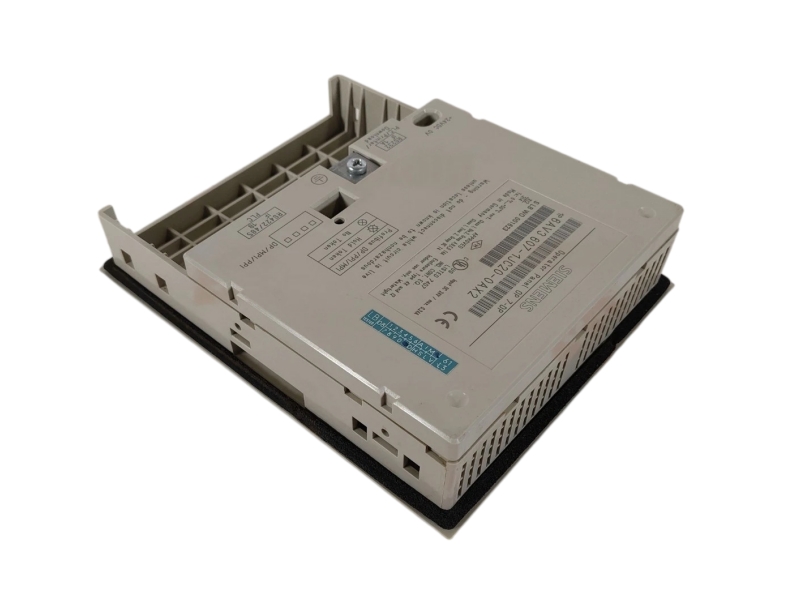

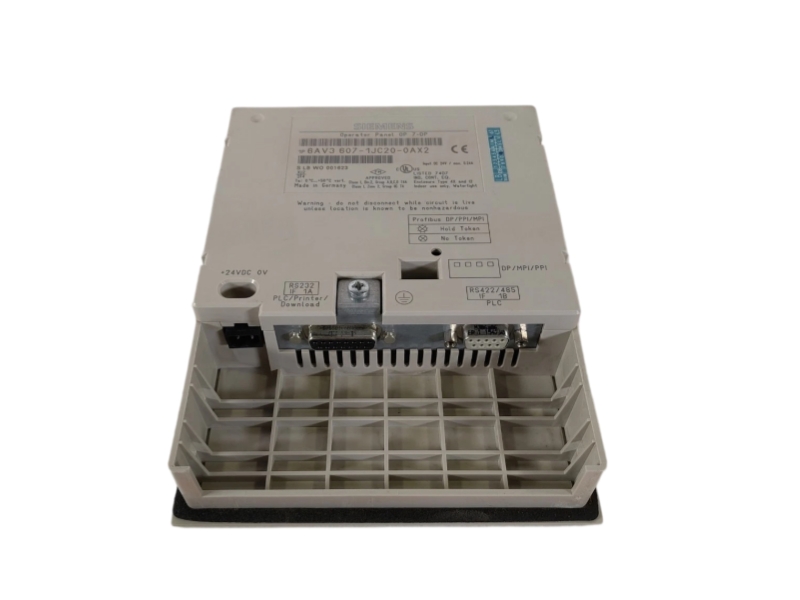

Readable front, rear, nameplate, connector and packaging photographs can be requested for order review.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
STOCKOEMS PROCUREMENT SUPPORT
Identity control, compatibility review, documented inspection, protective handling and coordinated international logistics.
| 01 | Model and suffix verification | Every character in the requested order code is checked against label and order evidence. |
|---|---|---|
| 02 | Condition confirmation | Housing, keypad, display, interfaces, connectors and supplied items are reviewed. |
| 03 | Technical compatibility review | Power, interface variant, pinout, firmware, project archive and controller connection are compared. |
| 04 | Product and label photo confirmation | Readable front, rear, nameplate, connector and packaging images can be requested. |
| 05 | Protective packaging | The display, keypad, housing and connector area are protected for handling and transport. |
| 06 | Worldwide shipping | Available routes are coordinated without promising an unconfirmed delivery date. |
| 07 | Shipment tracking | Tracking information is shared after carrier acceptance. |
| 08 | Customs documentation | Commercial shipment documents are prepared for the confirmed order and destination. |
| 09 | Written warranty terms | Warranty scope is recorded in Stockoems commercial documents. |
| 10 | Return authorization process | Returns require written authorization and review under the agreed commercial terms. |
| 11 | After-sales response | Post-shipment questions are handled with order, label, wiring and installation evidence. |
Look for complete suffix verification, readable label and condition photos, transparent compatibility limits, written warranty and return terms, protective packaging and traceable shipment records.
Warning signs include blurred labels, substituted suffixes, unsupported parameter claims, vague condition descriptions, missing inspection evidence and payment details that do not match the stated company.
