SIMATIC HMI · MOBILE PANEL CONNECTION
Wall-mounted connection box for second-generation Mobile Panels with PROFINET, PROFIsafe, emergency-stop circuit bridging and an integrated switch.

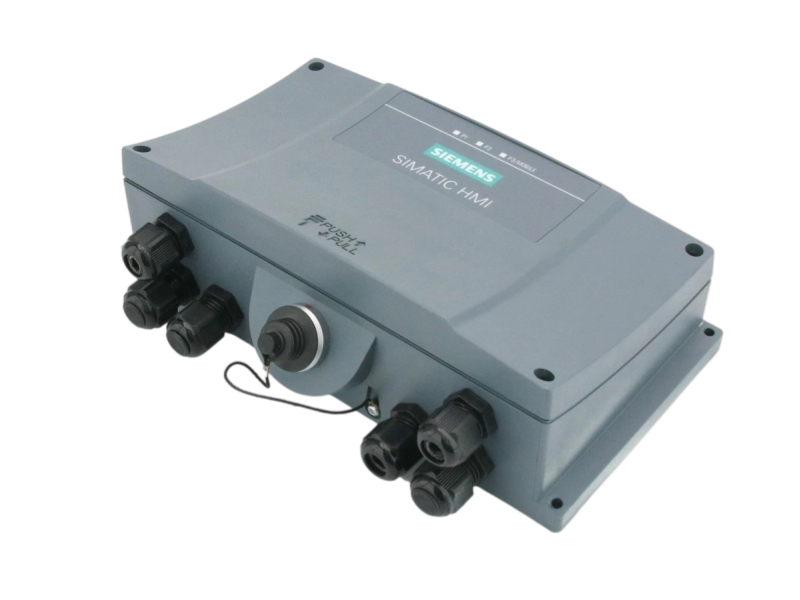

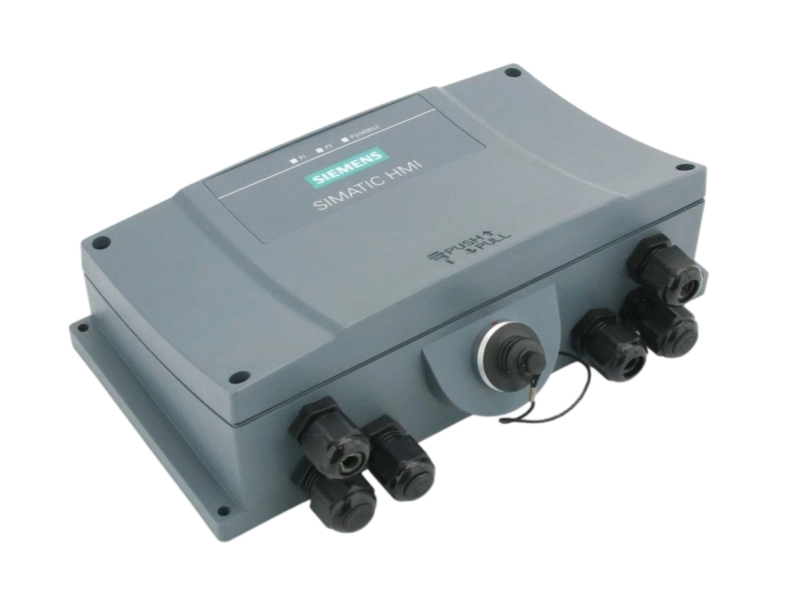

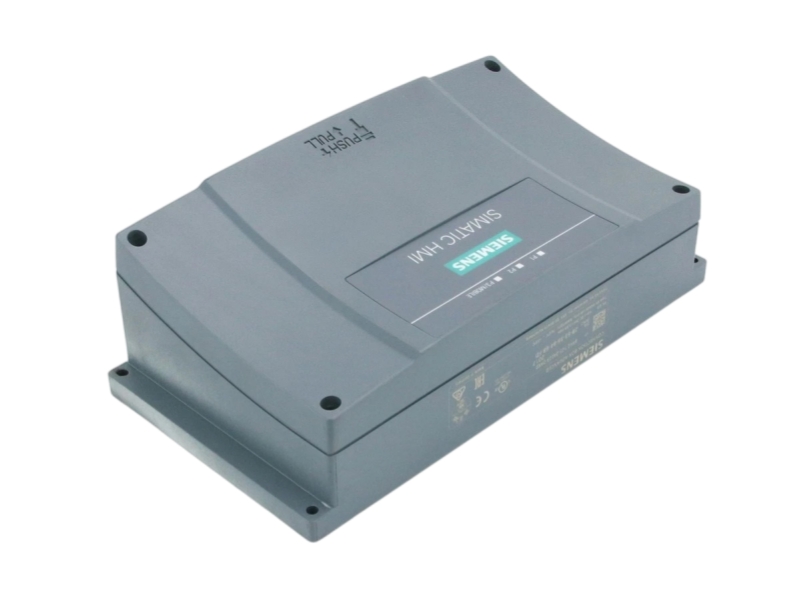

Siemens 6AV2125-2AE23-0AX0 is the SIMATIC HMI Connection Box Advanced for second-generation Mobile Panels. It is intended for wall or direct mounting and links a compatible Mobile Panel to PROFINET while supporting PROFIsafe-related safety signals.
The Advanced version provides emergency-stop circuit bridging, connection-point detection, an integrated 3-port switch, MRP client functionality and IRT. The complete order number must be checked because the compact, standard and advanced connection boxes have different mounting and safety-circuit behavior.
| Commercial field | Verified Siemens record |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6AV2125-2AE23-0AX0 |
| Product lifecycle | PM300:Active Product |
| Official designation | SIMATIC HMI Connection Box Advanced |
| Product family | Connection box for Mobile Panels (2nd Generation) |
| Product status note | Current active product |
| Country of origin | Germany |
| Technical field | Exact-model data |
|---|---|
| Product type | Connection box |
| Installation type | Wall mounting / direct mounting |
| Rated supply voltage | 24 V DC |
| Rated current consumption | 95 mA |
| Typical active power input | 2.3 W |
| Industrial Ethernet interfaces | Integrated 3-port switch |
| Supported communications | PROFINET, PROFIsafe, EtherNet/IP and Modbus |
| Network functions | MRP client and IRT |
| Safety functions | Emergency-stop circuit bridging and connection-point detection |
| Maximum safety level | PL e / SIL 3 |
| Degree of protection | IP65 all-round |
| Operating temperature | 0 to 55 °C |
| Packaging dimensions (L × W × H) | 15.6 × 24.8 × 8.0 cm |
| Siemens net weight | 0.780 kg |
| Application | System fit |
|---|---|
| Mobile Panel connection points | Provides a wall-mounted connection point between a compatible Mobile Panel and the machine network. |
| Safety-integrated operator stations | Routes PROFIsafe and hardwired safety signals, including monitored stop and enabling-device functions. |
| Managed PROFINET topologies | The integrated switch, MRP client and IRT functions support engineered industrial Ethernet installations. |
| SINUMERIK handheld terminals | Can serve documented HT 10 and applicable HT 2 installations when the complete system configuration is qualified. |
Siemens lists the exact 6AV2125-2AE23-0AX0 as PM300:Active Product. Procurement and replacement work should still verify the full order number, safety-circuit design, connected Mobile Panel and network configuration before installation.
It is the Advanced SIMATIC HMI connection box for second-generation Mobile Panels, providing network and safety-signal connectivity.
The exact variant supports PROFINET, PROFIsafe, an integrated 3-port switch, MRP client operation and IRT.
Yes. The Advanced variant supports reconnection without interrupting the emergency-stop circuit when used as documented.
The connection box uses a 24 V DC supply and provides IP65 protection all round.
Confirm the Mobile Panel generation, safety wiring, PROFINET/PROFIsafe project and exact Advanced connection-box order number.
