SIMATIC HMI COMFORT PANEL PRO
Twelve-inch widescreen operator panel for expandable supporting-foot installations.

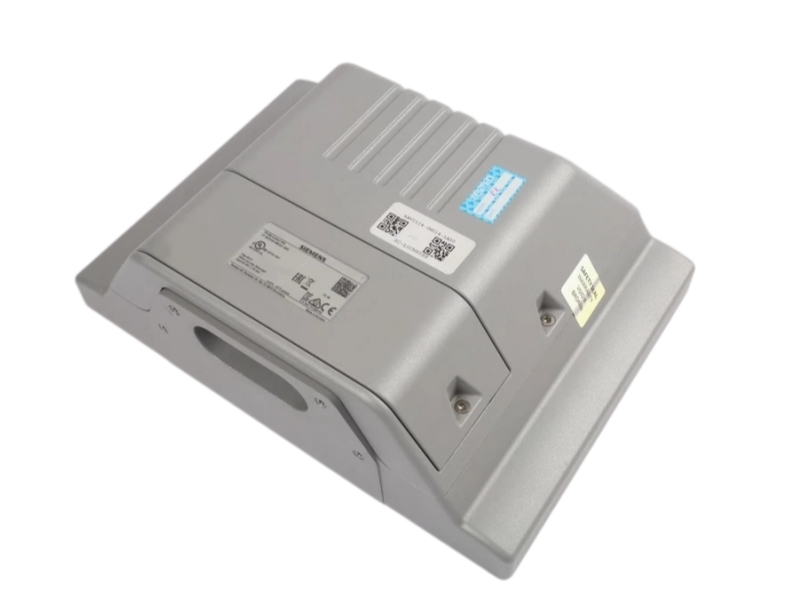

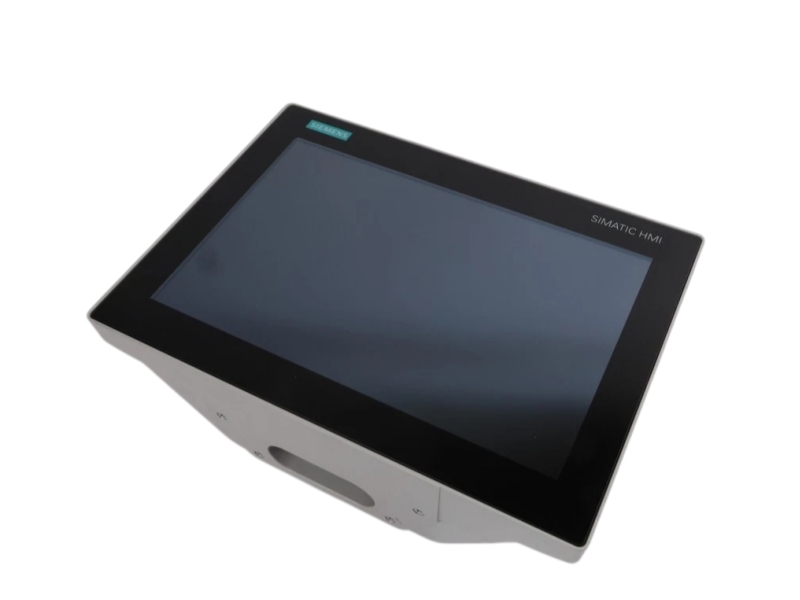

The Siemens 6AV2124-0MC24-1AX0 is a SIMATIC HMI TP1200 Comfort PRO operator panel designed for supporting-foot installation with the flange at the bottom. It combines a 12-inch widescreen TFT display, projected capacitive touch operation, PROFINET and MPI/PROFIBUS DP connectivity in a panel configuration intended for machine-level visualization. Its 24 MB configuration memory and Windows Embedded Compact 2013 platform support compatible WinCC Comfort engineering. Before procurement or replacement, verify the full suffix, mounting orientation, flange position, power supply, network interfaces, engineering-software version, project backup, panel cutout or support hardware and readable label evidence.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6AV2124-0MC24-1AX0 |
| Product Type | SIMATIC HMI TP1200 Comfort PRO |
| Product Family | Comfort Panels PRO |
| Installation Version | For supporting foot, expandable, flange at bottom |
| Display | 12-inch widescreen TFT, 1280 × 800 pixels |
| Colors | 16,777,216 |
| Operation | Projected capacitive touch |
| Interfaces | PROFINET; MPI/PROFIBUS DP |
| Configuration Memory | 24 MB |
| Operating System | Windows Embedded Compact 2013 |
| Engineering Software | Configurable from WinCC Comfort V14 SP1 with HSP |
| Supply Voltage | 24 V DC; permissible range 19.2–28.8 V |
| Rated Current / Power | 1.5 A / 36 W |
| Net Weight | 5.893 kg |
| Country of Origin | Germany |
| Machine Visualization | Operator monitoring and control where the exact TP1200 Comfort PRO configuration is specified. |
|---|---|
| Pedestal Installation | Supporting-foot HMI stations requiring the expandable version with the flange at the bottom. |
| Industrial Networking | Visualization projects using the panel’s PROFINET or MPI/PROFIBUS DP interfaces. |
| Maintenance Replacement | Replacement only after checking mechanics, project compatibility, power and network configuration. |
| Check | Procurement Requirement |
|---|---|
| Identity | Match the complete 6AV2124-0MC24-1AX0 suffix and readable Siemens label. |
| Mechanical Configuration | Confirm supporting-foot installation, expandable housing and bottom flange orientation. |
| Electrical Configuration | Verify 24 V DC supply, permissible voltage range and power requirements. |
| Interfaces | Review PROFINET and MPI/PROFIBUS DP network assignments and connector arrangements. |
| Software and Project | Confirm WinCC Comfort version, HSP requirements, project backup and runtime configuration. |
| Evidence | Review display, connector, nameplate and packaging photos before order approval. |
Siemens Industry Mall identifies 6AV2124-0MC24-1AX0 as PM300: Active Product. This lifecycle wording does not represent a Stockoems delivery-time commitment.
It identifies a SIMATIC HMI TP1200 Comfort PRO panel for supporting-foot installation with the flange at the bottom.
The official data lists a 12-inch widescreen TFT with 1280 × 800 resolution and projected capacitive touch operation.
Verify PROFINET and MPI/PROFIBUS DP assignments, connectors, addressing and the existing control-system project.
No. Siemens Industry Mall currently identifies the exact article as PM300: Active Product.
Panel-front, connector, nameplate and packaging photos can be requested before procurement approval.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Stockoems Service Route
A documented workflow for industrial automation procurement, order review and after-sales communication.
| Model and suffix verification | The complete part number and every suffix character are compared with the request and label evidence. |
|---|---|
| Condition confirmation | Visible condition, seals, housing, connectors and supplied items are reviewed before release. |
| Technical compatibility review | Supply, interfaces, ratings, hardware revision, firmware and project requirements are checked with the buyer. |
| Product and label photo confirmation | Readable product, nameplate, connector and packaging images support final identity checks. |
| Protective packaging | Packaging is selected for the product format, connector protection and international transport route. |
| Worldwide shipping | Available transport options are coordinated according to destination, product type and order requirements. |
| Shipment tracking | Tracking details are provided when available from the selected logistics route. |
| Customs documentation | Commercial and shipping documents are prepared for the agreed destination and transport method. |
| Written warranty terms | Applicable Stockoems warranty scope and conditions are documented with the order. |
| Return authorization process | Return requests follow a documented authorization and evidence review procedure. |
| After-sales response | Order records support efficient communication about delivery, condition and technical questions. |
Look for exact suffix verification, readable label evidence, clear condition language, traceable communication, written warranty terms and a defined return authorization process.
Common risks include incomplete part numbers, reused or unclear photos, unsupported compatibility claims, unexplained substitutions and unconfirmed delivery promises.
Request nameplate and connector photos, hardware or firmware information when relevant, packaging evidence and written confirmation of the ordered suffix.
Send the complete part number, required quantity, destination country and available label photos for service coordination.
