Eight-channel voltage and current output module with conformal coating for extended industrial temperature conditions.

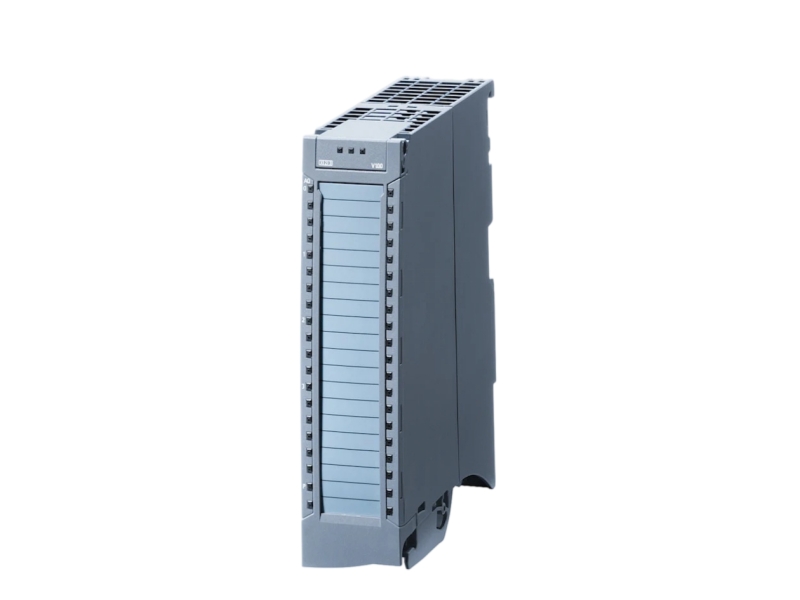

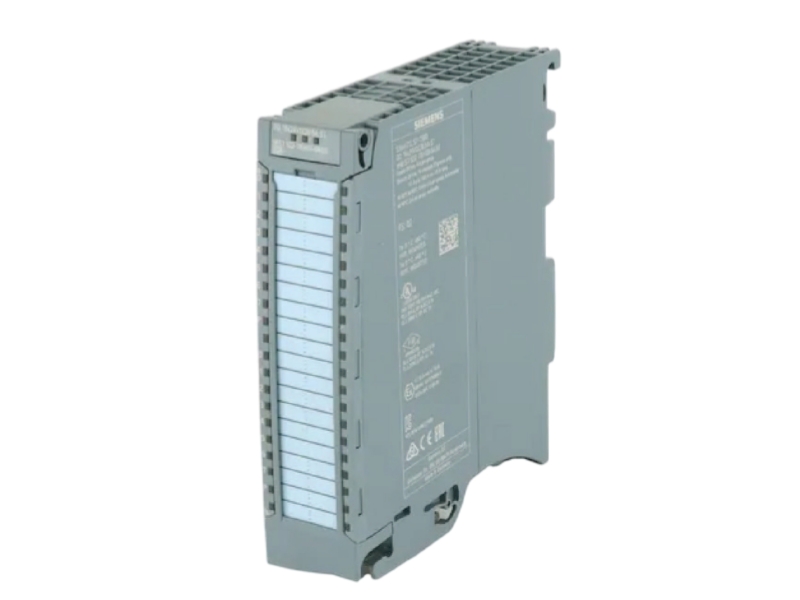

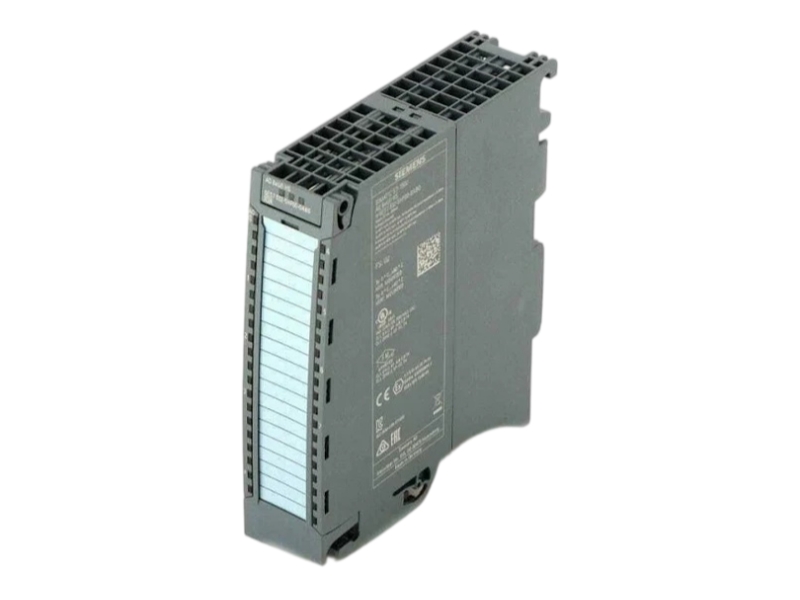

Siemens 6AG1532-5HF00-7AB0 is the SIPLUS S7-1500 AQ 8xU/I HS high-speed analog output module based on 6ES7532-5HF00-0AB0. Siemens documents eight voltage or current outputs in one group, 16-bit resolution, diagnostic functions, substitute-value support and a 0.125 ms cycle for all eight channels. The conformal-coated SIPLUS design is specified for extended temperature conditions. Procurement should verify the complete MLFB, signal type, channel grouping, terminal and shielding arrangement, TIA Portal hardware configuration, firmware, permitted ambient conditions and installed base module before treating any similar S7-1500 output module as interchangeable.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6AG1532-5HF00-7AB0 |
| Product Type | SIPLUS S7-1500 AQ 8xU/I HS analog output module |
| Based On | 6ES7532-5HF00-0AB0 |
| Series | SIPLUS S7-1500 |
| Analog Outputs | 8 |
| Channel Grouping | 1 group of 8 channels |
| Output Signals | Voltage or current |
| Resolution | 16 bit |
| Documented Accuracy | 0.4% |
| Processing Cycle | 8 channels in 0.125 ms |
| Functions | Diagnostics and substitute value |
| Environmental Design | Conformal coating |
| Temperature Range | -40 to +70 °C; startup from -25 °C |
| Included Components | Infeed element, shielding bracket and shield terminal |
| Official Lifecycle | PM300: Active Product |
| Net Weight | 0.200 kg |
| Country of Origin | GERMANY |
| Application | Engineering Relevance |
|---|---|
| High-speed analog actuation | Provides eight documented voltage or current outputs for compatible S7-1500 automation tasks. |
| Harsh-environment cabinets | SIPLUS coating and extended temperature data support defined industrial environments. |
| Process setpoint output | Suitable for verified analog command signals where range, load and cycle requirements match. |
| Exact-spare replacement | Supports maintenance when the installed MLFB, configuration, terminals and project parameters are confirmed. |
Siemens Industry Mall identifies 6AG1532-5HF00-7AB0 as PM300: Active Product. This wording is retained exactly and is not converted into a different lifecycle category. The module is based on 6ES7532-5HF00-0AB0, but procurement must preserve the complete SIPLUS MLFB because environmental construction, coating and ordering identity are part of the required configuration.
6AG1532-5HF00-7AB0 identifies a SIPLUS S7-1500 AQ 8xU/I HS eight-channel analog output module.
No. Siemens Industry Mall lists the exact model as PM300: Active Product.
Siemens documents eight voltage or current output channels arranged in one group of eight.
Verify the 16-bit resolution, 0.4% documented accuracy, signal ranges, load and 0.125 ms eight-channel cycle.
Do not assume so. Confirm the SIPLUS environmental construction, coating, temperature range and complete MLFB.
Yes. Available evidence can include the complete module, readable label, terminals, shielding accessories and packaging condition.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
A documented route from model verification to after-sales response.
Model and suffix verification, product and label photo confirmation, and condition confirmation before quotation.
Technical compatibility review covering interfaces, power, connectors, hardware revision and installed-system context.
Visual inspection, label checking and available functional evidence are organized for buyer review.
Protective packaging is selected for the housing, connectors and accessories before dispatch.
Worldwide shipping, shipment tracking and customs documentation are coordinated without unverified delivery promises.
Written warranty terms, a return authorization process and after-sales response support accountable communication.
| Quality inspection | Visible condition, label details and included items are checked against the agreed scope. |
|---|---|
| Label verification | The complete part number, suffix and available revision markings are compared before dispatch. |
| Packaging handling | Connectors and housings receive protective packing appropriate to international transport. |
| Documentation | Commercial and customs documents are prepared for the agreed shipment arrangement. |
| After-sales communication | Questions are handled with the order record, inspection evidence and written terms available for review. |
Check whether the supplier preserves complete part numbers, provides traceable photographs, explains commercial terms in writing and asks for installed-system details before claiming compatibility.
Request clear product, nameplate, connector, seal, accessory and packaging photos together with written condition, warranty and shipping terms.
Watch for shortened model numbers, copied specifications, unclear condition, unverifiable inventory quantities, guaranteed compatibility without engineering review and pressure to accept undocumented substitutes.
Compare the complete suffix, hardware revision, electrical ratings, interfaces, connectors, software requirements, project configuration, mounting and official migration guidance.
Share the complete part number, quantity, destination and clear label photos for a focused availability and compatibility review.
