Siemens 6AG1522-1BL01-7AB0 provides 32 diagnostic 24 V DC outputs for SIPLUS S7-1500 applications in extended temperatures.

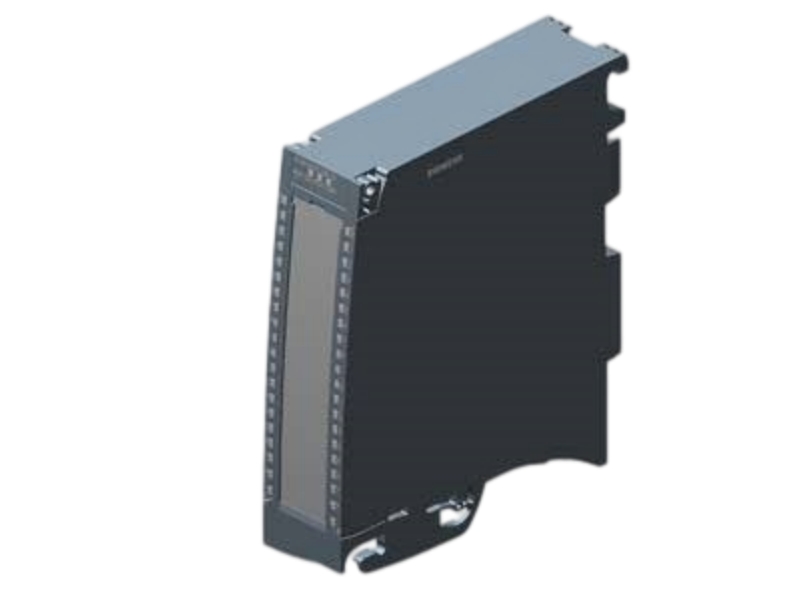

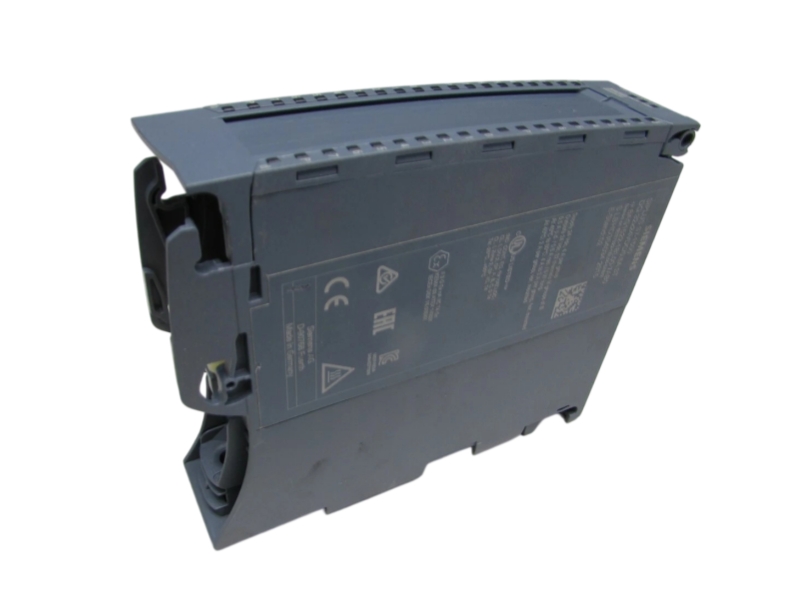

Siemens 6AG1522-1BL01-7AB0 is a SIPLUS S7-1500 DQ 32x24 V DC/0.5 A digital output module based on 6ES7522-1BL01-0AB0. Its conformal-coated design is specified for -40 to +70 °C operation. The module provides 32 outputs arranged in groups of eight, with 4 A available per group, single-channel diagnostics and substitute-value support. Procurement must confirm the SIPLUS order number rather than assuming that the standard base module is environmentally equivalent.
| Item | Details |
|---|---|
| Product Condition | Original new |
| Availability | Confirm current stock before ordering |
| Manufacturer Lifecycle | PM300: Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Note: Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Parameter | Verified Detail |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6AG1522-1BL01-7AB0 |
| Product Family | SIPLUS SM 522 |
| Product Type | Digital Output Module |
| Base Product | 6ES7522-1BL01-0AB0 |
| Output Channels | 32 |
| Output Voltage | 24 V DC |
| Rated Output Current | 0.5 A per channel |
| Channel Grouping | Groups of 8 |
| Current per Group | 4 A |
| Diagnostics | Single-channel diagnostics |
| Output Behavior | Substitute-value support |
| Environmental Design | Conformal coating |
| Specified Temperature Range | -40 to +70 °C |
| Country of Origin | Germany |
| Review Area | Application Guidance |
|---|---|
| System Context | SIPLUS S7-1500 automation systems |
| Control Role | Switches 32 field loads from the PLC output image |
| Environmental Use | Extended-temperature and conformal-coated installations |
| Diagnostic Support | Single-channel diagnostics for maintenance visibility |
| Typical Applications | Machine control, process skids and outdoor or harsh-environment cabinets |
| Maintenance Use | Exact SIPLUS replacement or qualified project spare |
Siemens lists 6AG1522-1BL01-7AB0 as PM300: Active Product. Procurement should still verify current availability, hardware revision and project compatibility at the time of order.
Send the complete part number, quantity, destination country and nameplate photos for availability and compatibility review.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Email SalesWhatsApp SalesVerification, inspection, packaging and logistics support for Siemens 6AG1522-1BL01-7AB0
Our process is designed to give purchasing teams and engineers clear evidence before shipment. Each request is handled around the exact order number, condition requirement and destination rather than a generic product description.
| Service Step | What We Check |
|---|---|
| Model and Suffix Verification | The complete Siemens order number, suffix and visible revision markings are compared with the request. |
| Condition Confirmation | Packaging, seals, enclosure condition and included items are reviewed against the offered condition. |
| Technical Compatibility Review | Available labels, interfaces, connector arrangements and customer-provided system details are compared before approval. |
| Product and Label Photos | Clear inspection images can be supplied for model, revision, connector and condition confirmation. |
| Protective Packaging | Antistatic protection, cushioning and an outer carton are selected for industrial electronic modules. |
| Worldwide Shipping | Available carrier options are coordinated according to destination, package requirements and applicable restrictions. |
| Tracking and Customs Documents | Shipment tracking and standard commercial documents are prepared for the selected route. |
| Warranty and Returns | Written warranty terms and the return authorization process are provided with the commercial agreement. |
| After-Sales Response | Our team follows up on documentation, shipment status and reported product issues. |
Before dispatch, the team checks the visible manufacturer label, order number, revision markings, physical condition and available accessories. Product evidence is compared with the quotation and buyer requirements. Packaging and shipping documents are then prepared for the agreed transport route. This process supports traceable communication without promising unverified quantities or fixed delivery times.
Look for complete company contact details, clear product identification, inspection evidence, written commercial terms and a documented after-sales process.
Confirm the quotation, full order number, product-label photos, condition statement, warranty scope, shipping terms, customs documents and return authorization procedure.
Compare the complete model and suffix, hardware revision, connectors, rack location, power arrangement, signal assignment and project configuration with the installed system.
Warning signs include an incomplete model number, refusal to provide label photos, conflicting specifications, unclear condition descriptions and no explained return process.
Email and WhatsApp details are provided for model verification, inspection requests, packaging coordination and shipping support.
