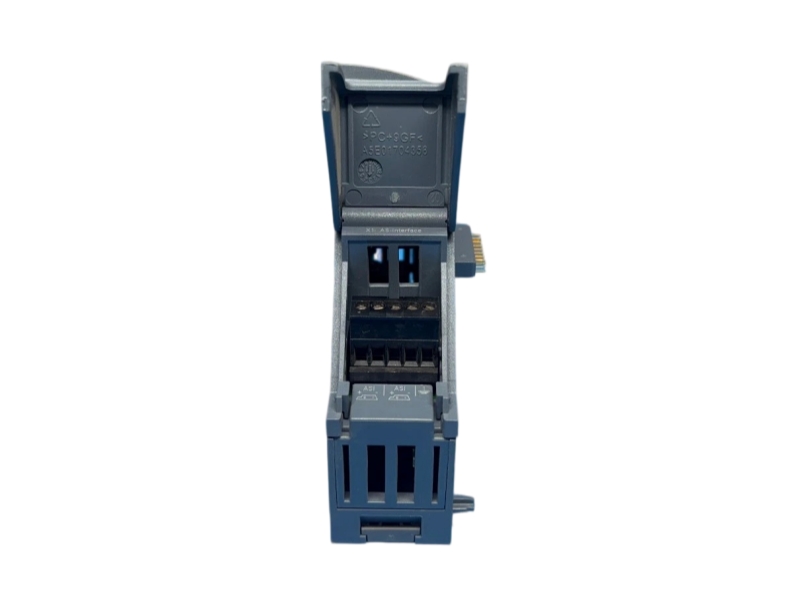

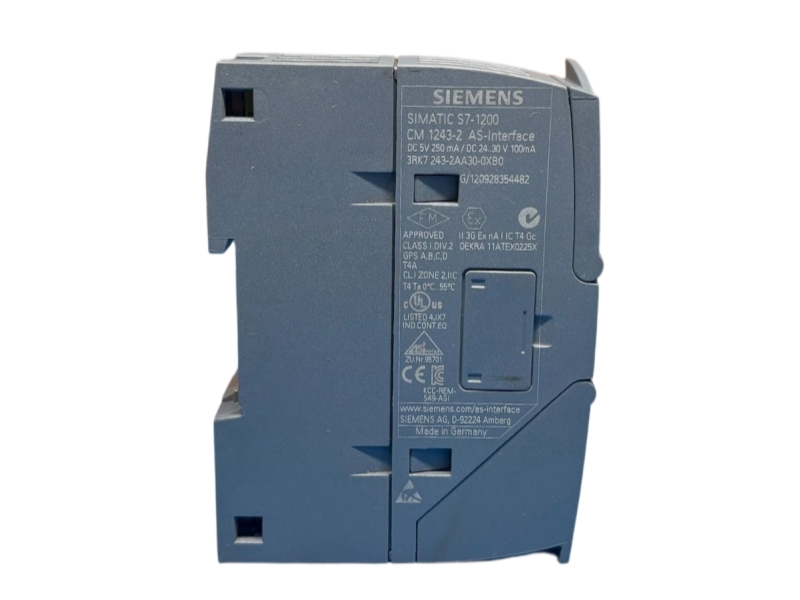

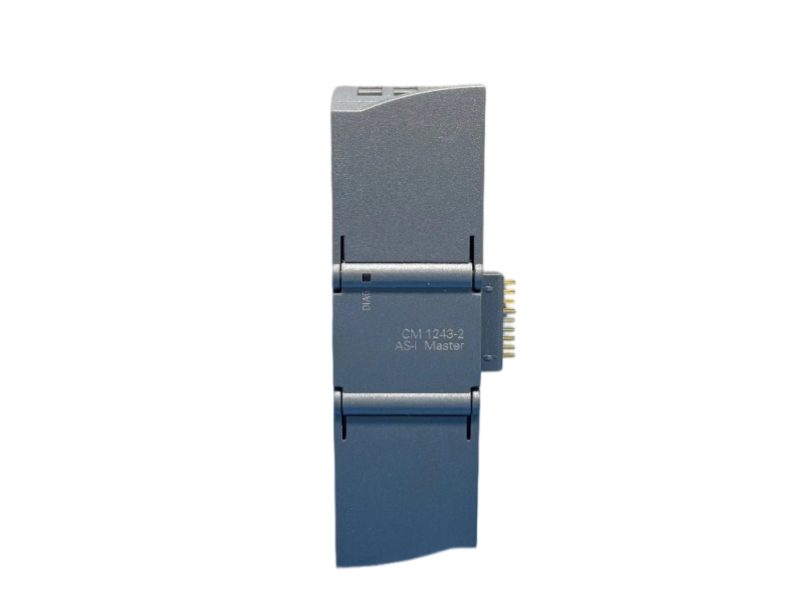

CM 1243-2 communication module for integrating an S7-1200 station with an AS-Interface network.
Siemens 3RK7243-2AA30-0XB0 is the SIMATIC S7-1200 CM 1243-2 communication module operating as an AS-Interface master. Official Siemens data identifies one AS-i interface, AS-i specification V3.0 support and communication through the S7-1200 backplane. The module is intended to connect distributed AS-i slaves to an S7-1200 automation station for compact sensor and actuator networking. Procurement should verify the complete order code, CPU and project configuration, AS-i network layout, slave count, addressing, power and data decoupling, removable terminal assignment, STEP 7 configuration and the installed mounting position before replacement.
| Field | Verified Information |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM300: Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
| Field | Verified Information |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 3RK7243-2AA30-0XB0 |
| Product Type | SIMATIC S7-1200 CM 1243-2 AS-i master communication module |
| Product Family | SIMATIC S7-1200 |
| AS-Interface Specification | V3.0 |
| AS-Interface Ports | 1 |
| Maximum Transfer Rate | 167,000 bit/s |
| AS-i Bus Cycle | 5 ms with 31 slaves; 10 ms with 62 slaves |
| Backplane Current | Maximum 0.25 A from the S7-1200 backplane |
| AS-i Cable Current | Maximum 0.1 A without external 24 V supply |
| Power Dissipation | 2.9 W |
| Mounting | Snap-on mounting on 35 mm DIN rail |
| Dimensions | 30 x 100 x 75 mm |
| Included Connection Hardware | Removable terminals |
| Net Weight | 0.154 kg according to Siemens Industry Mall |
| Country of Origin | GERMANY |
| Application Area | Product-Specific Guidance |
|---|---|
| Control System Fit | SIMATIC S7-1200 stations requiring an AS-Interface master connection. |
| System Role | Coordinates communication between the controller and connected AS-i slaves. |
| Typical Applications | Compact sensor and actuator networks in machinery, conveyors, handling and assembly systems. |
| Maintenance Use | Exact CM 1243-2 replacement where project, addressing and wiring must be preserved. |
| Configuration Importance | CPU support, STEP 7 project, slave profile, addressing, topology and AS-i power arrangement must match. |
Siemens identifies 3RK7243-2AA30-0XB0 as PM300: Active Product. This page retains that exact lifecycle wording and does not infer phase-out or discontinuation. Compatibility still depends on the S7-1200 CPU, project configuration, AS-i slave profiles, addressing, power arrangement, terminals and network topology.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Structured verification, inspection, documentation and delivery support for 3RK7243-2AA30-0XB0.
Our workflow begins with exact model and suffix verification against the purchase request and available product label. For this CM 1243-2, the team compares the S7-1200 host, AS-i V3.0 network, slave count, addressing, cycle requirements, shaped cable, power arrangement, removable terminals and project configuration. Compatibility is reviewed for the installed station without promising automatic interchangeability.
