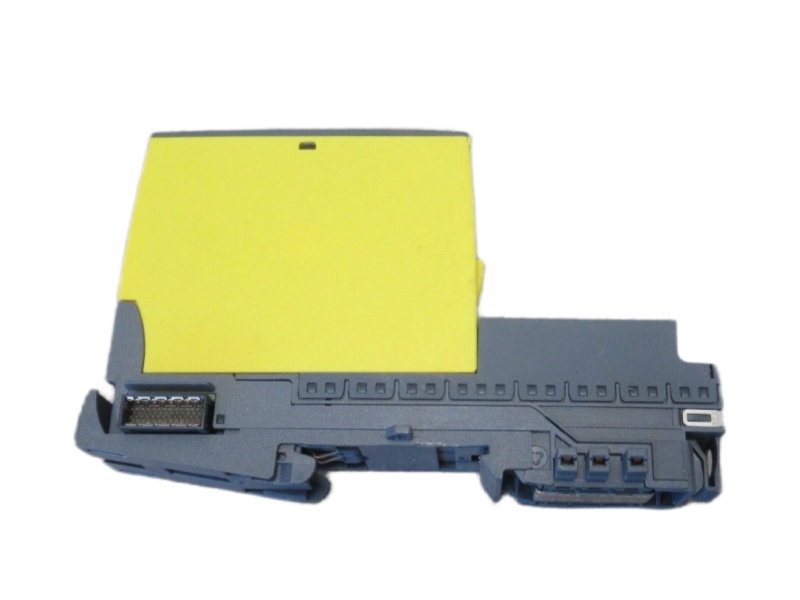

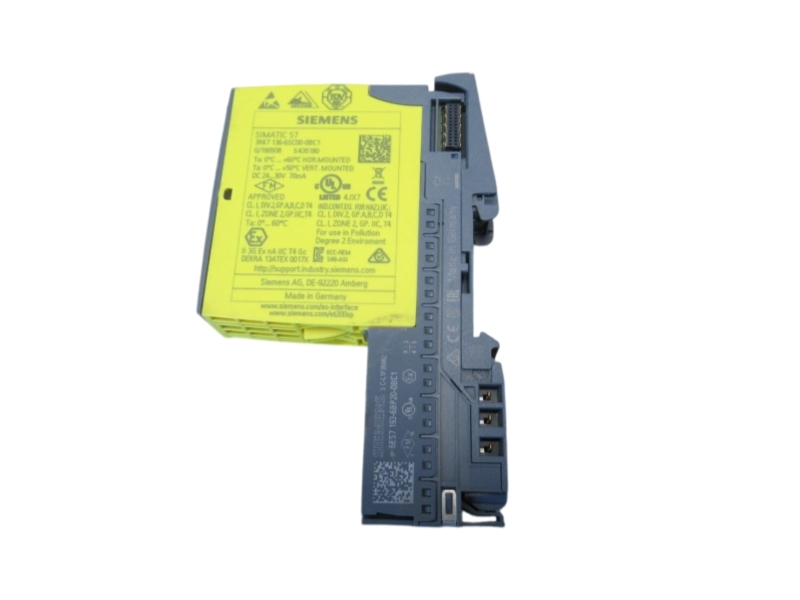

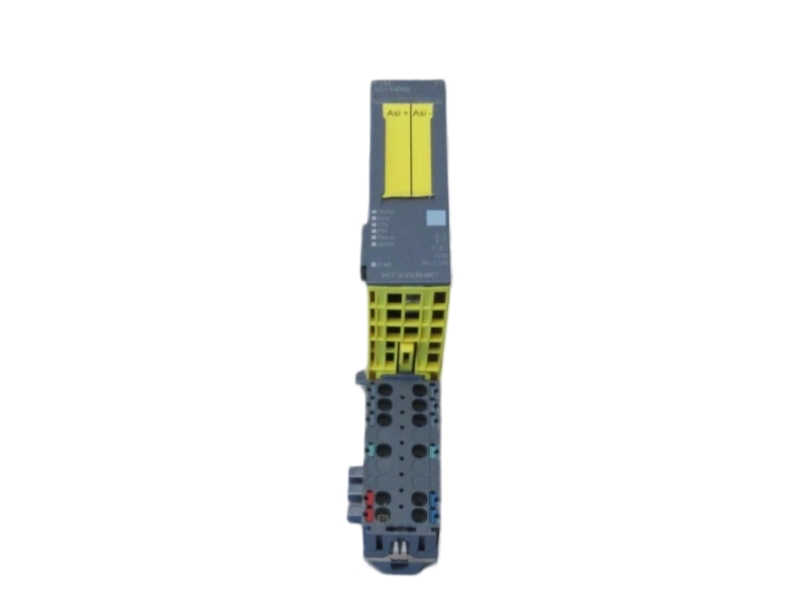

SIMATIC ET 200SP F-CM AS-i Safety ST Communication Module
The Siemens 3RK7136-6SC00-0BC1 F-CM AS-i Safety ST links ASIsafe safety communication to the SIMATIC ET 200SP backplane and supports PROFIsafe integration. It is engineered with STEP 7 Safety and provides one AS-Interface interface for safety-related machine and plant applications.
| Official lifecycle wording | PM300: Active Product |
| Procurement note | Confirm current availability, exact article number, firmware or project requirements and supplied accessories before ordering. |
| Manufacturer | Siemens |
| Complete article number | 3RK7136-6SC00-0BC1 |
| Product designation | F-CM AS-i Safety ST |
| Product type | ASIsafe communication module |
| System platform | SIMATIC ET 200SP |
| Protection class | IP20 |
| Voltage supply | Via AS-Interface |
| AS-i current consumption | Maximum 70 mA at 30 V; maximum 70 mA at 24 V with AS-i Power24V |
| Backplane-bus current | Maximum 30 mA |
| Power loss | 2.1 W |
| Rated insulation voltage | 500 V |
| AS-Interface configuration | STEP 7 Safety |
| AS-Interface specification | Version 3.0 |
| Data transmission | ET 200SP backplane bus |
| AS-Interface ports | 1 |
| Other interfaces | 1 |
| PROFIsafe protocol | Supported |
| AS-i Power24V | Supported |
| Digital I/O data access | Via process image |
| Dimensions (W × H × D) | 20 × 73 × 58 mm |
| Operating temperature | 0 to 60 °C on horizontal rail; 0 to 50 °C on vertical rail |
| Net weight | 0.060 kg |
Connects safety-related AS-Interface devices to the ET 200SP automation architecture.
Supports the PROFIsafe protocol for safety data exchange through the configured system.
Used in distributed safety architectures for guarded machinery and process equipment.
Verify the complete MLFB, ET 200SP station, terminal module, AS-i voltage concept, AS-i Power24V use, PROFIsafe project, STEP 7 Safety configuration and installed firmware before replacement.
Request nameplate, terminal-area and station photographs. Confirm quantity, condition, accessories, documentation, inspection requirements, warranty terms and destination.
Siemens Industry Mall lists 3RK7136-6SC00-0BC1 as PM300: Active Product. Future lifecycle decisions should continue to follow the exact article number in current Siemens documentation.
It is a Siemens SIMATIC ET 200SP F-CM AS-i Safety ST ASIsafe communication module.
The official data confirms support for the PROFIsafe protocol.
Siemens specifies AS-Interface Version 3.0.
The module is supplied through AS-Interface and is suitable for AS-i Power24V.
The official technical data specifies STEP 7 Safety for AS-Interface configuration.
Siemens Industry Mall lists PM300: Active Product for the complete article number.
Send the full order code, quantity, destination, ET 200SP station data and ASIsafe/PROFIsafe project details for availability and compatibility review.
Technical identification, ASIsafe and PROFIsafe compatibility review, sourcing coordination, inspection planning and global delivery support for ET 200SP safety projects.
We compare the complete 3RK7136-6SC00-0BC1 article number, F-CM AS-i Safety ST designation, ET 200SP station design, AS-Interface network, PROFIsafe project and STEP 7 Safety configuration supplied with the inquiry.
This prevents the safety module from being confused with an AS-i master, a standard communication module or another ET 200SP variant. Terminal-module, voltage and Power24V information are reviewed when available.
Before dispatch, the agreed evidence can cover the nameplate, enclosure, plug-in area, contacts, LED label area and included accessories. Visible damage, contamination, storage condition and packaging needs can be added to the inspection scope.
The commercial review also aligns requested condition, quantity, lead time, warranty terms, supporting documents and destination-specific shipment requirements.
The full order code, system role and safety-network requirements are reviewed as one configuration rather than as isolated keywords.
Procurement, engineering and maintenance teams receive a shared checklist covering hardware, project and commercial evidence.
Packing, documentation, transport preference and delivery destination are aligned early to support the maintenance schedule.
| Stage | Order support |
| 1. Inquiry | Send 3RK7136-6SC00-0BC1, quantity, destination and available ET 200SP or nameplate evidence. |
| 2. Compatibility review | We compare ASIsafe, PROFIsafe, terminal-module, voltage, Power24V, firmware and STEP 7 Safety requirements. |
| 3. Commercial alignment | Availability, condition, lead time, inspection evidence, warranty and delivery expectations are confirmed. |
| 4. Packing and dispatch | Protective packing and shipment documentation are coordinated for the destination and selected transport method. |
Share the exact quantity, ET 200SP configuration, AS-i network, PROFIsafe project and destination for an availability and compatibility review.
