22.5 mm interconnection base for AS-i bus and Uaux distribution between SlimLine Compact modules.

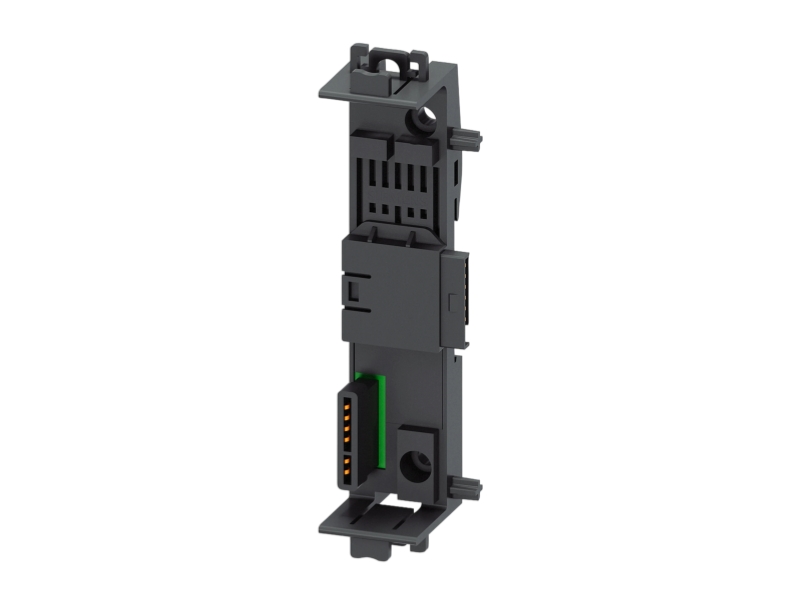

Siemens 3RK1901-1YA10 is the device connector for 22.5 mm AS-i SlimLine Compact modules. When several compatible modules are mounted together, it connects the AS-i bus circuit and the 24 V DC auxiliary supply Uaux across the group.
This is a standard device connector, not the termination connector for the last module. Engineering checks must verify 22.5 mm enclosure width, the supported SlimLine Compact module family and correct U_ASI/Uaux wiring.
| Article number | 3RK1901-1YA10 |
| Manufacturer | Siemens |
| Lifecycle | PM300: Active Product |
| Lifecycle milestone | Current Siemens lifecycle classification for this exact article |
| Supply handling | Active catalog product; verify stock and delivery before quotation |
| Product designation | Device connector for enclosure |
| Product family | AS-i SlimLine Compact |
| System | AS-Interface |
| Enclosure width | 22.5 mm |
| Primary function | Electrical connection between SlimLine Compact modules |
| Bus circuit | U_ASI |
| Auxiliary supply | Uaux 24 V DC (PELV) |
| Use case | Several compatible SlimLine Compact modules in one group |
| Connector role | Standard interconnection base |
| Termination function | No; the 22.5 mm termination connector is 3RK1901-1YA11 |
| Official compatible family | 22.5 mm digital SlimLine Compact modules |
| Official compatible example | 3RK2200-2C.00-2AA2 |
| Official compatible example | 3RK2402-2M.00-2AA2 |
| Official compatible example | 3RK2100-1C.00-2AA2 |
| Official catalog | Siemens IC 10 · 2025 |
Use 3RK1901-1YA10 within the group; the last 22.5 mm module requires the distinct 3RK1901-1YA11 termination connector.
Siemens classifies 3RK1901-1YA10 as PM300: Active Product. The exact connector role, 22.5 mm module width and distinction from termination connector 3RK1901-1YA11 must still be verified.
It is a Siemens device connector for 22.5 mm AS-i SlimLine Compact modules.
It carries the AS-i bus circuit U_ASI and 24 V DC auxiliary supply Uaux between modules.
This exact connector is specified for 22.5 mm SlimLine Compact modules.
No. The 22.5 mm termination connector for the last module is 3RK1901-1YA11.
No. Siemens specifies 3RK1901-1YA00 for the 17.5 mm device-connector width.
Confirm the module family, enclosure width, group position, U_ASI/Uaux wiring and exact connector suffix.
Send the SlimLine Compact module list and group layout for compatibility, supply, global delivery and warranty verification.
Technical identity checks, module-group review, supply coordination and international delivery for 3RK1901-1YA10.
We compare 3RK1901-1YA10 with the installed 22.5 mm SlimLine Compact modules and group position.
U_ASI, 24 V DC Uaux, enclosure width and termination-connector requirements are reviewed.
Condition, packaging, documentation, delivery options and warranty terms are aligned with the confirmed article.
Full Siemens markings, module-group photographs, connected article numbers, wiring details, quantity and destination.
Confirm 22.5 mm module width, U_ASI/Uaux wiring and whether the position requires a standard or termination connector.
Share the complete SlimLine Compact module group for a documented compatibility and supply response.
