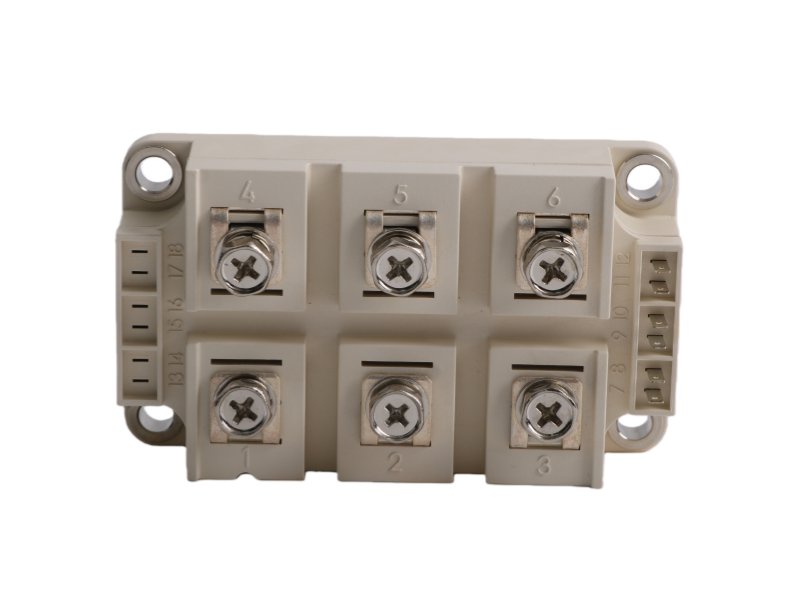

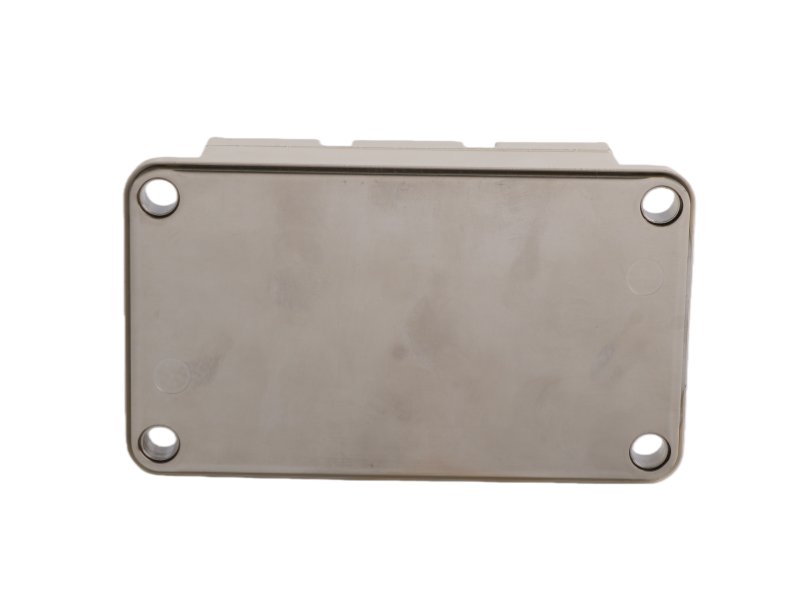

The SEMIX353GB126V1 Driver board SEMIKRON is a high-performance IGBT power module utilizing advanced trench gate technology, designed for demanding industrial power conversion applications. This module is rated for 1200V and 350A, forming a compact half-bridge configuration that efficiently handles significant power levels in systems like motor drives and UPS. The construction of the Trench IGBT Modules SEMIKRON SEMIX353GB126V1 incorporates homogeneous silicon technology, which contributes to its stable and predictable switching characteristics under various operational conditions.

A key electrical feature of this module is its low collector-emitter saturation voltage [VCE(sat)], which directly translates to reduced conduction losses and higher overall system efficiency. Furthermore, this parameter exhibits a positive temperature coefficient, a critical advantage of the Ceramic Power Module SEMIKRON SEMIX353GB126V1 that promotes even current distribution across multiple parallel-connected chips and simplifies thermal management. The integrated NTC thermistor provides a vital feature for real-time temperature monitoring, allowing control systems to implement proactive protection strategies.

The SEMIX353GB126V1 SEMIKRON Trench IGBT Modules is engineered for reliability in challenging environments, boasting a high short-circuit withstand capability that enhances system robustness. It has received UL recognition (file E63532), confirming its compliance with international safety standards. The module's design, while noting a maximum operating case temperature of 125°C, ensures stable performance in applications such as AC inverter drives and welding equipment, where the SEMIKRON SEMIX353GB126V1 demonstrates consistent operation.

In summary, the combination of trench gate technology, efficient thermal properties, and built-in protection mechanisms makes the AC DRIVE SEMIX353GB126V1 SEMIKRON a superior choice for power electronic designers. Its ability to deliver high current capability with low losses provides a significant advantage in optimizing the performance and reliability of industrial power systems, solidifying its role as a key component in modern energy conversion solutions.
