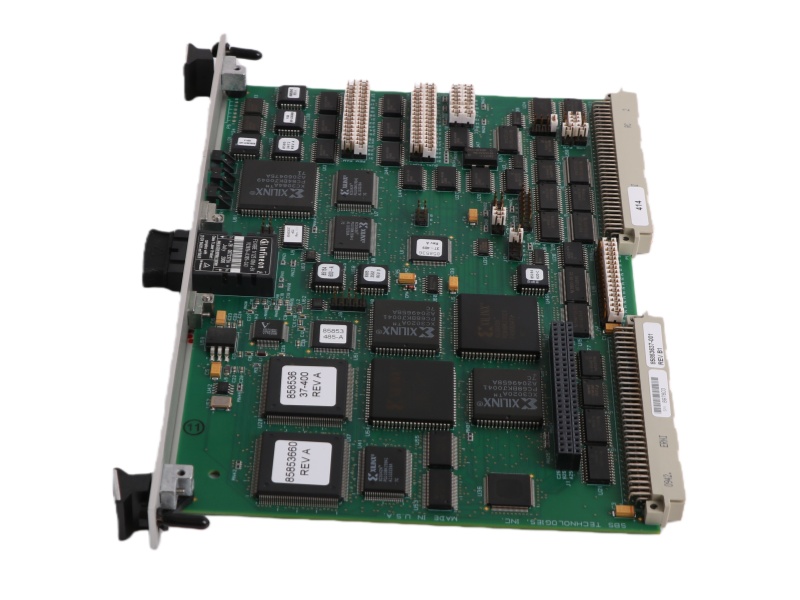

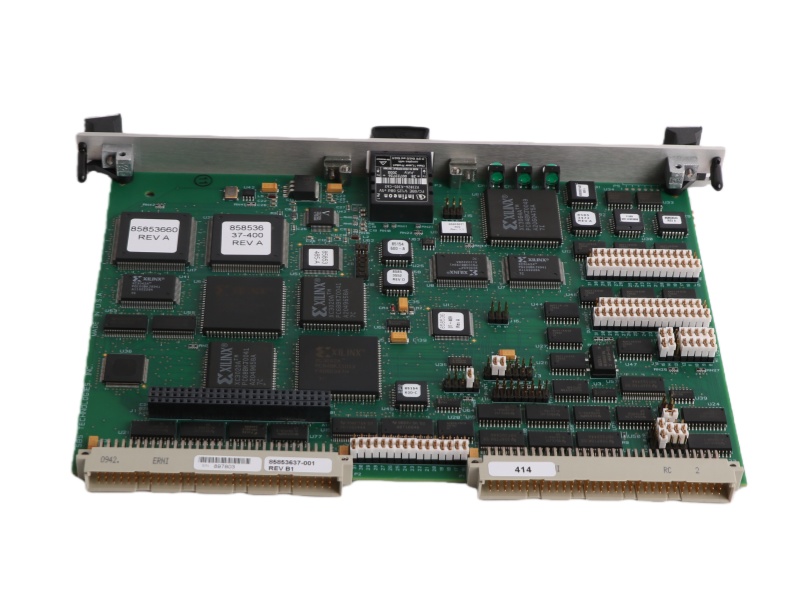

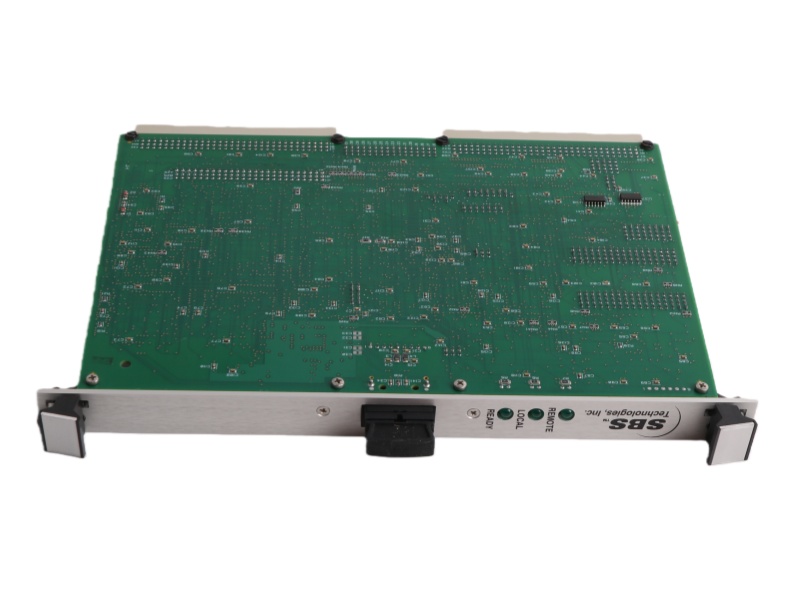

The 85853637-001 SBS VMEbus is a versatile VME to PCI bus adapter, originally part of the GE Fanuc / SBS Model 618-3 series. It serves as a crucial bridge, creating a unified virtual bus between VME and PCI systems for seamless and high-performance operation. This integration allows diverse computing hardware to function as a single, cohesive unit, maximizing the benefits of both architectures.

Key technical features of the SBS 85853637-001 CONTROL MODULE include Bi-Directional Bus Mastership and sophisticated Memory and I/O Mapping capabilities. It supports high-speed Controller Mode DMA with a transfer rate of 35 MB/s, ensuring efficient data movement. Furthermore, this model can operate in VME System Controller Mode and performs essential Data Checking on the interface between cards to guarantee data integrity.

The design of the VME Board 85853637-001 SBS emphasizes robust performance and reliability in demanding industrial and embedded computing environments. By combining VMEbus connectivity with PCI capabilities and fiber-optic support, it offers a powerful and cost-effective solution. This makes the adapter ideal for complex applications requiring the consolidation of different bus standards.

Ultimately, the 85853637-001 VME Board SBS provides a proven method for system expansion and modernization. Its ability to merge two distinct systems enables superior performance and operational synergy. For legacy systems needing enhanced connectivity, the Circuit Board 85853637-001 SBS delivers a reliable and high-performance bridging solution.
