QUINT-PS/1AC/24VDC/10 2866763 Overview

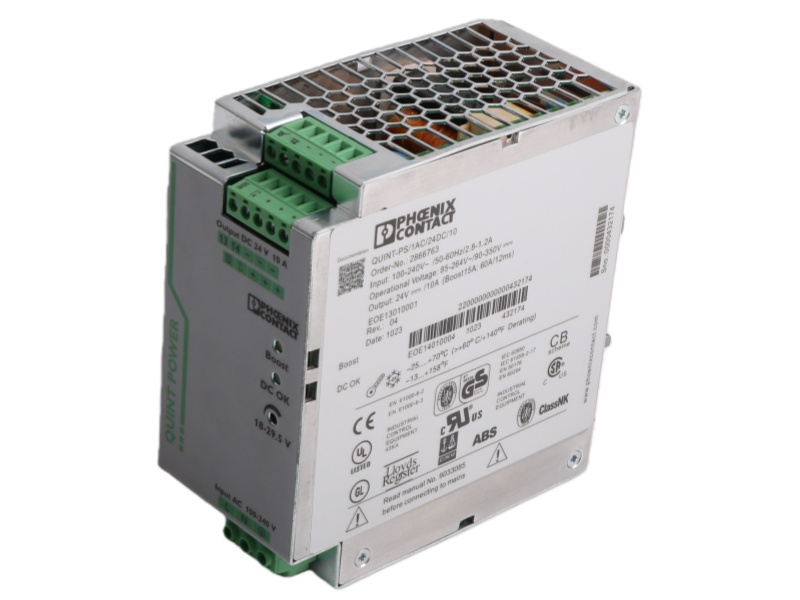

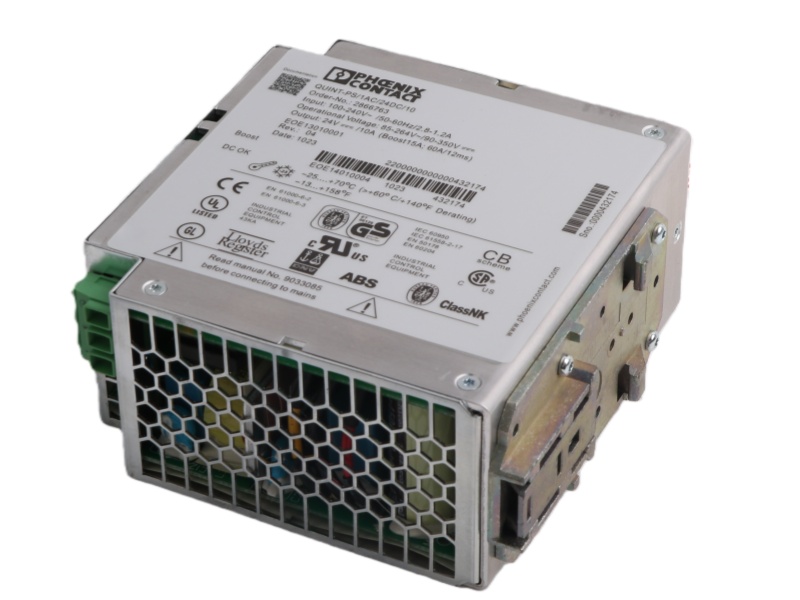

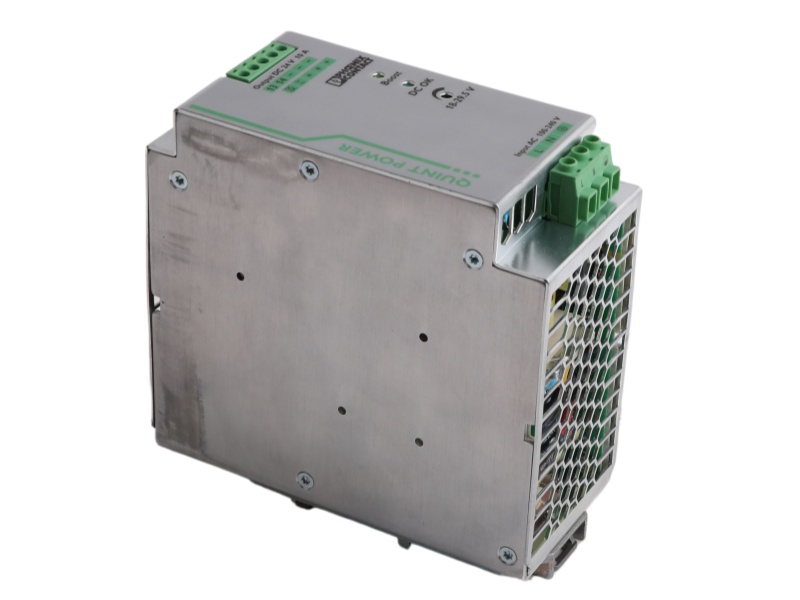

The PHOENIX power supply QUINT-PS/1AC/24VDC/10 2866763 is a power supply delivering 24VDC/10A, renowned for its SFB technology. This ensures superior system availability by selectively isolating faults and providing high inrush current for reliable load switching.

Key Features

SFB Technology: Ensures selective disconnection of faults to maximize system availability.

Dynamic Power Reserve: Provides 6x nominal current for 12ms to reliably trip standard circuit breakers.

POWER BOOST: Offers static power reserve for starting difficult loads.

Preventive Monitoring: Continuously tracks output voltage/current and reports critical operating modes.

Global Compatibility: Designed for worldwide use with broad input voltage range.

High Reliability: Features MTBF >500,000 hours, mains buffering >20ms, and dielectric strength up to 300V AC.

FAQ

Q1: What is the core technology of this power supply?

A1: It features SFB (Selective Fusebreaking Technology) which selectively disconnects fault paths while keeping the main system operational.

Q2: How does it protect circuit breakers?

A2: Its dynamic power reserve provides 6x nominal current for 12ms, enabling quick tripping of standard circuit breakers.

Q3: Can it handle challenging startup loads?

A3: Yes, its static POWER BOOST reserve ensures reliable starting of difficult loads.

Q4: How does it support system maintenance?

A4: Through preventive function monitoring that continuously tracks output parameters and reports critical conditions before failures occur.

Q5: What are its reliability specifications?

A5: It offers high reliability with MTBF >500,000 hours, mains buffering >20ms, and dielectric strength up to 300V AC.
