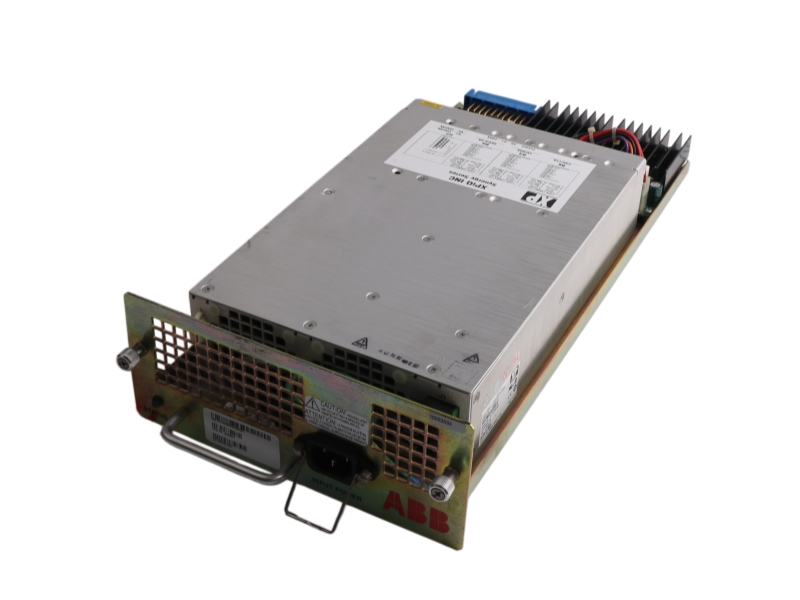

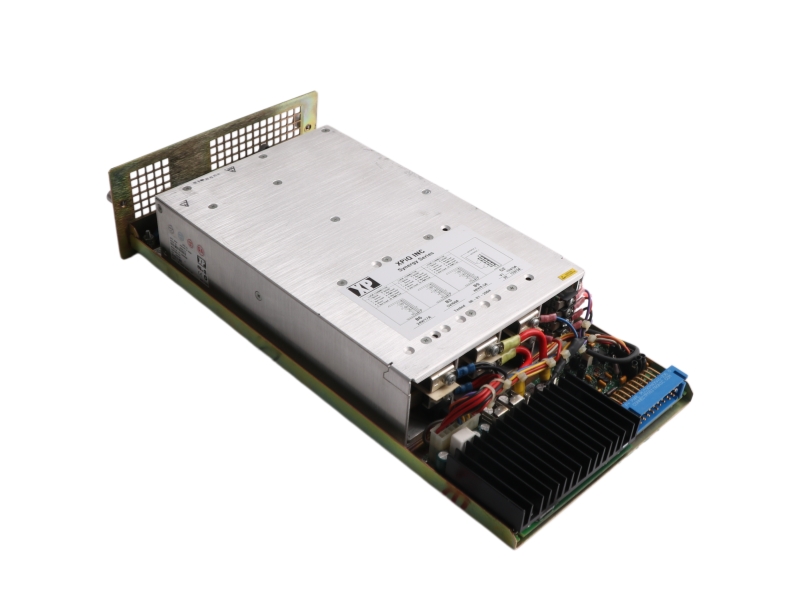

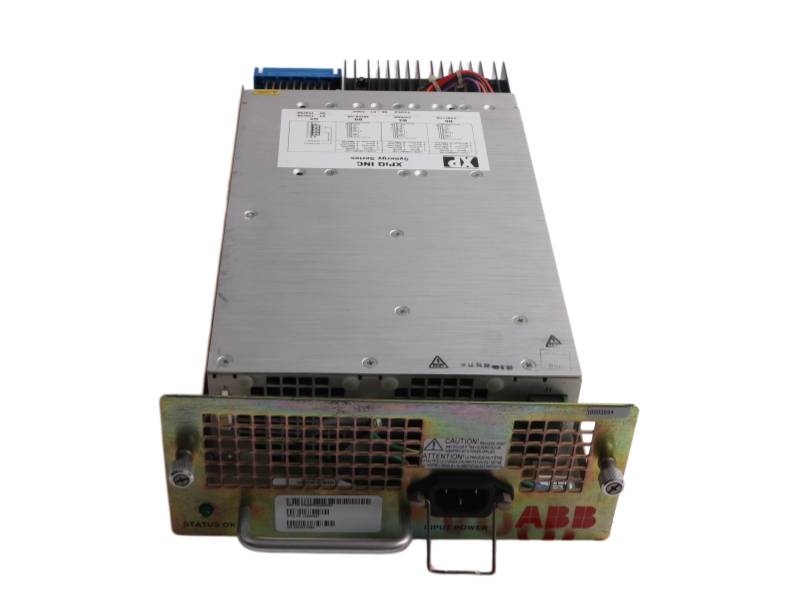

Core Features

• High-Density Multi-Rail Output: Delivers five distinct regulated DC voltage rails (5V, +15V, -15V, 24V, and 48V) from a unified, compact system footprint.
• High-Current 5V Rail Provision: Provides a massive 60 Amp load capability at 5V DC specifically to handle extensive processing and logic architectures.
• Integrated High-Voltage Auxiliaries: Incorporates a 24V rail at 17A and a 48V rail at 8.5A to drive loop interrogation and field device networking demands simultaneously.
• Standardized MPS III Form Factor: Built explicitly to slide into S+ HR (Symphony Plus High Reliability) Modular Power System III tray enclosures.
• Compact Industrial Envelope: Formed within space-saving mechanical boundary dimensions measuring 127 mm × 508 mm × 254 mm.

System Compatibility & Alternative Models

• System Compatibility: Fully compatible with ABB Symphony Harmony, INFI 90, and S+ HR (Symphony Plus High Reliability) systems. It seats directly into the standard PHARPS32200000 Power Supply Tray framework to communicate with downstream Block I/O networks.
• Alternative Model (Legacy Power Infrastructure Variation): NTPS01 or standard INFI 90 Power Supply Modules.

• Difference: The PHARPS32200000 belongs to the modernized MPS III architecture, offering high power density (e.g., 5V at 60A) and enhanced diagnostic capabilities. Legacy NTPS series or early INFI 90 power models feature lower current thresholds on the 5V rail and utilize older form factors incompatible with S+ HR-Modular Power System III trays.

• Alternative Model (Simplex Non-Modular Sub-Component): Standard Single-Output Industrial Power Bricks.

• Difference: The PHARPS32200000 is a specialized multi-output system module delivering five distinct voltage rails simultaneously from a unified chassis. A standard commercial single-output brick provides only one dedicated voltage lane and lacks the specific plug-in backplane architecture required for Symphony control racks.

Ordering Information Table Breakdown

Installation & Troubleshooting FAQ

Q1: What are the exact structural size dimensions and physical weight of this power supply module?

A: The power supply features a net depth/length of 127 mm, a net height of 508 mm, and a net width of 254 mm. The net structural weight of the module hardware is exactly 1 kg, allowing for straightforward handling during rack mounting.

Q2: What are the precise electrical output current ratings for each voltage rail on this module?

A: This unit delivers highly regulated power split across five key rails: the 5V DC rail provides up to 60A, both the +15V DC and -15V DC rails support up to 3A each, the 24V DC rail delivers up to 17A, and the 48V DC rail provides up to 8.5A.

Q3: How should a module fault be resolved if one of the low-voltage rails stops delivering output power?

A: First, isolate the incoming AC/DC grid source and pull the module from its chassis slot. Inspect the rear interface pins for debris or scoring, and ensure that the field load draw does not exceed the maximum current ratings (such as 60A on the 5V rail). If the system loads are normal but the rail remains dead, internal fuse structures have likely tripped, and the module must be sent to an authorized center for component repair.
