S8VK-C48024 Overview

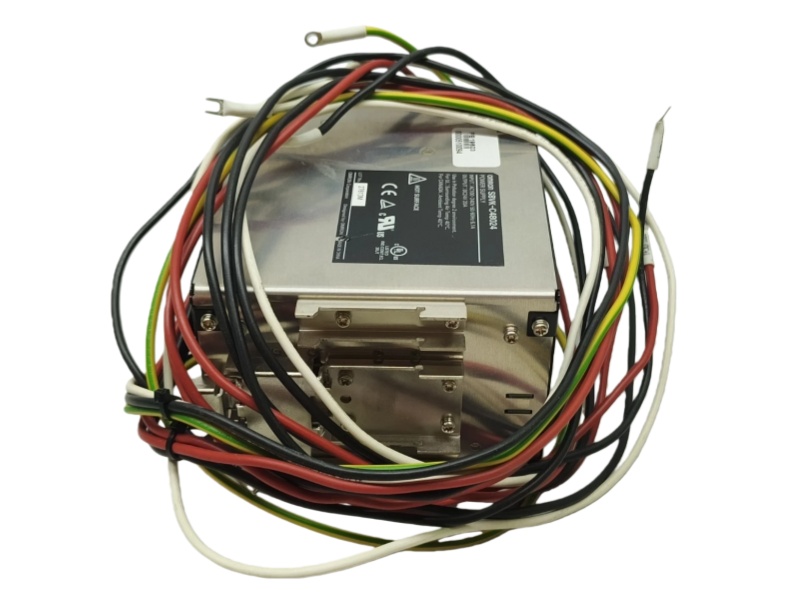

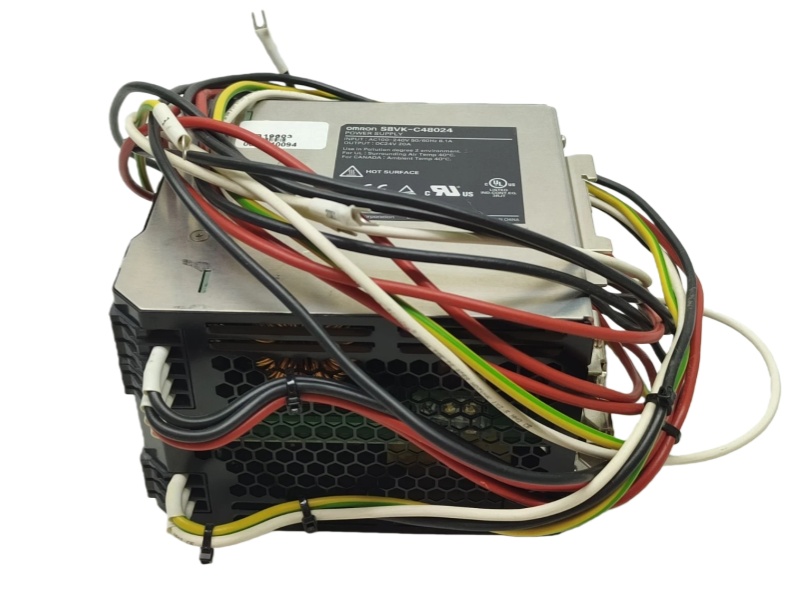

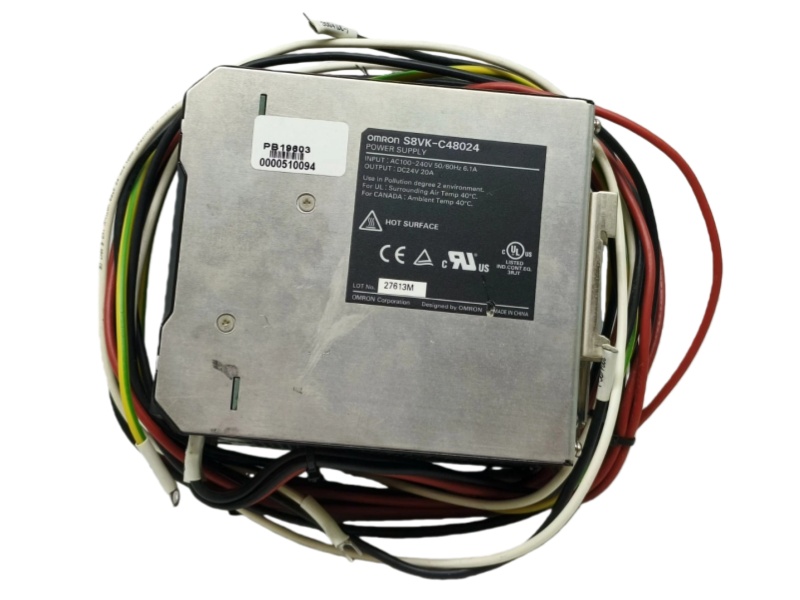

The Omron Power Supply S8VK-C48024  is a compact, single-phase AC-DC power supply delivering 480W output. It provides a stable 24VDC at 20A, featuring universal input and comprehensive safety certifications for reliable industrial use.

Product Features

• High Power Output: Delivers 480W with a single 24VDC output rated at 20A for demanding industrial loads.

• Universal Input: Supports worldwide AC (100-240VAC) and DC (90-350VDC) voltage inputs.

• Robust Protection: Features automatic overload protection and is built to meet strict international safety standards.

• Compact Design: Offers a space-saving form factor with flexible mounting options for efficient panel use.

• Wide Temperature Range: Operates reliably in temperatures from -25°C to 60°C.

• Application Flexibility: Can be used with two phases of a three-phase system under specified conditions, enhancing versatility.

FAQ

Q1: What is the rated output capacity of the S8VK-C48024?

A1: It provides a single 24VDC output with a maximum power of 480W and a rated current of 20A.

Q2: What input voltages can it accept?

A2: It has a universal input, supporting 100-240VAC (85-264VAC range) and 90-350VDC.

Q3: Does it have built-in protective functions?

A3: Yes, it features automatic overload protection that activates when the output current exceeds 105% of the rated value.

Q4: Can it be used in a three-phase system?

A4: Yes, it can be connected to two lines of a three-phase system if the voltage between them is 240VAC or less and an external protector is added on the N line.

Q5: What are its key installation advantages?

A5: Its compact, space-saving design and flexible mounting brackets allow for easy installation in control panels.
