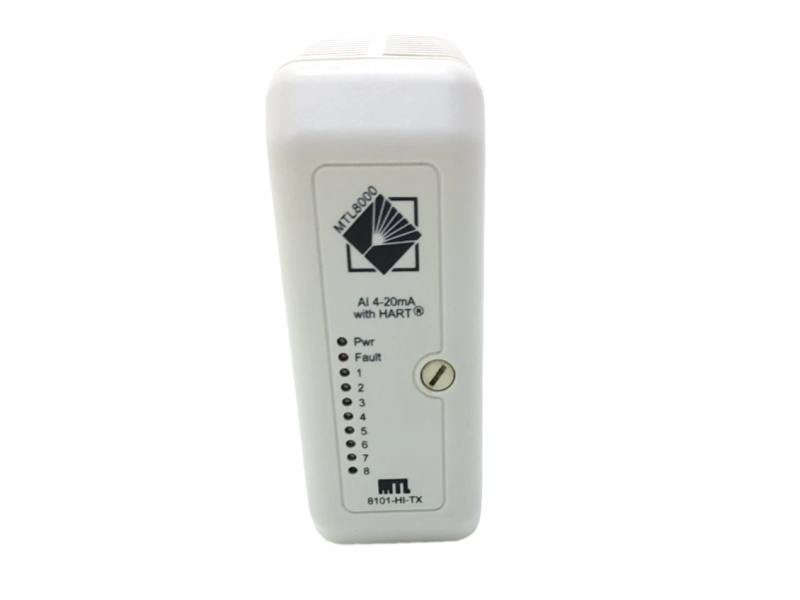

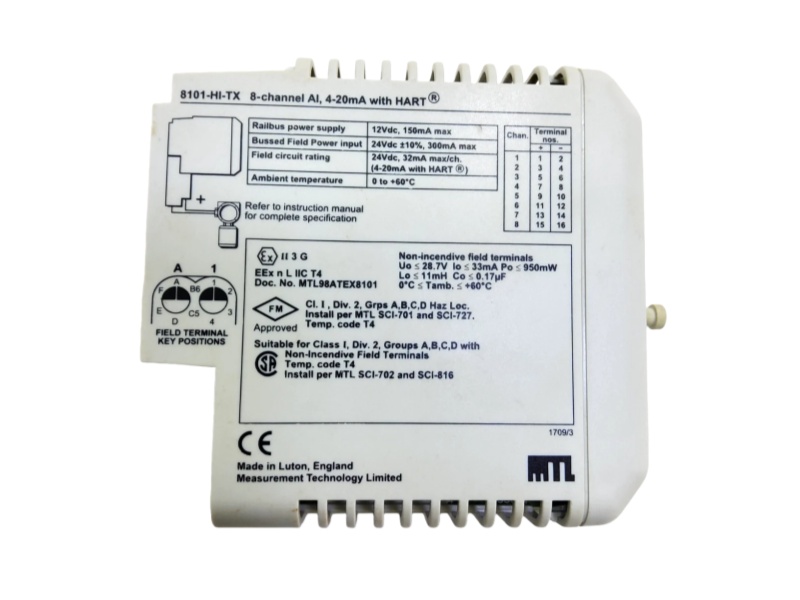

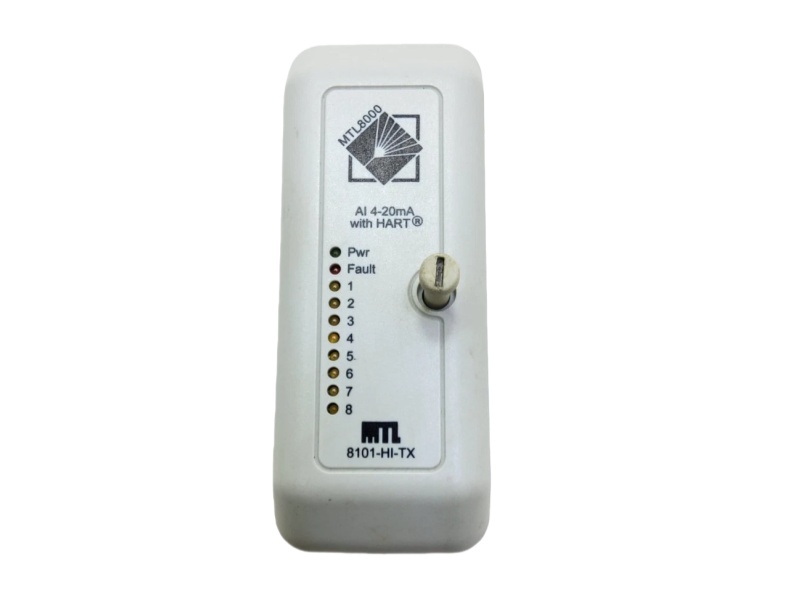

The Logic I/O Module 8101-HI-TX MTL is an 8-channel analog input module designed for high-integrity applications in hazardous areas. This interface module, the MTL Instruments Group 8101-HI-TX, features eight single-ended 4-20 mA input channels with HART communication capability, supporting both 2-wire and 4-wire transmitter configurations while maintaining non-incendive field protection. Its advanced design incorporates comprehensive line fault detection for open and short circuit conditions, ensuring immediate identification of field wiring problems.

A significant advantage of the Signal isolation controller MTL Insturments Group 8101-HI-TX is its exceptional measurement performance, delivering ±0.1% accuracy with 16-bit resolution and 0.05% repeatability across the operating temperature range. The module provides flexible configuration options including user-defined alarm setpoints with deadbands, input filtering, and failsafe action selection for each channel. With FM approval for non-incendive applications (Voc=28.7V, Isc=33mA), the MTL Analog Input 8101-HI-TX ensures safe operation in potentially explosive atmospheres while maintaining reliable signal integrity.

The module architecture of the ANALOG INPUT MODULE MTL 8101-HI-TX features 100V AC isolation between channels and the Railbus communication system, though channels themselves are not isolated from each other. This compact 42mm wide module demonstrates efficient power management, requiring only 100-150mA from the Railbus while supplying bussed 24V field power to connected transmitters. The responsive performance of the module includes maximum signal response times of 27ms for 4-20mA data and 0.75 seconds per channel for HART variable reporting.

In operational practice, the 8101-HI-TX MTL ANALOG INPUT MODULE delivers robust process monitoring with comprehensive diagnostic capabilities. The combination of intrinsic safety certification, high measurement accuracy, and HART compatibility makes the MTL Instruments Group 8101-HI-TX particularly valuable for critical process applications in oil and gas, chemical, and other hazardous industrial environments where reliable signal acquisition and equipment protection are paramount concerns.
