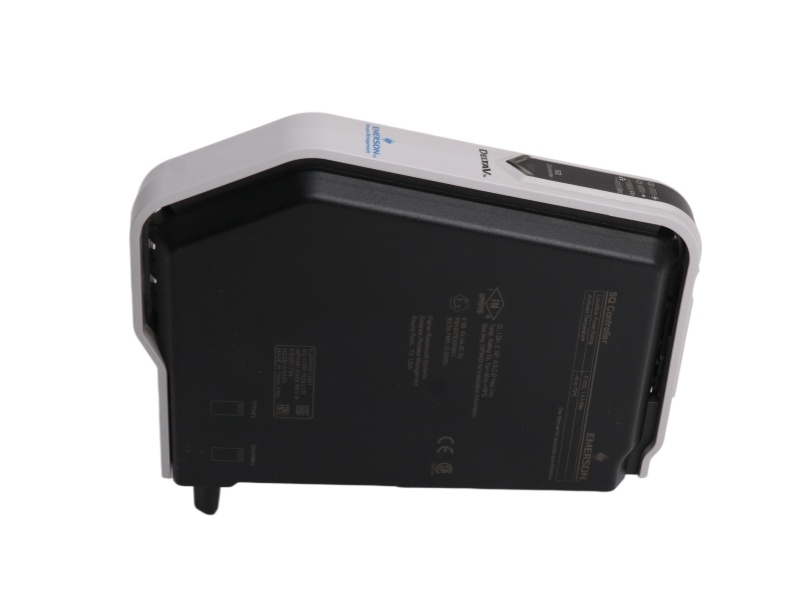

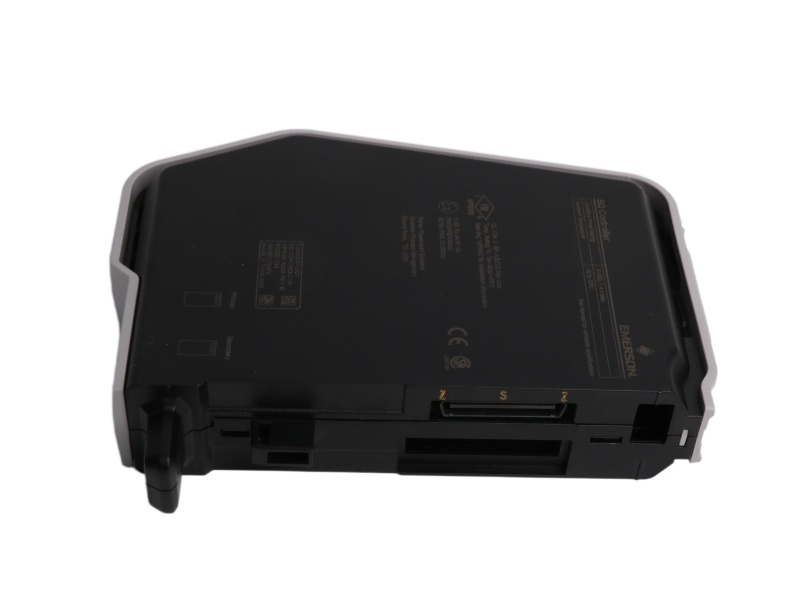

Features and Benefits

• Scalable Control Operations: Tailored specifically to deliver a compact, budget-friendly controller platform optimized for small-to-medium process installations.
• Electronic Marshalling Integration: Native interfacing with CHARM I/O Cards over redundant Ethernet infrastructure to distribute field processing loops.
• Screw-Free Cabinet Assembly: Intelligent enclosure physical footprints allow modules and I/O carriers to snap directly onto standard DIN rails without mounting screws.
• Hot-Swappable 1:1 Redundancy: Fully detects backup modules automatically with zero user configuration effort, providing high system availability.
• Advanced Logic Software Execution: Full software configuration runtime capabilities for high-level Batch software, Model Predictive Control, and Neural Networks.

System Compatibility & Alternatives

• System Compatibility:
  Fully compatible with Emerson DeltaV system software version v11.3.1 or later, standard DeltaV S-series Power/Controller Carriers, dedicated system power supplies, traditional local bus I/O cards, and CHARM I/O Cards (CIOC). It natively supports fieldbus technologies including FOUNDATION Fieldbus, Profibus DP, DeviceNet, AS-i protocols, and Ethernet I/O interfaces.
• Alternative Model & Differences:
  The immediate alternative system upgrade option is the high-capacity DeltaV SX Controller.
• The Difference: The KJ2005X1-SQ1 (SQ) controller is a scaled platform restricted to a maximum threshold of 750 Device Signal Tags (DST) and 3,200 SCADA tags, designed for small-to-medium control boundaries. The SX Controller delivers an expanded memory profile and execution processing scale tailored for large plant deployments, while sharing identical documentation patterns, I/O carrier footprints, and physical hardware form-factors to facilitate plug-and-play field upgrades.

Ordering Information

 Installation & Troubleshooting FAQ

Q1: What are the base system software requirements for deploying the KJ2005X1-SQ1 hardware?

A: The SQ Controller requires DeltaV core software version v11.3.1 or later loaded onto the engineering database workstation. Trying to commission or auto-sense the module on legacy versions will prevent the system database from recognizing the device profile.

Q2: How do I handle assigning node addresses and communication channels to a newly mounted module?

A: The unit uses automated plug-and-play detection. There are no DIP switches or manual physical jumpers to configure on the circuit board; simply snap the unit onto its carrier slot, connect the network lines, and use DeltaV Explorer to run the Auto-Sense function.

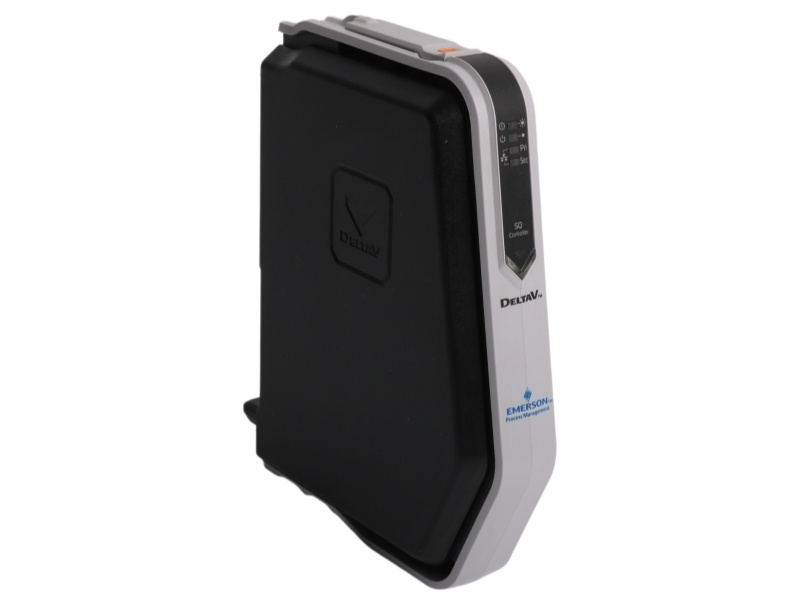

Q3: What actions should be taken if the front-panel indicator LED turns solid red?

A: A solid red indicator light alerts you to an active internal error status condition inside the controller processor. Access your diagnostic workstation environment to pull the enhanced memory handling and capacity alerts, verifying whether configuration boundary indexes or total user memory limitations (48 MB max) have been exceeded.

Q4: Can this controller be deployed safely inside remote field enclosures with high corrosive ratings?

A: Yes, the module housing and internal circuit traces are designed for harsh industrial production environments. The hardware features a standard conformal coating rated to handle ISA-S71.04-1985 Class G3 airborne contaminants and supports an operating temperature range from -40°C to 70°C.
